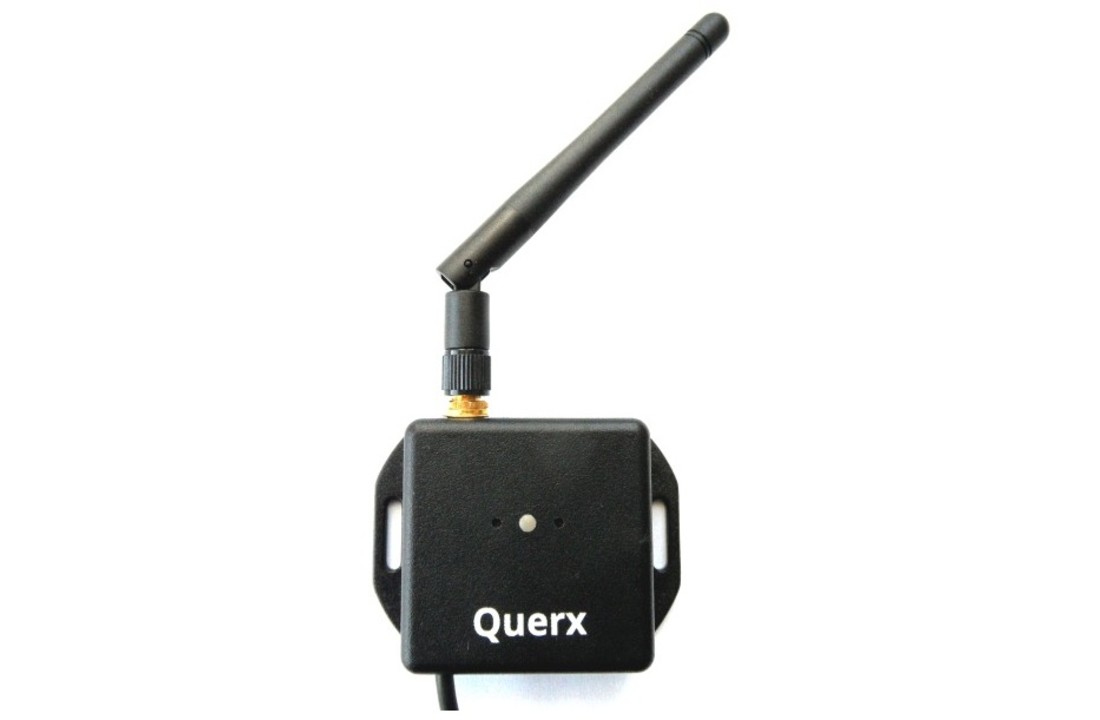

    Querx WLAN PT100 Set

    € 265,- Excl. btw We versturen binnen : 2 weken
    WLAN thermometer and data logger for any Pt100 temperature probes. Querx WLAN Pt100 is a smart network sensor, which provides currently measured and recorded values for temperature and humidity, as well as for the current dew-point over network inter...... Toon meer
    • Your reliable partner since 21 years
    • Shipping from our own warehouse !
    • Secure shipping in EU with DPD Traceable
    • Questions : Call +31-(0)85-065 6325

    Productomschrijving

    WLAN thermometer and data logger for any Pt100 temperature probes

    Querx WLAN Pt100 is a smart network sensor, which provides currently measured and recorded values for temperature and humidity, as well as for the current dew-point over network interfaces. Querx WLAN PT100 is a stand-alone device. No additional computer or software is required for operation.

    Querx WLAN Pt100 can be connected to your network either over RJ45 Ethernet jack or over the wireless interface. So it is suitable for a multitude of applications in the field of climate monitoring and data acquisition, where remote data access is needed, but no cable-bound Ethernet connection is available.

    Intuitive web interface

    Via web interface, you can access the recorded data as interactive chart. All data can be exported in the CSV and XML data format and so be imported to spreadsheet software or processed by individually developed solutions.

    Alerts on critical thresholds

    If Querx WLAN Pt100 measures critical values, it can send out alert notifications as encrypted email (StartTLS), SNMP trap and syslog message. The device can not only trigger alerts on values which are too high or too low, but also if temperature or humidity rise or drop too fast.

    Quick and easy configuration

    For configuration, you only need to connect the device to a network or your computer. You can directly access the user interface using any web browser. No further software is needed.

    Data logger with big capacity

    Querx WLAN PT1000 once a minute records maximum, minimum and average values, which have occurred since the last record . With a capacity of 4,000,000 entries, Querx WLAN PT100 can thus record data from a period of at least 7,5 years

    Multiple data access interfaces – countless fields of application

    Querx WLAN PT100 provides a multitude of interfaces for data access and M2M. Alerts can be transmitted via SNMP, E-Mail and Syslog. Measured values can be accessed via SNMP, Modbus/TCP, HTTP-API (JSON, XML and CSV). Additionally, the data can be sent to the IoT-clouds ThingsSpeak and Xively, which allows world-wide data access via web and app.

    On request: Additional DAkkS calibration certificates

    Querx WLAN PT100 can be shipped with an additional certificate by a DAkkS accredited calibration laboratory. Thus, the devices are suitable for use in areas where high requirements to accuracy, reliability and documentation need to be met, such as food hygiene, pharmacies or quality assurance in production industry.

    Hardware

    Unterstützt beliebige 2-, 3- und 4-Draht Pt100 Sensoren
    Messbereich: sensorabhängig, -200°C - +750°C
    Erweiterter Temperaturbereich für Industrieumgebungen
    10/100 MBit Ethernet-Schnittstelle
    Batteriegestützte Echtzeituhr
    Status-LED für die Anzeige von Alar
    Software

    Datenzugriff über Weboberfläche, App oder Cloud
    Alarme über verschlüsselte E-Mail (StartTLS), SNMP-Trap und Syslog
    Anwenderfreundliche Konfiguration mit DHCP, mDNS und Bonjour: Anschließen und im Browser aufrufen
    M2M-Schnittstellen für Industrie, IT und H

    Included in delivery

    Querx WLAN PT100
    Pt100-Testsensor
    WLAN Antenne
    Ethernet Kabel
    Micro-USB Kabel
    USB Steckernetzteil mit austauschbaren Netzsteckern für Großbritannien, Europa, USA und Australien
    CD mit Software und Dokumentation
