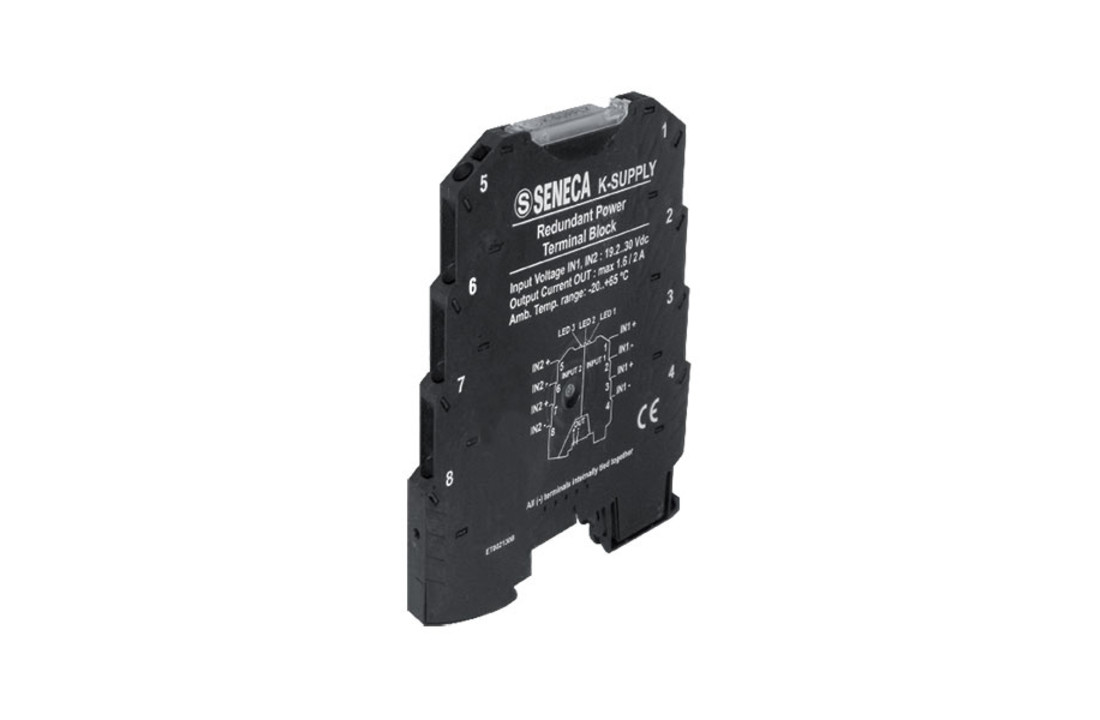

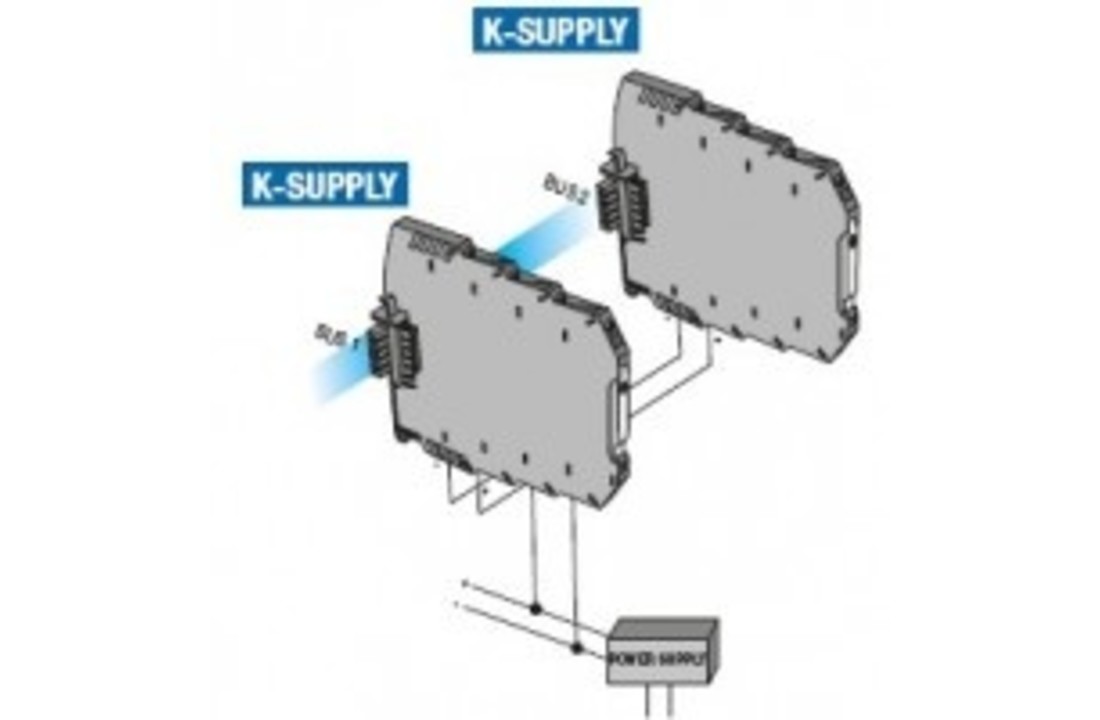

SUPPLY SYSTEM. With the exception of loop powered instruments, which aren’t bus powered, K Line signal conditioners can be powered in 3 different ways: by the springcage terminal block (24 Vdc direct from power supply) or by SMART SUPPLY system. SMART SUPPLY system is based on expandable KBUS connector. Up to 16 devices, the distribution of power supply is possible connecting a single device at voltage source, as whole consumption doesn’t exceed 400 mA. Over 16 and up to 75 devices, with maximum current consumption of 1,6 A (approx 21 mA per module), it’s needed K-SUPPLY module that gets overvoltages protections on-board.
