PIMZOTRONICS HT96 Temperatuur Display met NTC Sensor

Name: Herten PIMZOTRONICS HT96 Temperatuur Display met NTC Sensor
Brand: Herten
SKU: HT-96
Price: 38.00 EUR
Availability: InStock

Merk: Herten

Toon alle Temperatuur Paneelmeter

Vergelijk

€ 50,-

€ 38,-

PIMZOTRONICS HT96 Temperatuur Display met NTC Sensor

€50,-

€38,-Excl. btw We versturen binnen : 2 weken

Goedkope oplossing om temperaturen te meten van -50°C tot +99°C op het display. NTC Sensor (rubber ingekapseld inbegrepen) Voeding 230VAC/50Hz. Uitgerust met 1 x Relaisuitgang voor instelbaar alarm !... Toon meer

Reliable Service since 23 years
Shipping from our own warehouse !
Secure shipping in EU with DPD Traceable
Questions : Call +31-(0)85-065 6325

Productomschrijving

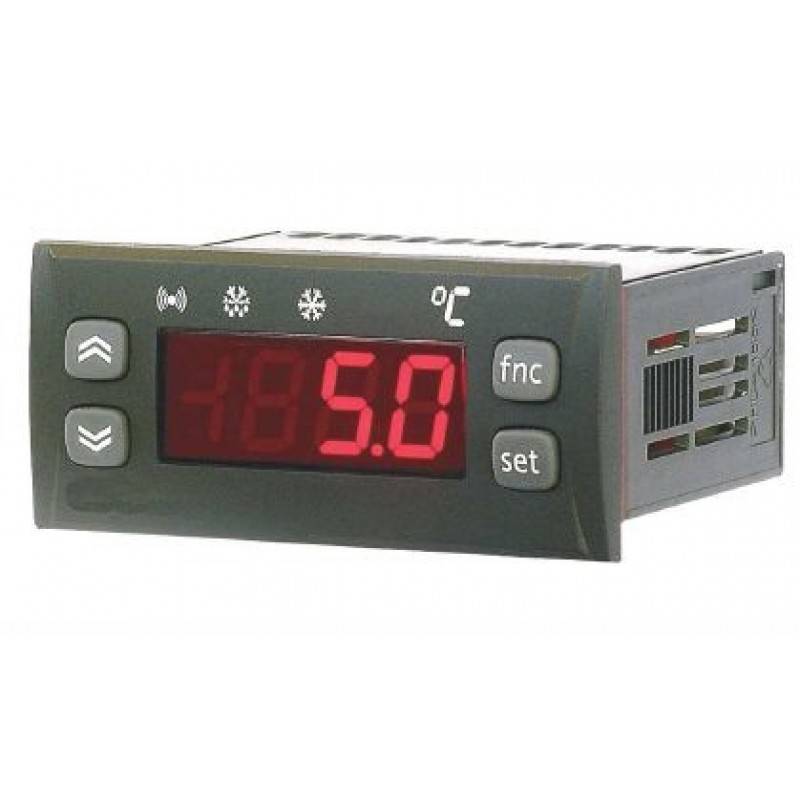

Low Cost solution to measure temperatures from -50°C till +99°C on display. NTC Sensor (rubber encapsulted included)
Power supply 230VAC/50Hz . Equipped with 1 x Relay output for adjustable alarm !

Specifications :

Frontal Panel protection: IP65
Container: Plastic body in resin type PC+ABS UL94 V-0, inspection window in polycarbonate
Buttons in thermoplastic resin
Dimensions frontal panel 74 x 32 mm, depth 60 mm
Installation on panel, with template 71x29mm (+/-0,2/-0,1 mm)
Ambient temperature: -5ºC +55ºC
Storage temperature: -30ºC +85ºC
Operating enviroment humidity: 10...90% RH (non condensing)
Storage enviroment humidity: 10...90% RH (non condensing)
Viewing range: -50ºC +99ºC on 2 digit + mark display
Analog inputs: one PTC or NTC input (selectable through parameter)

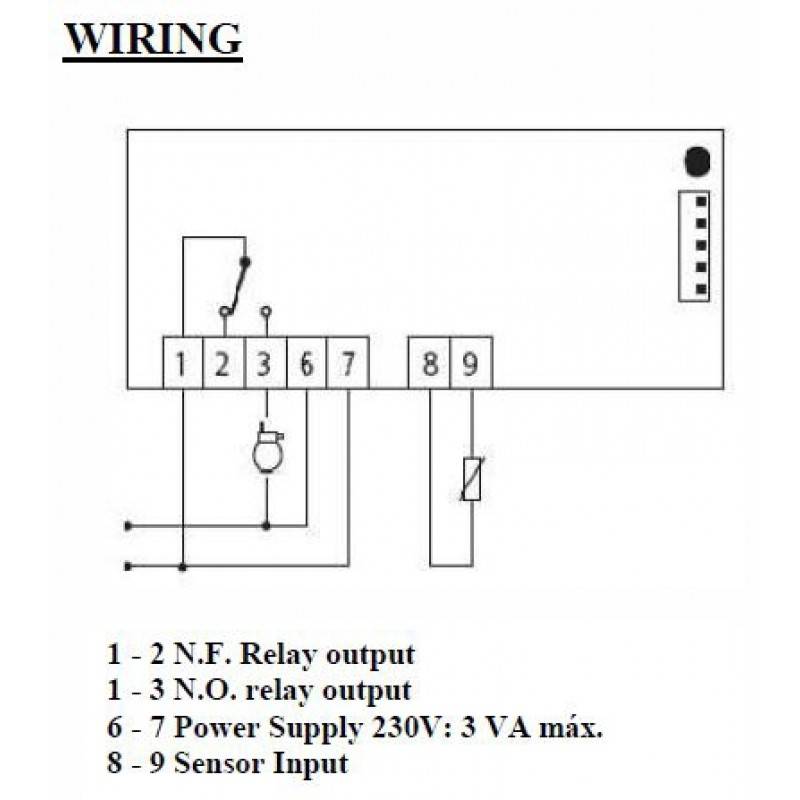

Digital outputs: one Relay output, SPDT 15A 1Hp 250Vac
Precision: 0,5% better than full scale
Resolution: 1ºC
Consumption: 3 VA max
Power supply: 230Vac ±10% 50/60 Hz.
