    9823GP

    € 69,- Excl. btw Product is op voorraad : We versturen direct !
    9823GP - 4 x Relay, 4 x DI, 2x DI-Counter, 4x DO Frequency/PWM
    Embedded Web server, UPNP , DDNS , Telnet , SNMP. Modbus to Modbus TCP gateway , NTP server , SMTP server
    Support most of ethernet protocal : DHCP,UDP/TCP/IP,HTTP... Toon meer
    • Your reliable partner since 21 years
    • Shipping from our own warehouse !
    • Secure shipping in EU with DPD Traceable
    • Questions : Call +31-(0)85-065 6325

    Productomschrijving

    Download Datasheet Download PDF

    Do not forget to buy your power adapter and Din-Rail bracket below !

    9823GP

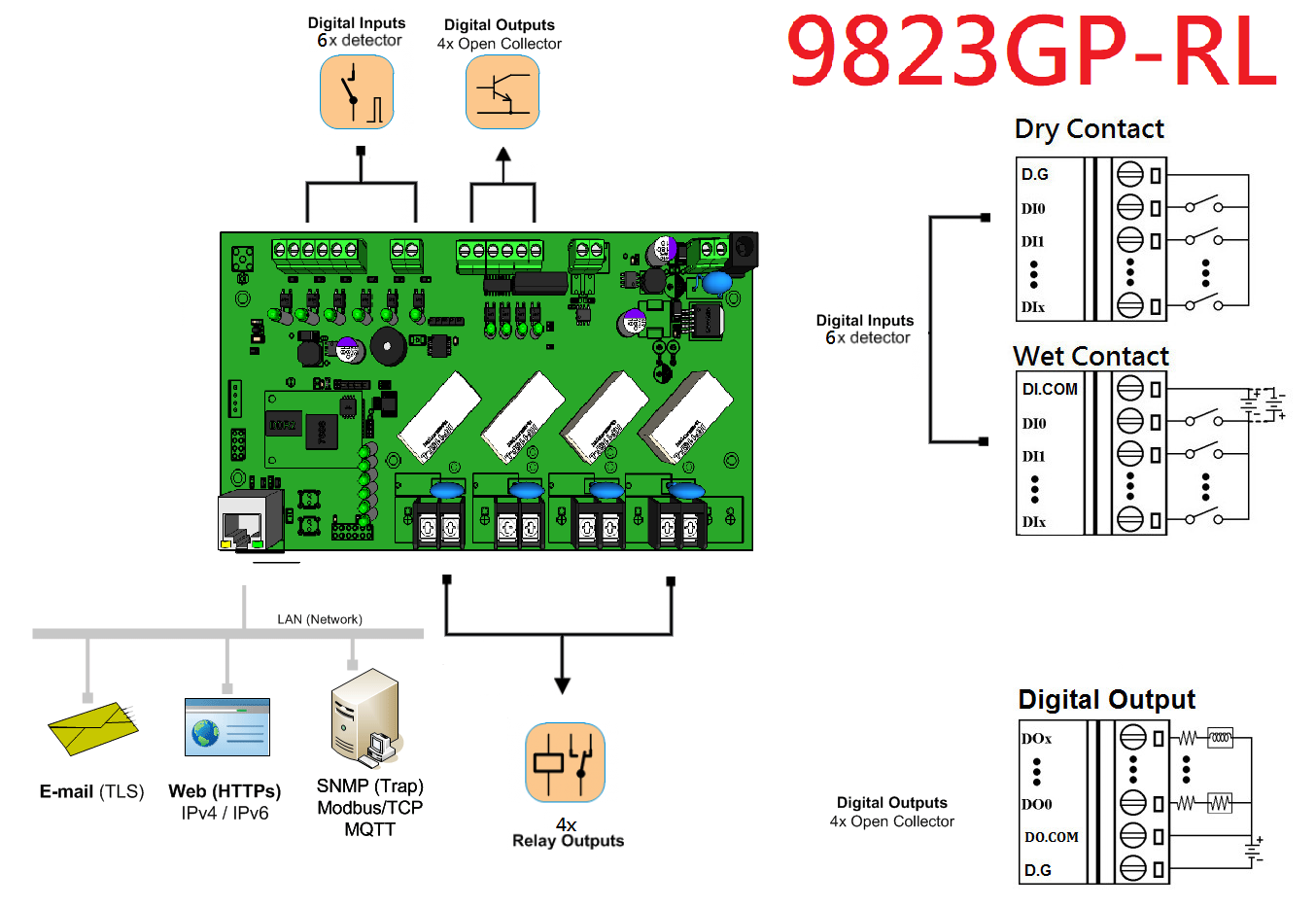

    4 x Relay, 4 x DI, 2x DI-Counter, 4x DO Frequency/PWM
    Embedded Web server, UPNP , DDNS , Telnet , SNMP. Modbus to Modbus TCP gateway , NTP server , SMTP server. Support most of ethernet protocal : DHCP,UDP/TCP/IP,HTTP

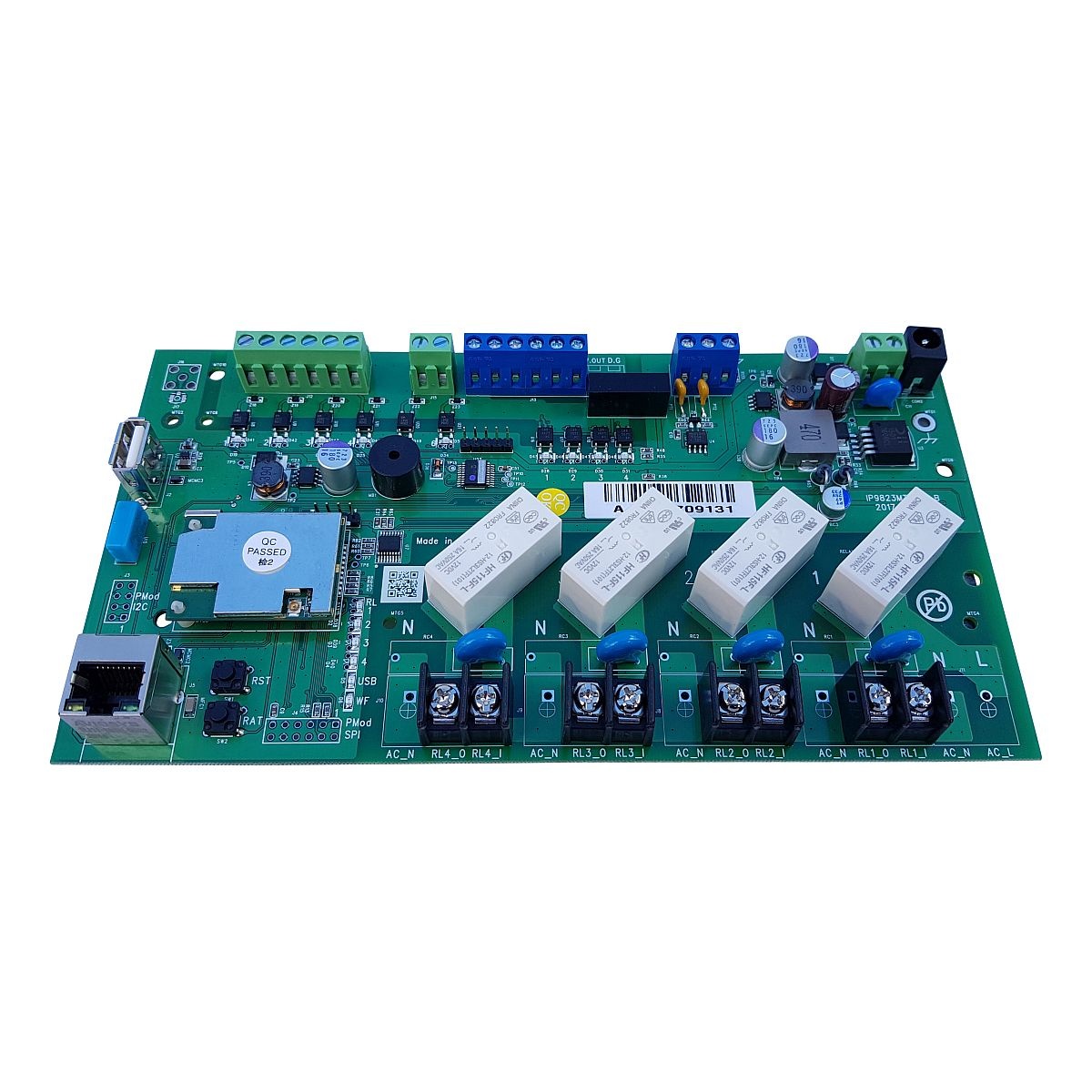

    The IP9823GP-RL is a cost effective solution for data acquisition, monitoring and control through network. The module provide IO for data acquisition, Relay for power control module and embedded webserver for a wide application. IP9823 Series also provides an excellent web server and complete network and industry standard protocols. It is easily integrated with existing system and play a high performance network control

    Features

    • Support HTTP, HTTPS/SSL, TCP/IP, PPPOE, DHCP, DDNS, SNMP v3, SMTP, NTP, TLS
    • Support Cloud Connect : AWS IOT, GOOGLE Cloud IoT, Microsoft AZURE IOT
    • Support Telnet/SSH.

    Specifications :

    • Dimensions : 200 x 107 x 20mm, Din Rail Stand : 203 x 122 x 50mm
    • Power input : 11V - 30VDC
    • Maximum current per outlet : 16A
    • Relay Type : Magnetic Latching Relay
    • Digital Output : 4 sets DO
    • Single Output maximum pull-down current : 300mA
    • Maximum total pull-down current : 500mA
    • Digital Input : 6 sets DI, Low (0-3VDC) / High (5-50VDC)
    • Interface RS485,LED,USB 2.0, HW Reset button, HW Restart button
    • Operation Temperature : -10 to 70°C
    • Storage Temperature : -20 to 80°C
    • Network : RJ-45 10/100Mb Ethernet Port
    • USB 2.0 Port
