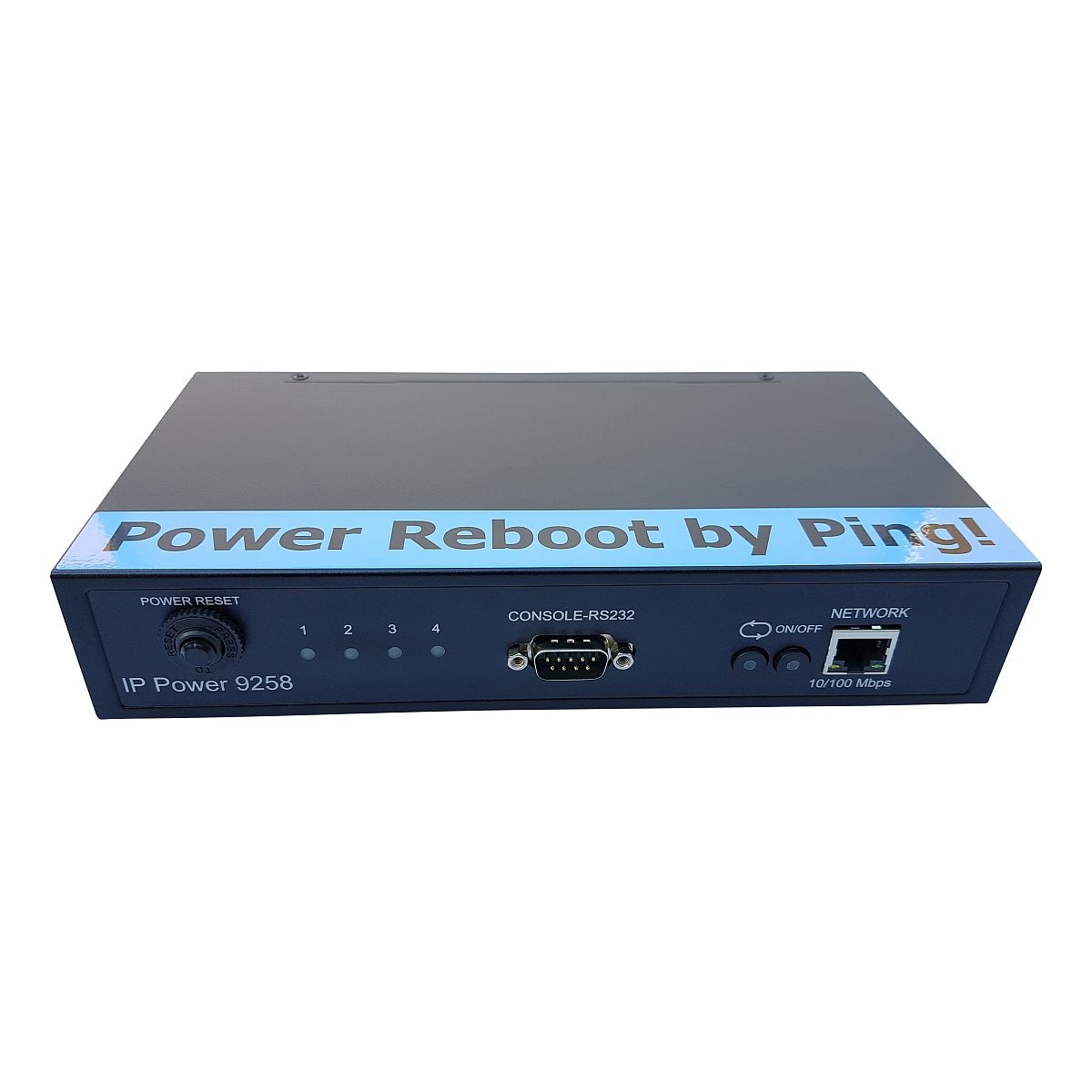

Aviosys IP Power 9258S-PING Network Power Controller.Network power controller with 4 power outlet's. Controlled from any location via network (WAN/LAN) or Internet via web browser. Supply maximum up to 7A/250VAC or 10A/120VAC Power by international standard IEC320 Inlet/Outlet. Network server reboot, Web and Wap control.
Sometimes, when your not around, your devices/servers need to be turned on, or sometimes they just need a fresh boot!
Don't waste your time on this anymore and let the IP Power 9258 do the job !
What is PING ?

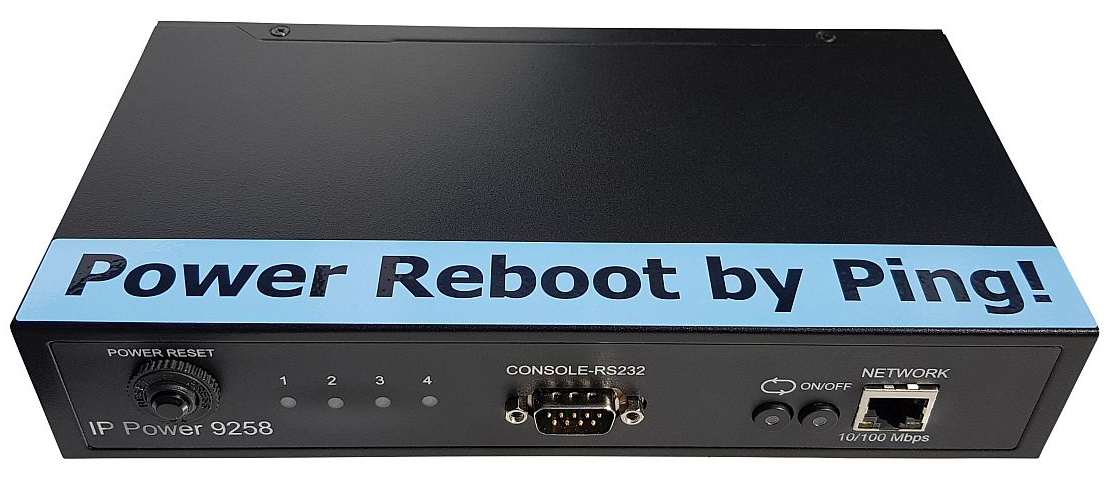

This is the "9258S-PING", it can be controlled webbased, but also performs automatic tasks by PING commands !The new "Aviosys 9258S-PING" can ping automatically to other IP-devices (server, computers, etc), totally 4 pcs that are connected. When no reply from the devices, the 9258S-PING will automatically restart the corresponding power port for that device. Note : This function can of course only be used with devices that can be ‘pinged’.Ideal to reset your ADSL modem/router automatically (Watchdog function), or or to automatically reset servers that are crashed.
What is it ?
The IP 9258S-PING can be controlled over TCP/IP network using generic Ethernet or Web browser without any software skill. Each independent outlet can be switched ON, OFF or Booted (OFF- delay-ON). IP9258 can supply maximum up to 7A/250VAC or 10A/120VAC Power. Uses internationally standard IEC 320 Inlet/Outlet connectors that make it easy to use anywhere in the world using locally available PC cables and adapters.
- Network Server reboot. This unit can do remote control to reboot power from PC or Server at a remote site, so no need to send someone to get the job done at site. Saves time and manpower !
- Control via integrated webbrowser
- Control via special PING commands
- Network AC Power Control. This unit can control and operate the High Power switch on / off via Internet / Ethernet, even the Consumer Electronic 110V / 220 V Products
- Timer Power Switch. This unit can pre-set the time schedule to turn device power On/Off thru Internet / Ethernet
- WAP Mobile Phone Control. Use your GPRS cell phone via WAP to control devises
- Open Code Customization, Source Code provided. You can fit commands in your own system application software
- SDK - System Development Toolkit provided
- Webpage ( http.) Command - User can modify his own Webpage to command the IP Power 9258 with VB/VC
- Firmware always up to date via Internet update

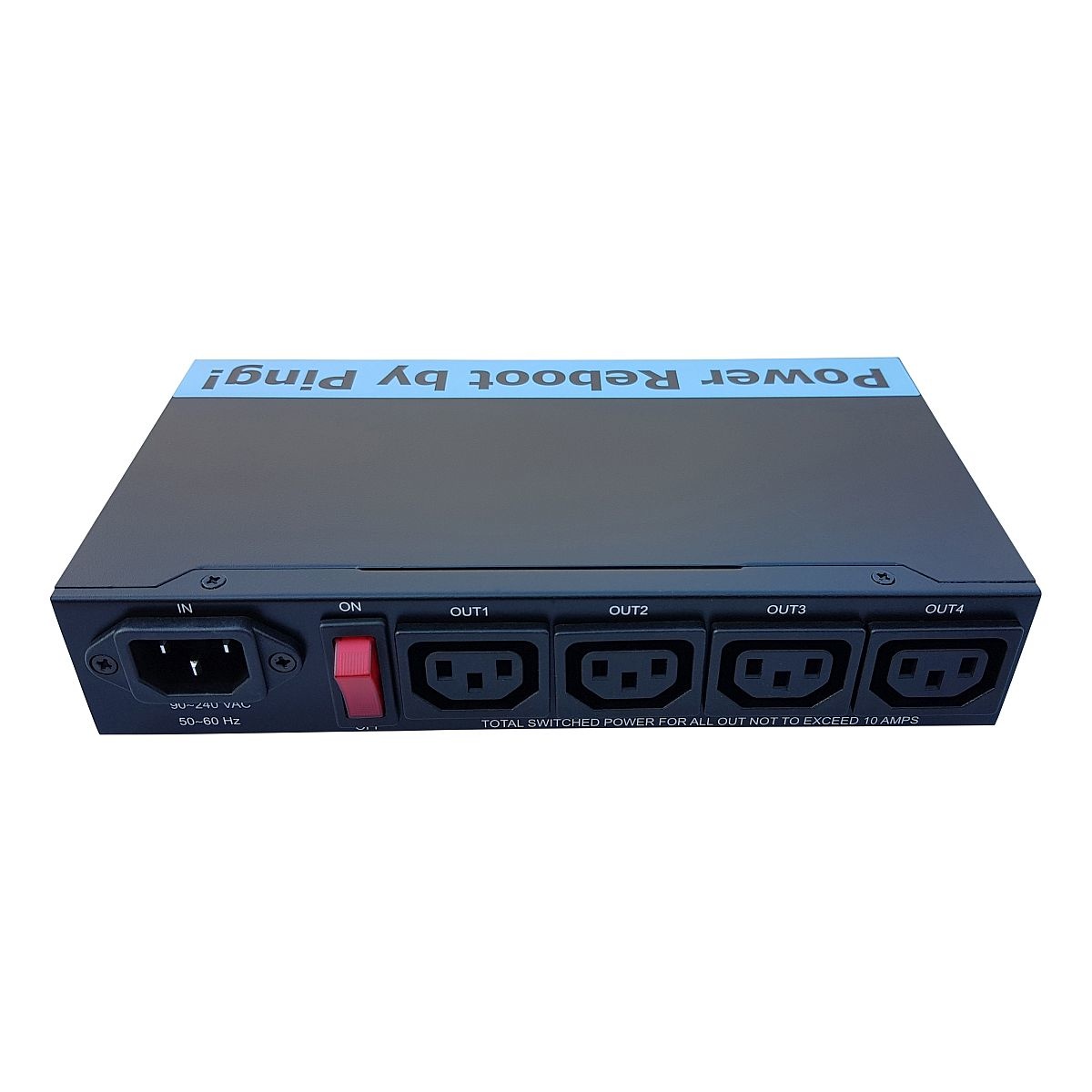

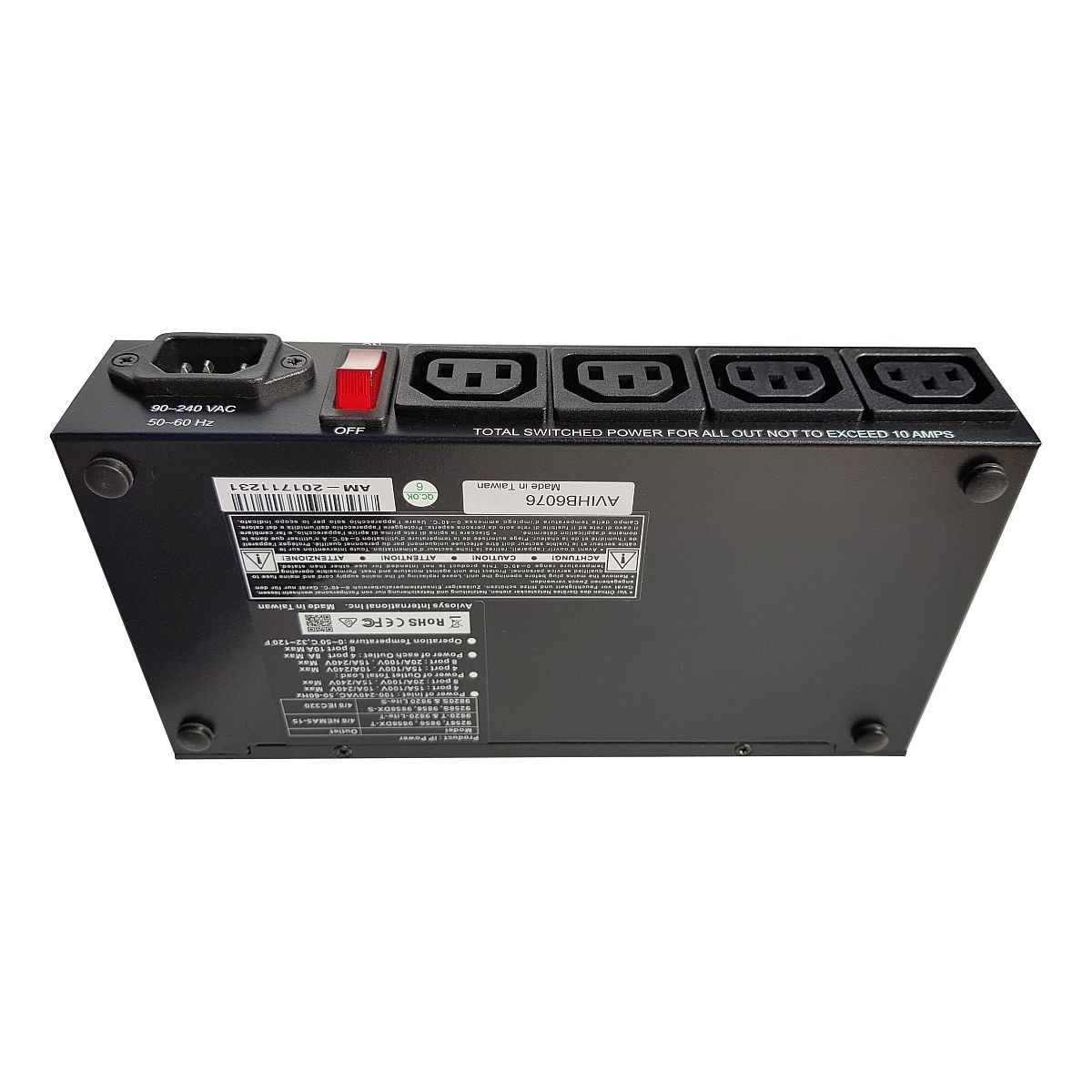

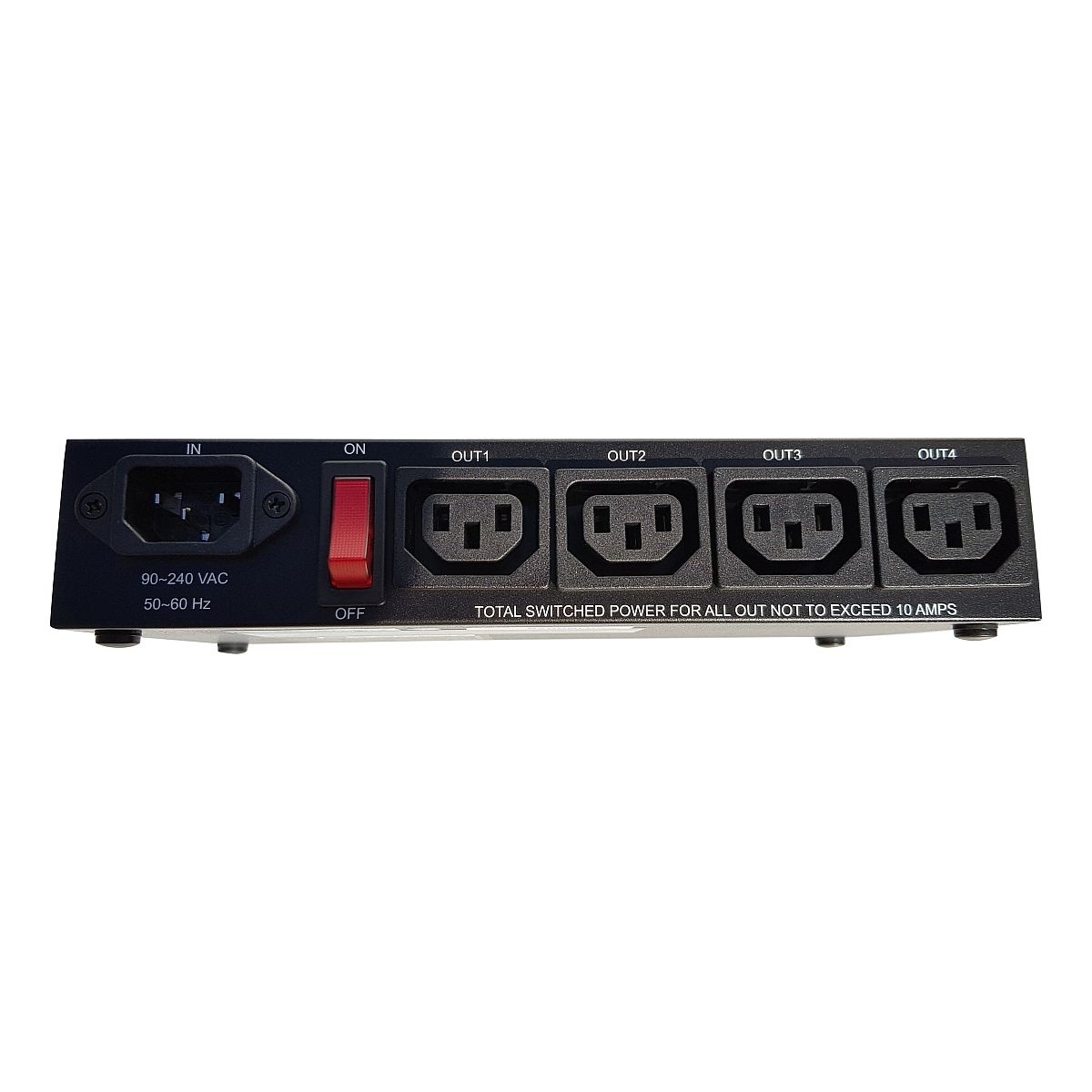

- EC320 Connector design, 1 Male Inlet (power in) and 4 Female Power Outlet's (Power output switch via Ethernet)
- Installs with standard PC power cords
- Total power control up to 10A/120VAC, 10A/240VAC, 7A/250VAC

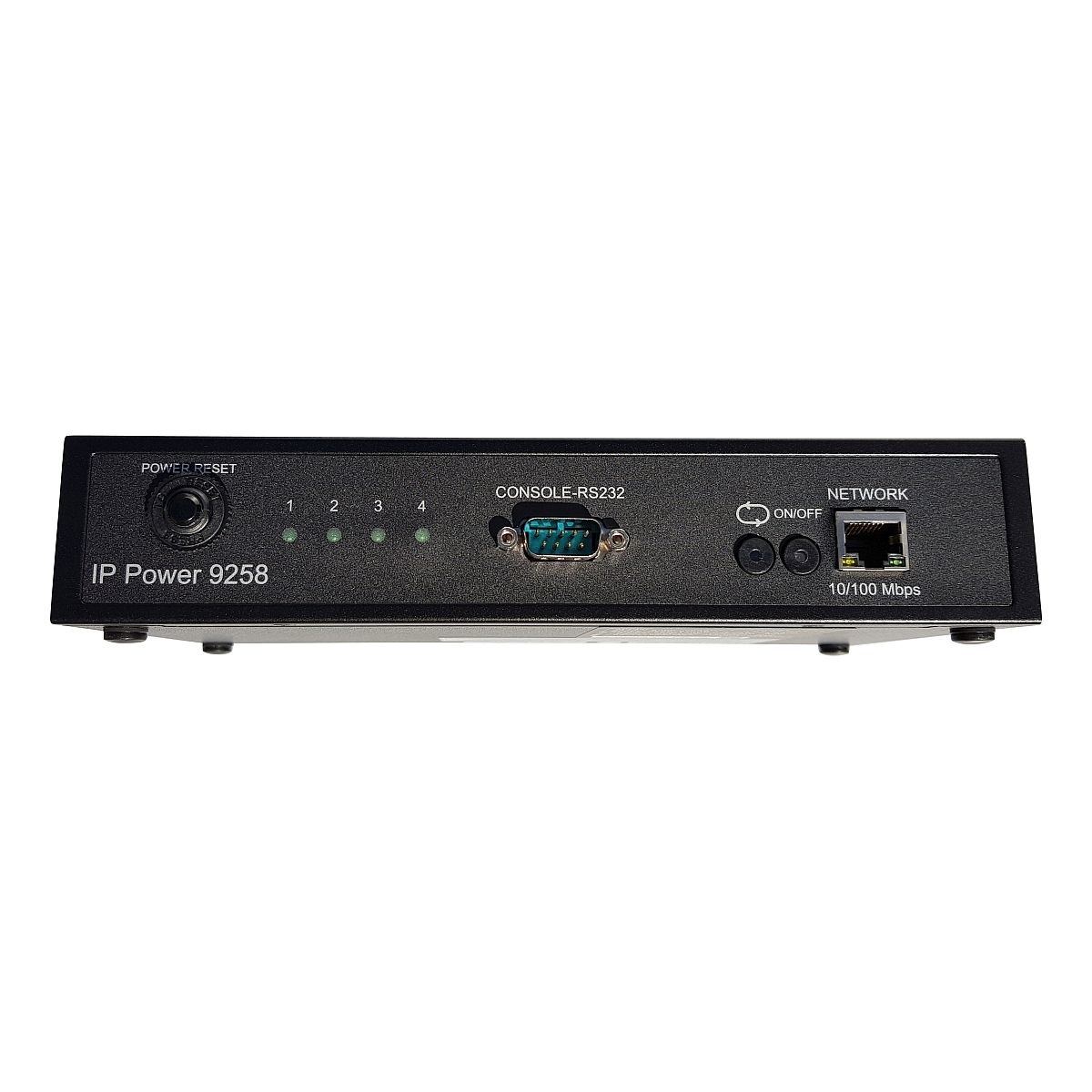

- AC Power switch with power On/Off indication with light
- 4 pcs LED power switch status indicator
- 1 pce RJ45 port for Ethernet control
- 1 pce RS232 port for UART control
- Dimension 220mm x 120mm x 45mm, metal case,
- Operating Temperature: 0°C to +55°C; Controller dissipates 5 watts max
- Web server design, can be used through the Ethernet or Internet network without computer
- Security password identify to be sure system stability
- Timer and scheduler design, power can be booted by program
- Online update firmware available if necessary
Retail Package Includes
- IP Power 9258-PING control box
- Quick installation Guide
- IP 9212 software CD
- AC Power Cord
