    IHH500-Elite Digital Hand Held Display

    €2.998,-Excl. btw We versturen binnen : 4-6 werkdagen
    IHH500 Elite , Intelligent Digital Handheld Display , mV/V , VDC , Current and Encoder Measurement , Analog Output , Alarm Relays , TEDS and USB Output - Accessory Kit (FSH03583) With All Mating Connectors and SENSIT Software Included... Toon meer
    • B2B Industrial Supplier since 1999
    • Shipping from our own warehouse in NL !
    • Shipping in EU with DPD Traceable
    • Reliable SSL & Secure Payments

    Productomschrijving

    Download Datasheet Download PDF

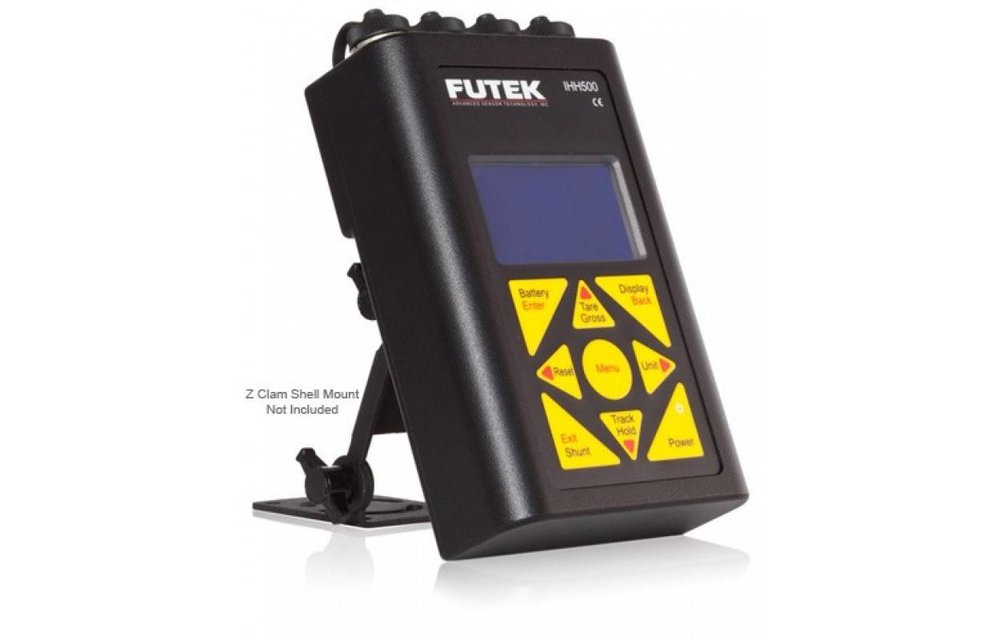

    The IHH500 Hand Held Portable Digital Display is FUTEK’s solution that can be easily integrated to work with Load Cells, Torque Sensors and Pressure Sensors. The IHH500 has an input range of up to +/-500 mV/V. Beside the mV/V input, device accepts amplified output sensors in range of ± 12 VDC or up to 30 mA. It also has two individual relays and two analog voltage and analog current outputs. This device provides additional 24 VDC / 5VDC as the power supply for sensors with built-in amplifier. FUTEK’s Hand Held display also supports TEDS which makes it easy to switch between different sensors. A high speed/ low noise/ high resolution (24 bits) ADC is integrated into the device to make it suitable for high accuracy measurements. The IHH500 uses rechargeable battery with a long life time. The IHH500 also has the capability of displaying values onto a computer through a USB link.

    Attention: IHH500-Elite is not just a IHH5000-Pro with a storage case. The "IHH500 Elite" version has the capability to measure Angle / Speed ​​/ Power for FUTEK rotary torque sensors while Pro does not support this option.

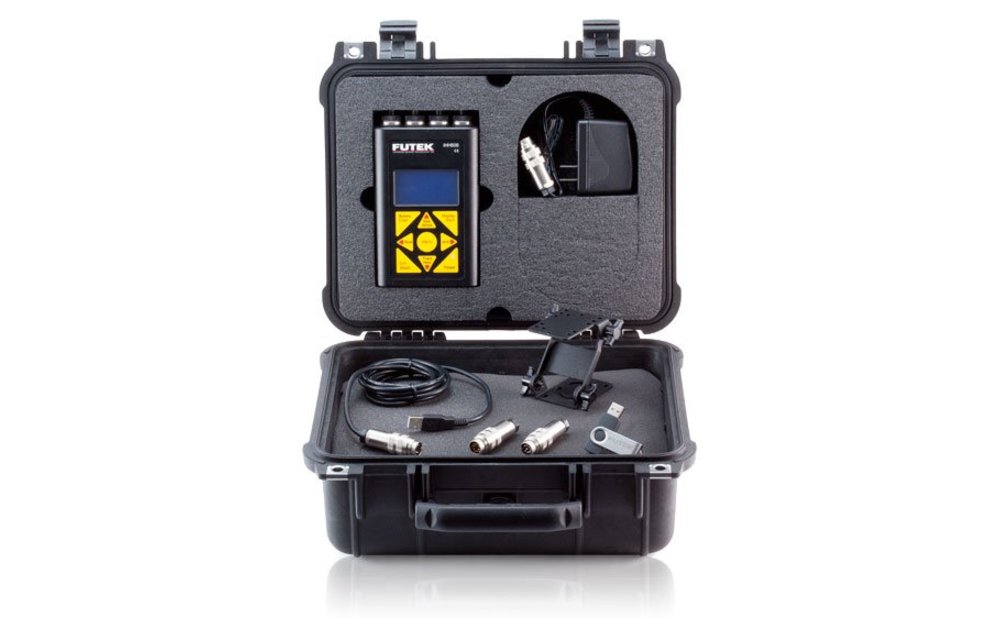

    The Elite Version does include the IHH500 Accessory Kit; Pelican Case, SENSIT Software, USB Cable, Support Bracket, Analog / Alarm Mating Connector, Sensor Mating Connector.



    Product Highlights:

    • 24-bit internal resolution
    • Up to 20 bits (± 500 000 counts) noise-free resolution
    • 5 to 4800 sample per second selectable rate
    • High accuracy (± 0.001%)
    • Low non-linearity (± 0.001%)
    • Input range up to ± 500mV / V (Strain Gauge)
    • Input range of ± 12VDC (Amplified inputs)
    • Input range up to 30 mA (Amplified inputs)
    • Minimum bridge resistance: 30 ohm
    • USB Output
    • ASCII Stream
    • Precision 5.000V Excitation
    • 24V / 5V Output
    • Analog Voltage and Current Output
    • Selectable Voltage and Current Configuration
    • Two individual Relay Output
    • 21K Point Data Logging
    • Speed ​​/ Angle / Power Measurement
    • Bridge resistance measurement
    • Keypad options (Track / Hold - Peak / Valley Reset - Unit - Tare / Gross-Shunt - Battery - Display Menu)
    • First peak / valley First feature
    • User friendly navigation menu
    • Shunt Calibration
    • Universal Unit Conversion
    • 14 Sensor Profile Storage
    • Supports IEEE145.4 standard (TEDS template 30 and 33)
    • 16 x 4 character LCD with selectable height (0119 [4.7] and 0323 [7.12])
    • 6 digit display plus sign and decimal point or 7 digit plus sign depending on application
    • LCD Auto Power-off
    • Brightness / Contrast Adjustment
    • Rechargeable Battery Operated
    • Battery life up to 30 hours (depending on the load)
    • Battery lifetime monitoring
    • Weight: 1.85 lb (840 g)
    • Dimension: 4 "(101 mm) x 1.7" (43 mm) x 6 "(153 mm) - (LXWXH)



    Specificaties

    Artikelnummer
    IHH500 Elite FSH03460
    SKU
    IHH500 Elite FSH03460
    IHH500-Elite Digital Hand Held Display
    € 2.998,-
    Excl. btw
    IHH500-Elite Digital Hand Held Display
    IHH500 Elite FSH03460
    We versturen binnen : 4-6 werkdagen
