- B2B Industrial Supplier since 1999
- Shipping from our own warehouse in NL !
- Shipping in EU with DPD Traceable
- Reliable SSL & Secure Payments
LLB390 , 1 lb , Ultra Thin Load Button w/ Mounting , RoHS Compliant, 1000 Ohm , Material - 17-4 PH S.S. , 34 Awg 4 Conductor Braided Shielded Polyester Cable , 10 ft Long

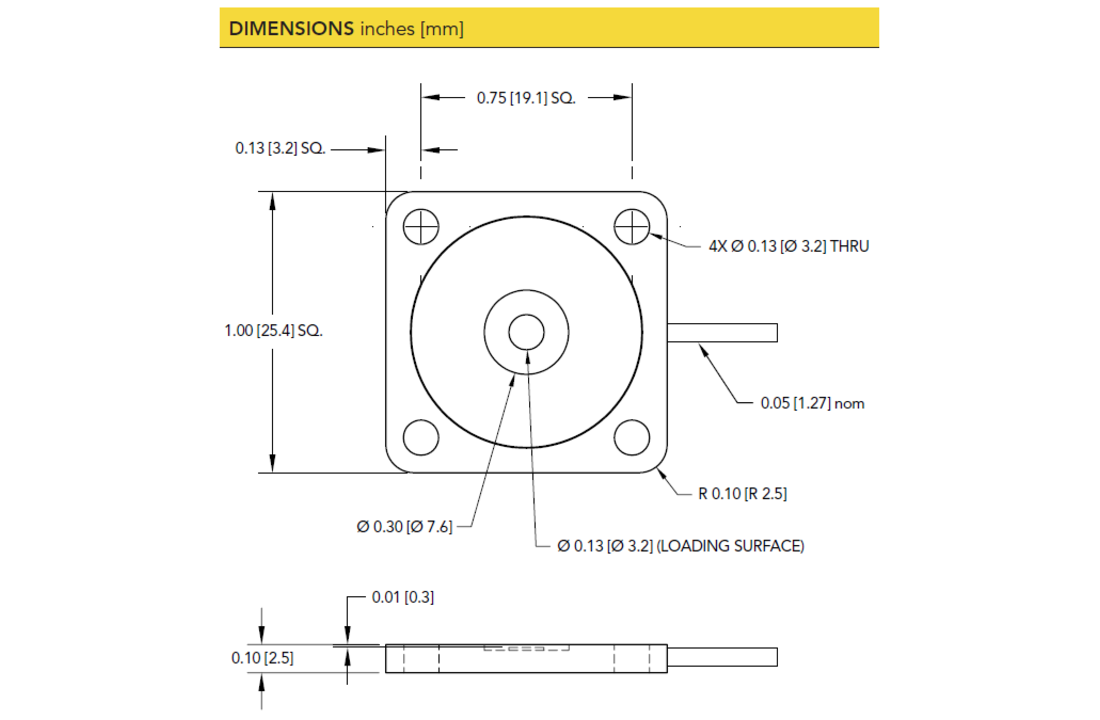

Model LLB390 is a Thin Load Button with Mounting Bracket is built for Press, or Inline compression applications. The standard LLB390 Thin Load Button has a very robust construction available in 300 Series Stainless Steel, with a 1.0” length and height, 0.25” width and a 10 feet long 29 AWG 4 conductor Spiral Shielded Silicone cable.
The Thin Load Button has Nonlinearity of ±1.0% and Deflection of 0.002” nominal. The LLB390 Thin Load Button is manufactured in the USA and uses metal foil strain gauge technology.
