BPS4000 Triple Output Bench Top Power Supply

€165,-

€79,-Excl. btw Product is op voorraad : We versturen binnen 1-2 dagen

Convel BPS4000 Triple Output Bench Top Power Supply, 4 to 6VDC, 12 to 15VDC and –12 to –15 VDC... Toon meer

B2B Industrial Supplier since 1999
Shipping from our own warehouse in NL !
Shipping in EU with DPD Traceable
Reliable SSL & Secure Payments

Productomschrijving

Download Datasheet

Ouderwetse keiharde kwaliteit met transformatoren !

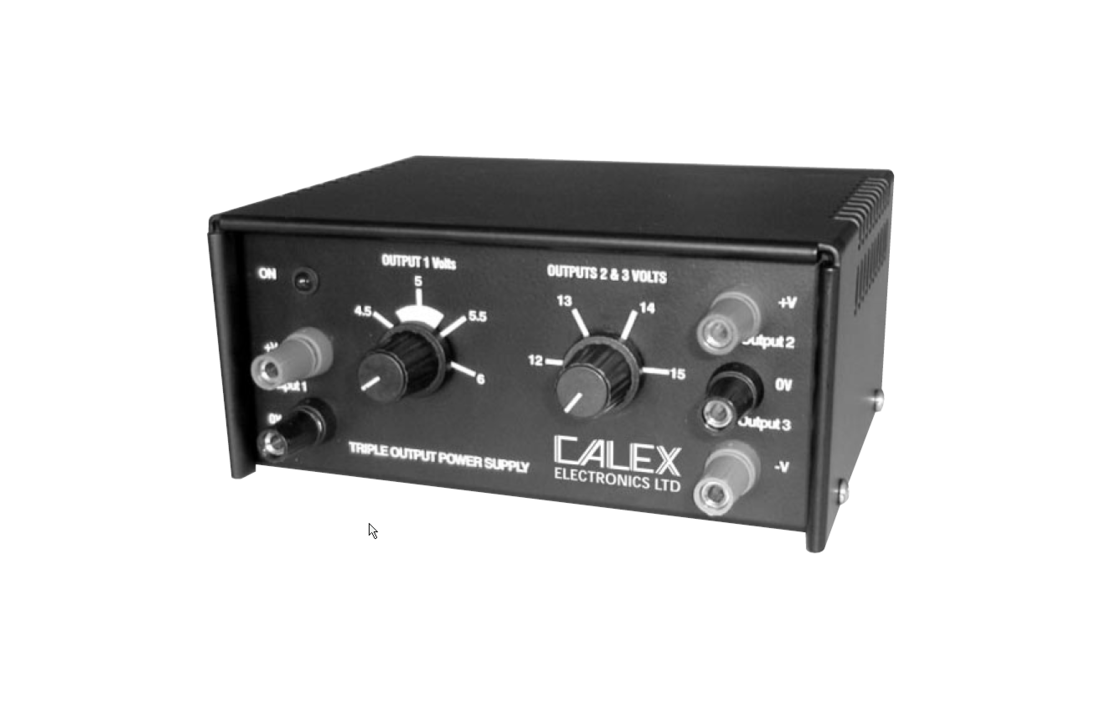

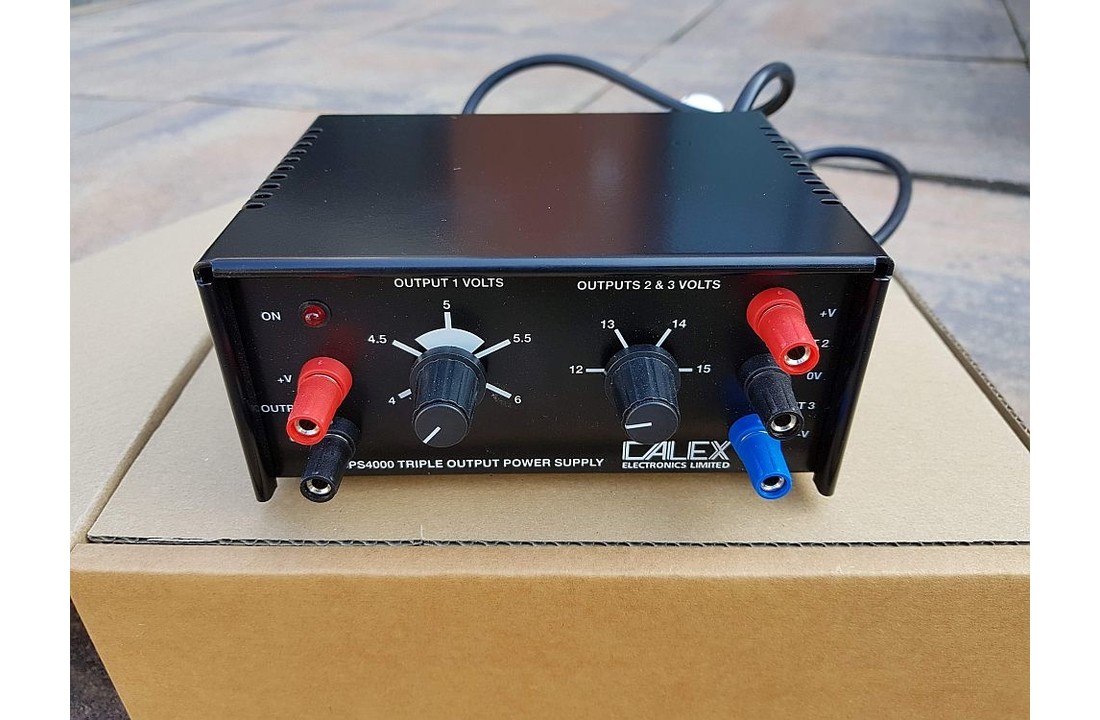

Convel BPS4000 Triple Output Bench Top Power Supply

4 to 6VDC
12 to 15VDC and
–12 to –15 VDC

The BPS4000 provides three fully stabilised and smoothed variable DC power sources. The voltages can be adjusted by rotating graduated controls on the front panel. All three outputs are short circuit and reverse connection protected. Additional protection is provided by current limiting and an internal thermal shut-down mechanism. A 20mm x 5mm mains fuse accessible from the rear panel provides further protection.

GENERAL SPECIFICATIONS

Brand : Calex Electronics Limited
Mains Input 240VAC (±7.5%) 50Hz via 1 metre 3-core cable, on/off switch and 20mm x 5mm mains fuse rated 0.5A
Power-on Indication LED on front panel
DC Output 1 : 4 to 6V, adjustable by front panel control. Maximum current 0.5A. On this output the indicated area on the front panel is for T.T.L. applications and provides a reminder of the voltage range (4.75 to 5.25)
DC Outputs 2 & 3 : +12 to 15V and –12 to 15V. The two outputs share a common 0V, are adjusted simultaneously by a single front panel control and are isolated from output. 1. Maximum, current 0.5A.
Protection : All 3 outputs have an internal current limit of approximately 1A for overload protection.
Load Regulation : Typically 0.5% (all outputs)
Ripple and Noise : Typically 5mV rms (all outputs)
Ambient Temp Range : 0°C to 35°C
Storage Temp Range : -10°C to 80°C
Termination : For use with 4mm wander plugs or as a binding post for wire connection.
Dimensions : (h x w x d) 76 x 160 x 138mm
Weight : 1.5kg
Fitted with EU Schuko Power Connector
