    IAA300 - Analog Strain Gauge Amplifier with Differential Output

    € 1.500,-
    € 1.425,- Excl. btw We versturen binnen : 4-6 werkdagen
    IAA300 , Ultra Low Noise Signal Conditioning Differential Strain Gauge Voltage Amplifier , For Full Bridge , +/-5 VDC , +/-10 VDC , Up to 50 kHz Bandwidth , Screw Terminal Connectors , Red Powder Coated , Integrated DIN Clip... Toon meer
    • Your reliable partner since 21 years
    • Shipping from our own warehouse !
    • Secure shipping in EU with DPD Traceable
    • Questions : Call +31-(0)85-065 6325

    Productomschrijving

    Download Datasheet Download PDF

    Loadcell Amplifier, Ultra Low Noise, High Speed 50kHz, output ±10V (Wheatstone Bridge)

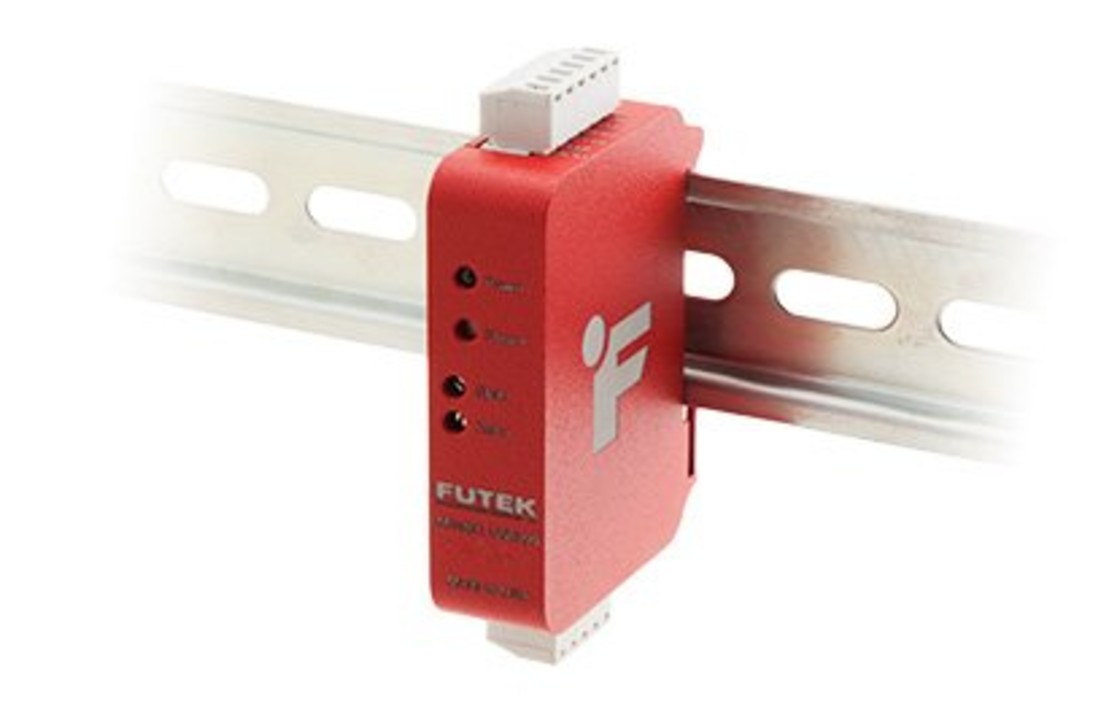

    The IAA300 Differential Strain Gauge Amplifier is FUTEK’s brand new general purpose amplifier solution for in-line amplification of any full bridge strain gauge type sensor with mV/V range output. As our fastest amplifier, the IAA300 features up to 50 kHz bandwidth. The new model combines precision and ease of integration. The IAA300 features an aluminum housing with an integrated DIN clip designed for industrial environment applications.

    Features :

    • Differential Input, Differential Output
    • Ultra low noise output
    • Up to 50 kHz bandwidth
    • ± 5 or ± 10 VDC Outputs
    • Bridge Excitation: 5 or 10 VDC (DIP Switch)
    • Ranges: 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 4.0, 10.0 mV/V (DIP Switch)
    • 256 Selectable Shunt Combinations: 30kΩ, 43.7kΩ, 60.4kΩ, 87.6kΩ, 100kΩ, 150kΩ, 300kΩ, 432kΩ (DIP Switch)
    • 5 Selectable Bandwidths (DIP Switch)
    • Externally Accessible Shunt Cal Activation Button
    • Internal Span and Offset Potentiometers
    • Sensor Polarity Reversal DIP Switch
