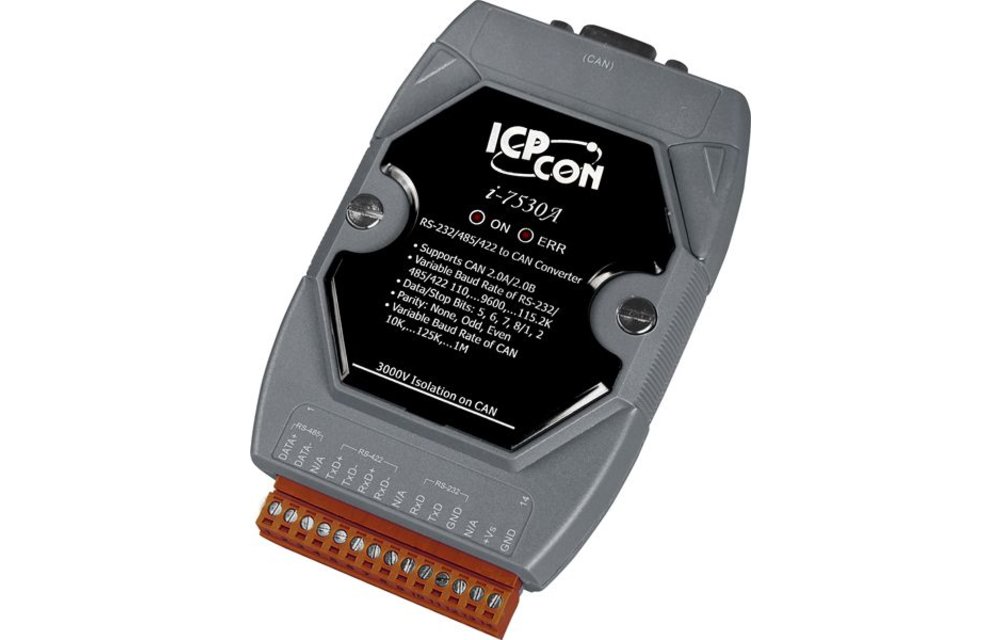

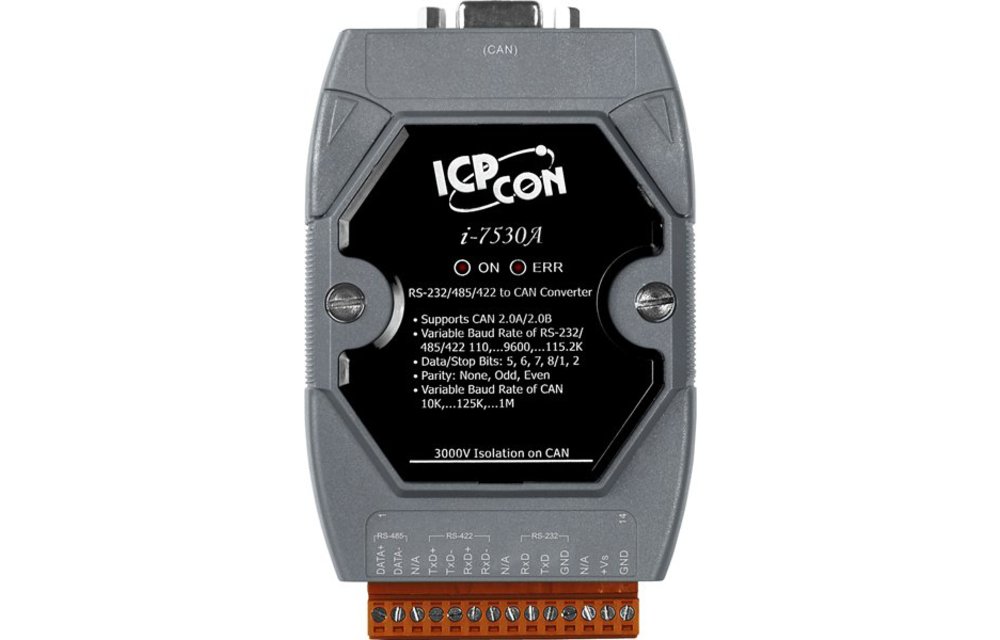

I-7530A-G-CR I-7530A-G-CR Intelligent RS-232/485/422 to CAN converter (RoHS)
Converter/RS-232/485/422 to CAN

Download Datasheet

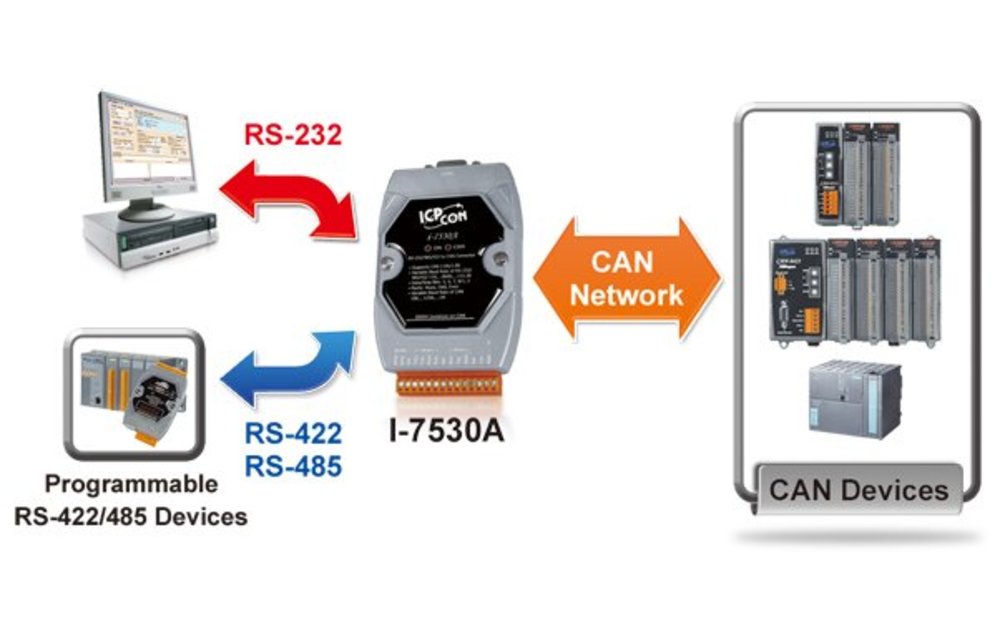

The I-7530A is designed to unleash the power of CAN bus via RS-232/485/422 communication
method. It accurately converts messages between CAN and RS-232/485/422 networks. This module
let you communicate with CAN devices easily from any PC or devices with RS-232/485/422
interface. The programmable RS-232/485/422 device (For example: PC, PLC or PAC) can use the
serial port to connect to the CAN network via the I-7530A.

Compatible with CAN specification 2.0A and 2.0B
Fully compatible with ISO 11898-2 standard
Support various baud rate from 10 kbps to 1 Mbps
Jumper for 120 Ω terminator resistor
Software configurable CAN and RS-232/RS-422/
RS-485 communication parameters
1000 frames in CAN received buffer, 900 frames in
RS-232/RS-422/RS-485 received buffer
Watchdog inside

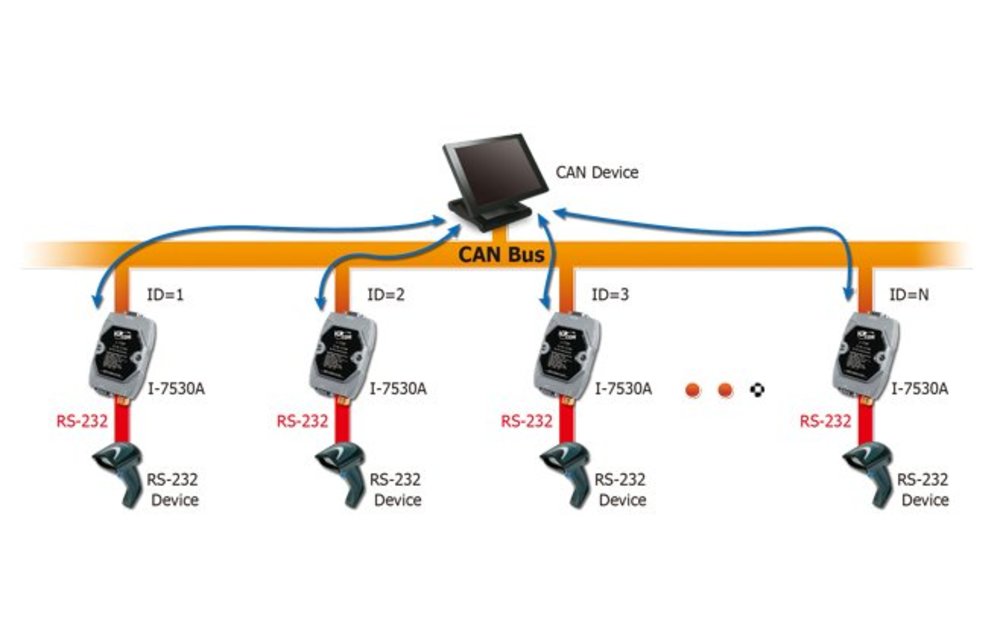

Provide the transparent communication between the
RS-232/RS-485/RS-422 devices via CAN bus
Enable different RS-232/RS-485/RS-422 devices into
an individual group in CAN bus network
(Full-duplex communication mode of RS-232/
RS-422 devices is not supported)
CAN bus baud rate configuration
CAN acceptance filter configuration
CAN 2.0A or 2.0B specific selection
Serial COM baud rate and data bit setting
Serial COM command error response selection
Utility tool for transmitting / receiving CAN messages
