    LabJack U6

    Merk: LabJack
    €410,-
    €387,86Excl. btw Product is op voorraad : We versturen direct !
    Labjack U6, 16+ bits of resolution, Wide input range, Amazing price performace ratio... Toon meer
    • B2B Industrial Supplier since 1999
    • Shipping from our own warehouse in NL !
    • Shipping in EU with DPD Traceable
    • Reliable SSL & Secure Payments

    Productomschrijving

    Download Datasheet Download PDF

    LabJack U6 USB DAQ

    Features / Specifications :

    • 14 Analog Inputs (16-18+ Bits Depending on Speed)
    • U6-Pro Adds 24-bit Low-Speed ADC for 22-Bit Effective Resolution
    • Single-Ended Inputs (14) or Differential Inputs (7)
    • Instrumentation Amplifier Inputs
    • Software Programmable Gains of x1, x10, and x100
    • Analog Input Ranges of ±10, ±1, and ±0.1 Volts
    • Built-In CJC Temperature Sensor
    • 2 Fixed Current Outputs (200/10 μA)
    • 2 Analog Outputs (12-Bit, ~0-5 Volts)
    • 20 Digital I/O
    • Up to 2 Counters (32 Bits Each)
    • Up to 4 Timers (Pulse Timing, PWM Output, Quadrature Input, ...)
    • Supports SPI, I2C, and Asynchronous Serial Protocols (Master Only)
    • Supports Software or Hardware Timed Acquisition
    • Maximum Input Stream Rate of 50 kHz (Depending on Resolution)
    • Capable of Command/Response Times Less Than 1 Millisecond
    • Built-In Screw Terminals for Some Signals
    • USB 2.0/1.1 Full Speed Interface
    • Powered by USB Cable
    • Drivers Available for Windows, Linux and Mac.
    • Examples Available for C/C++, VB, LabVIEW, Python, and More

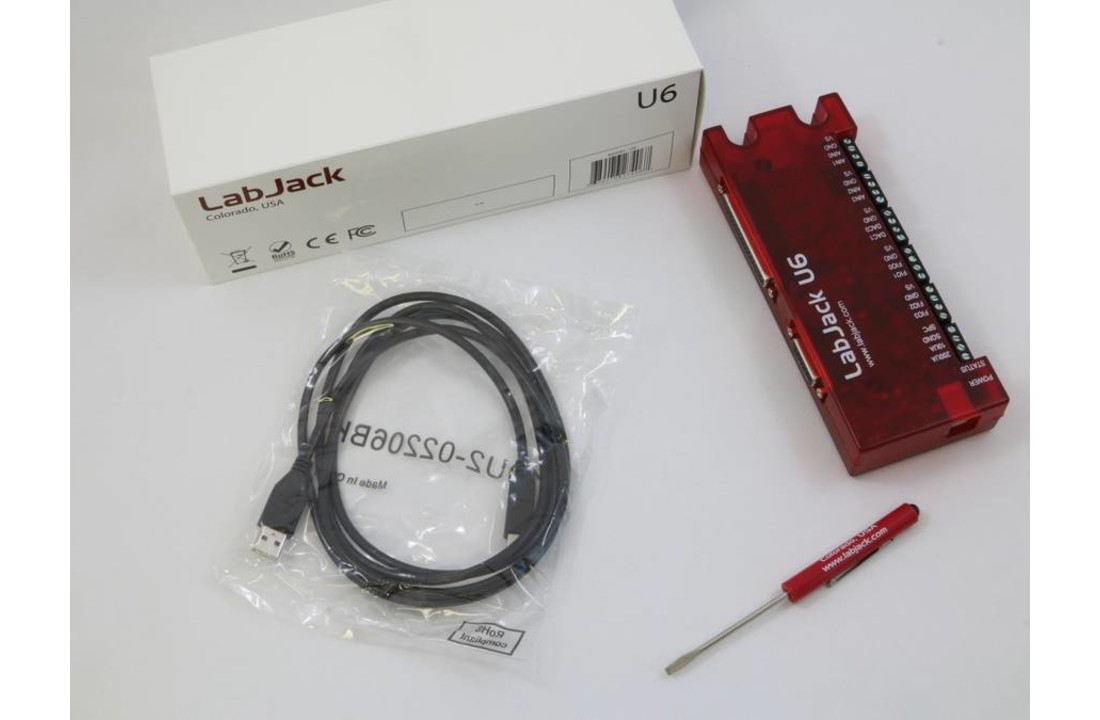

    • Includes USB Cable and Screwdriver
    • Free Firmware Upgrades
    • Money Back Guarantee
    • Enclosure Size Approximately 3" x 7" x 1" (75mm x 185mm x 30mm)
    • Rated for Industrial Temperature Range (-40 to +85 Degrees C)
