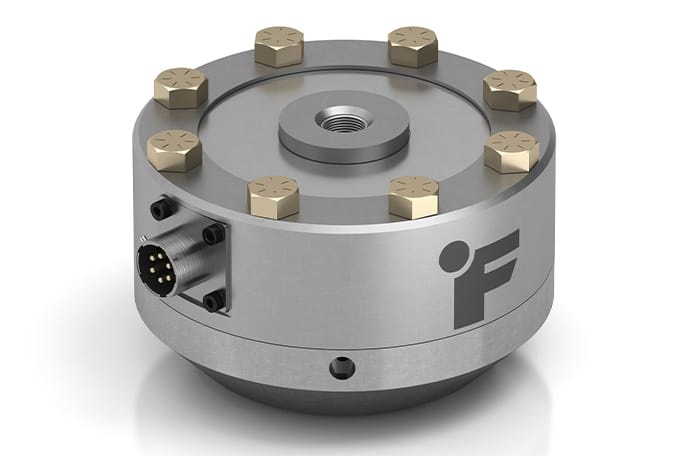

      LCF455 Universal Pancake Load Cell with Tension Base

      € 1.450,-
      € 1.377,50 Excl. btw Email of bel ons voor de levertijd
      LCF455 , Low Profile Universal Pancake With Tension Base , RoHS Compliant, Material - 2024-T4 , M16x2-Thread , 6 Pin Bendix Receptacle, PT02E-10-6P... Toon meer
      • Reliable Partner ! Already 20 years at your service
      • Shipping from our own warehouse in The Netherlands
      • Secure shipping in EU with DHL Europlus
      • Questions : Call +31-(0)85-065 6325

      Productomschrijving

      Download Datasheet Download PDF

      Model LCF455 is a Pancake Load Cell (Tension Base) designed for tension and compression applications. The low profile design offsets most off-axis loads making the “pancake” type a very popular selection. The LCF455 Pancake Load Cell (Tension Base) is comparable to the LCF450 but this model comes with a tension base, making it suitable for Inline applications on Actuators or Threaded Assemblies. The Pancake Load Cell (Tension Base) has a very robust construction available in Anodized Aluminum for lower capacities (500 lb – 2,000 lb) and 17-4 Stainless Steel for higher capacities (300 lbs and 5,000 lbs -10,000 lbs). You will also find options for Metric Threads, Fatigue Rating and Amplified Version readily available.

      The Pancake Load Cell (Tension Base) uses metal foil strain gauge technology offering excellent accuracy. It has Nonlinearity of ±0.1% and Deflection of 0.002” to 0.005” nominal. The standard LCF455 Pancake Load Cell (Tension Base) is manufactured in US.

      Features

      • Low profile design
      • For use in both tension and compression
      • Utilizes metal foil strain gauge technology
      • Highly resistant to off-axis loading

      This sensor needs a connection cable, see related products.
