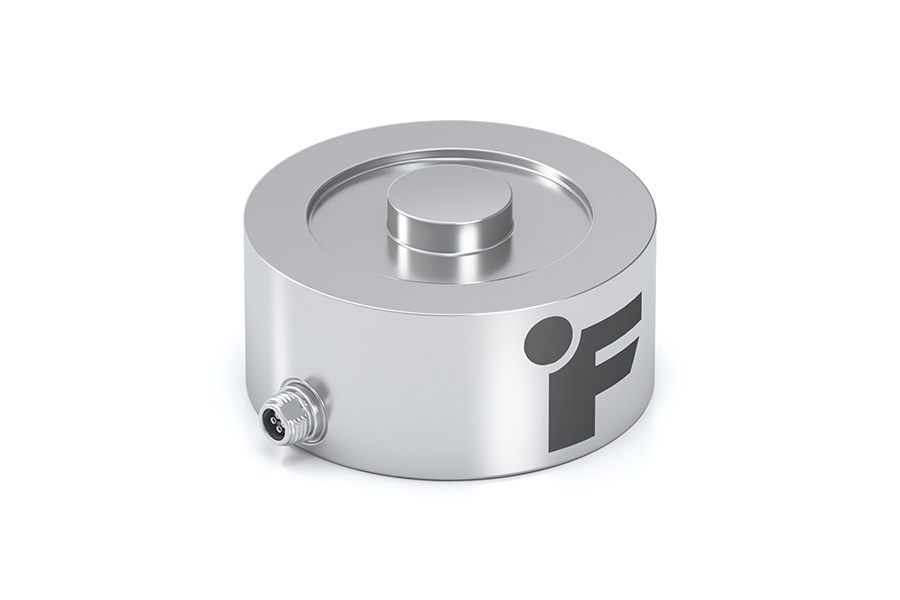

LLB500 High Capacity Load Button with Threaded/Tapped Holes

Name: FUTEK LLB500 High Capacity Load Button with Threaded/Tapped Holes
Brand: FUTEK
SKU: FSH04092 - 15Klb (66720N)
Price: 807.50 EUR
Availability: InStock

Merk: FUTEK

Toon alle Kracht & Moment

Vergelijk

€ 850,-

€ 807,50

LLB500 High Capacity Load Button with Threaded/Tapped Holes

€ 850,-

€ 807,50 Excl. btw Email of bel ons voor de levertijd

LLB500, Load Button Load Cell , RoHS Compliant, Bottom #6-32 Tapped Holes , Material - 17-4 PH S.S. , 24 Awg 4 Conductor Braided Shielded PVC Cable , 10 ft Long... Toon meer

Reliable Partner ! Already 20 years at your service
Shipping from our own warehouse in The Netherlands
Secure shipping in EU with DHL Europlus
Questions : Call +31-(0)85-065 6325

Productomschrijving

Download Datasheet

Model LLB500 is a Load Button Load Cell with Threaded Mounting Holes built for Press, or Inline compression applications. The standard LLB500 Load Button Load Cell model has a very robust construction available in 17-4 Stainless Steel, with a 2.0” outside diameter and a 10 feet long 24 AWG 4 conductor shielded Teflon cable. You will also find options for external matched output readily available.

Although Load Button Load Cells are traditionally not known for their high accuracy, FUTEK engineers have dispelled this concept by continuously improving the accuracy of this product. The Load Button Load Cell offers high accuracy. It has Nonlinearity of ±0.5% and Deflection of 0.003” nominal. The LLB500 Load Button Load Cell is manufactured in the USA and uses metal foil strain gauge technology.

Features
