    Pt100/4-20mA, Class A, G1/2, M12 Temperature Transmitter

    Merk: PIMZOS
    € 68,- Excl. btw Levertijd: 4 weken
    Pt100/4-20mA, Class A, G1/2, M12 Temperature Transmitter... Toon meer
    • Reliable Partner ! Already 20 years at your service
    • Shipping from our own warehouse in The Netherlands
    • Secure shipping in EU with DHL Europlus
    • Questions : Call +31-(0)85-065 6325

    Productomschrijving

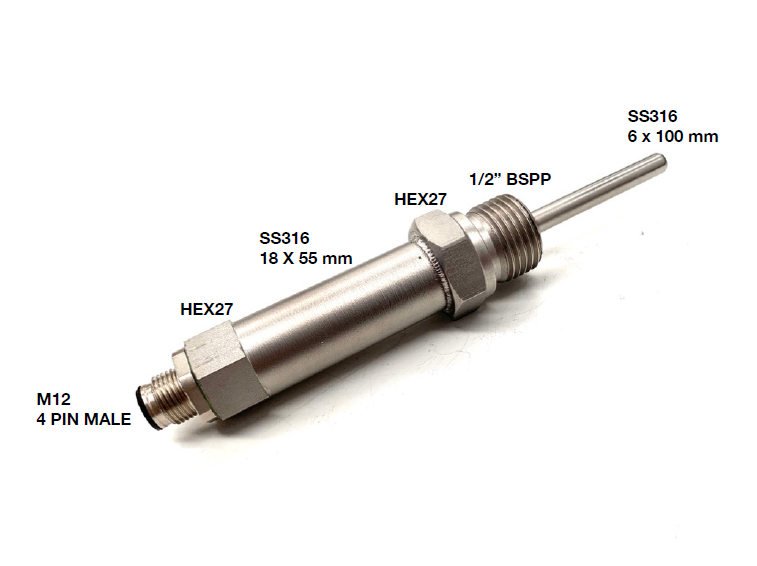

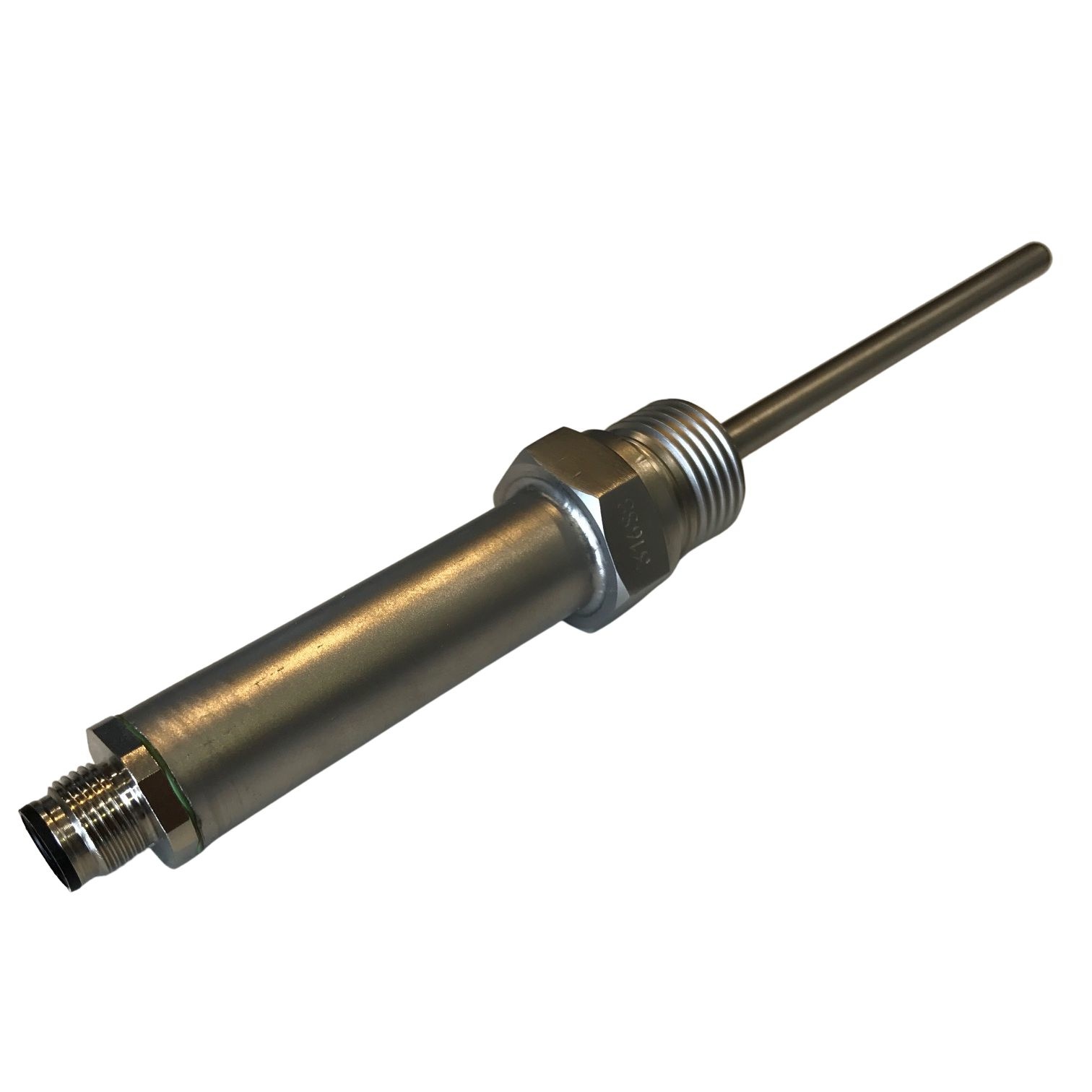

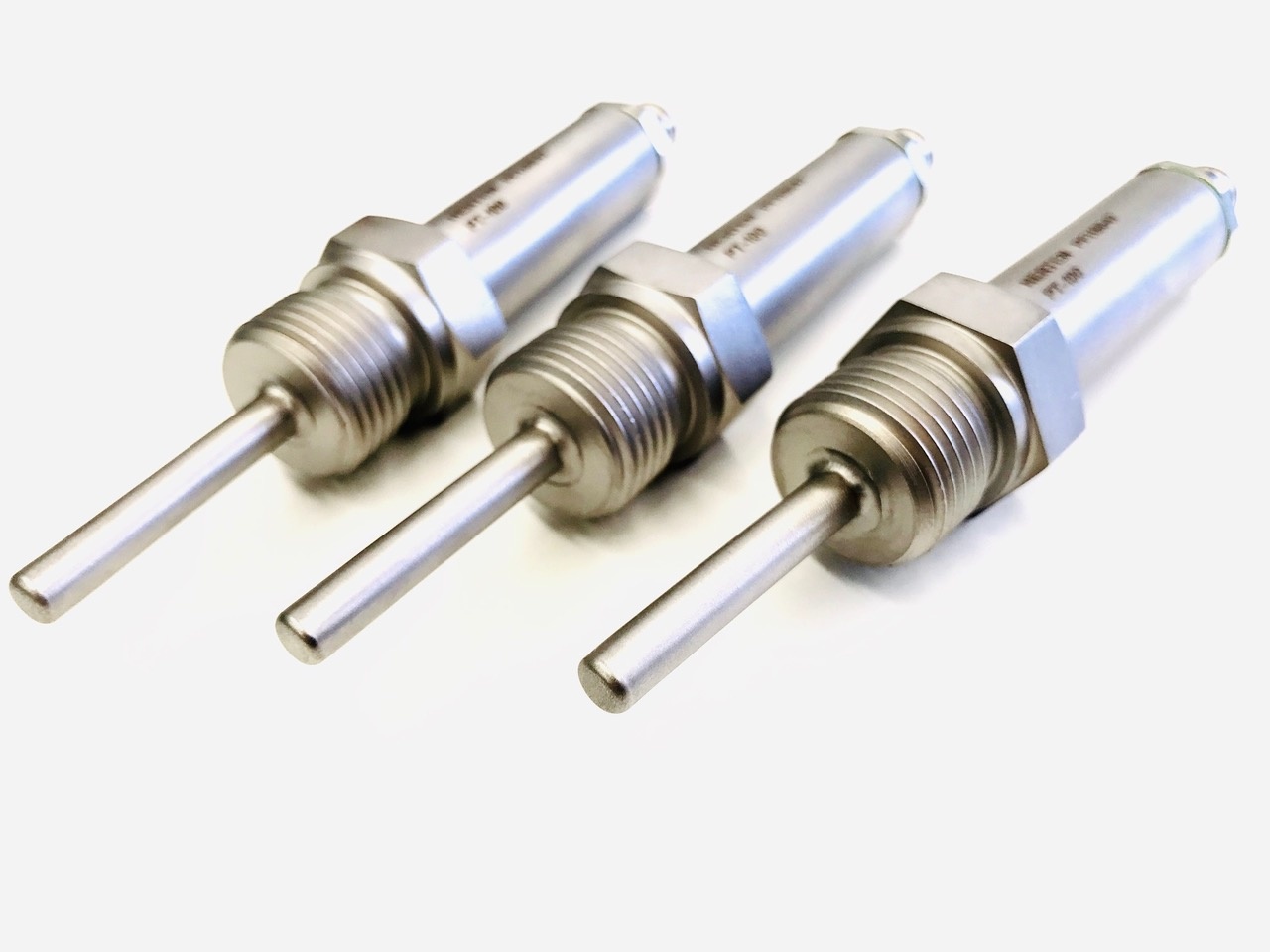

    PIMZOS Compact RTD Sensor with 4-20mA Transmitter and M12 Connector

    The PIMZOS M12 Temperature sensors combines a precision RTD sensing element and transmitter electronics in a single stainless steel temperature transmitter probe. An M12 quick-disconnect provides connection to the loop powered 4-20 mA output signal that provides a linear representation of measured temperature and is compatible with PLCs, SCADA systems, and digital panel meters. These PT100 sensors are made with 316L Stainless Steel housings for strength and corrosion resistance. These sensors include a 4-pin, M12 A-Coded plug connector for easy assembly to patch cables or extension cables, as well as 1/2” or 1/4” thread for easy installation into an existing threaded port.
    These temperature sensors are suited for temperature monitoring. Because of its compact design is suitable for use in a great number of technological processes in food/pharmaceutical and biotechnology.

    Features

    RTD and transmitter electronics combined in a single stainless steel probe
    Small Compact All-In-One Construction
    Ready to use with preconfigured temperature measuring ranges
    1/4” or 1/2” male BSP threads for direct mounting
    4-20 mA output, 2-wire system
    M12 quick-disconnect electrical connection
    Corrosion Resistant Stainless Steel Probe Tubes

    Specifications

    Operating Voltage: 10 to 30 Vdc ( protected for over voltage and reverseconnection)
    Electrical connection: M12 connector, 4 Pin
    Process Connection: 1/2” - 1/4” BSPP Male
    Analog Output: 4 to 20 mA, 2 wire system
    Integrated 4-20 mA transmitter, 2 wire system
    Range 4-20 mA : -50…+150°C ( Other ranges on request)
    Accuracy of RTD (Pt100) : Class A accuracy as standard
    AISI 316L (1.4404) body and wetted parts
    Operating pressure : 10 bar maximum
    Highly accurate even with short insertion lengths
    Temperature range of the 4-20mA transmitter (ambient) : -40 to +85°C -
    Humidity: 10-95% non condensing

    Benefits

    High Accuracy Temperature Measurement and Repeatability
    Self Contained, Tamper Proof Constructions
    Simple Installation with Industry Standard Process Fittings
    Integrated Transmitter Design Fits into Limited Space
    Ideal for a Wide Range of Industrial Applications

    Application Examples

    Semiconductor Wet Bench Corrosive Environments
    Energy Management Delivery Systems
    Chemical and Petrochemical Plants
    Hydraulic Systems Temperature and Viscosity Control
    Sludge and Waste Water Treatment
    Heat Recovery and Co-Generation Systems

    Specificaties

    Artikelnummer
    PFH15332
    SKU
    PFH15332
    Pt100/4-20mA, Class A, G1/2, M12 Temperature Transmitter
    € 68,-
    Excl. btw
    Pt100/4-20mA, Class A, G1/2, M12 Temperature Transmitter
    PFH15332
    Levertijd: 4 weken
