Madgetech DHS Data Logging System



Madgetech DHS Data Logging System
- Artikelcode DHS Data Logging System
- SKU DHS Data Logging System
- Artikelcode DHS Data Logging System
- SKU DHS Data Logging System
-
Beschrijving
Download Data Sheets
The DHS Data Logging System for Dry Heat Sterilization is an all in one depyrogenation solution that comes equipped with:• HiTemp140-M12, High Temperature Data Logger
• 36 inch Glass Braided RTD depyrogenation probe with M12 connector and flat probe tip
• ThermoVault Max, Extreme Temperature Thermal BarrierThis system is capable of withstanding and measuring temperatures up to 400 °C, allowing it to record throughout the entire depyrogenation process. The HiTemp140-M12 data logger features the popular rugged steel body design of the HiTemp140 data logger series with the flexibility to utilize dozens of RTD probe options with M12 connection compatibility.
The MadgeTech software allows for fast and easy data logger configuration. Simply insert the data logger into the IFC400 or IFC406 docking station (sold separately), choose either immediate or delay start and the desired reading rate. Insert the data logger onto the ThermoVault Max enclosure and screw the cap back on securely. The device is ready to be deployed.
Time vs. Temperature Chart
Ambient Temperature Maximum Exposure Time (air) -200 °C 128 minutes -180 °C 137 minutes -160 °C 148 minutes -140 °C 163 minutes -120 °C 183 minutes -100 °C 213 minutes -80 °C 263 minutes -60 °C 368 minutes -40 °C to +140 °C Indefinitely 150 °C 601 minutes 160 °C 468 minutes 170 °C 396 minutes 180 °C 348 minutes 190 °C 313 minutes 200 °C 286 minutes 210 °C 265 minutes 220 °C 247 minutes 230 °C 233 minutes 240 °C 220 minutes 250 °C 209 minutes 260 °C 200 minutes 270 °C 192 minutes 280 °C 184 minutes 290 °C 178 minutes 300 °C 172 minutes 310 °C 166 minutes 320 °C 161 minutes 330 °C 157 minutes 340 °C 153 minutes 350 °C - 400 °C 60 minutes -
Download Data Sheets

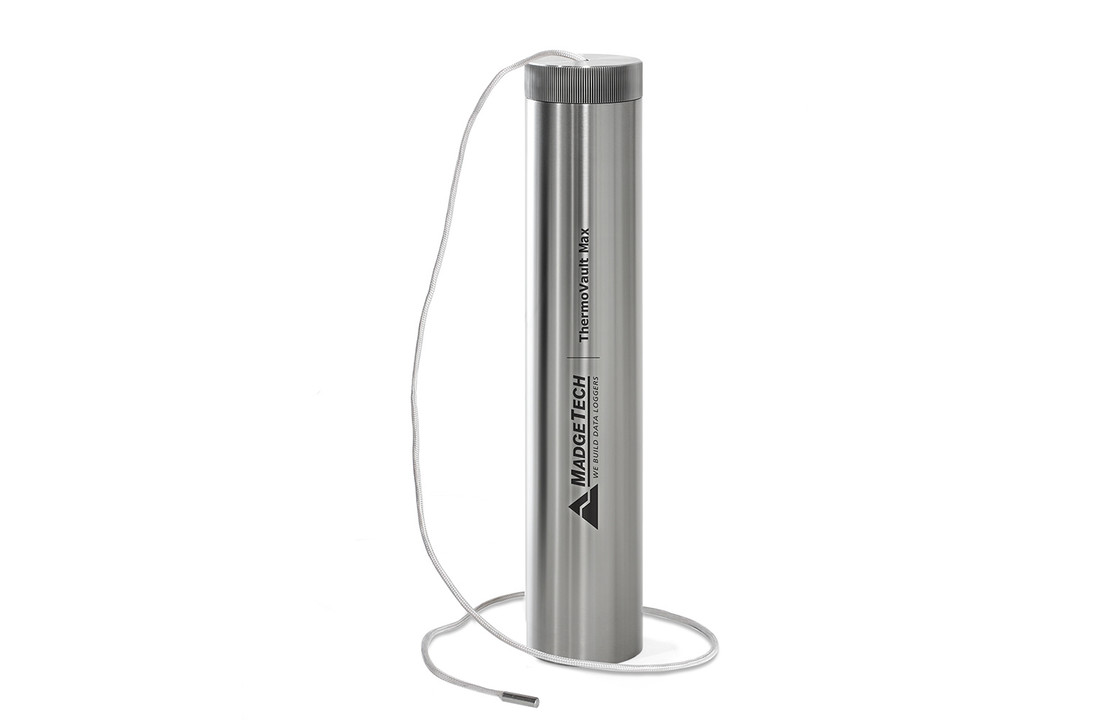

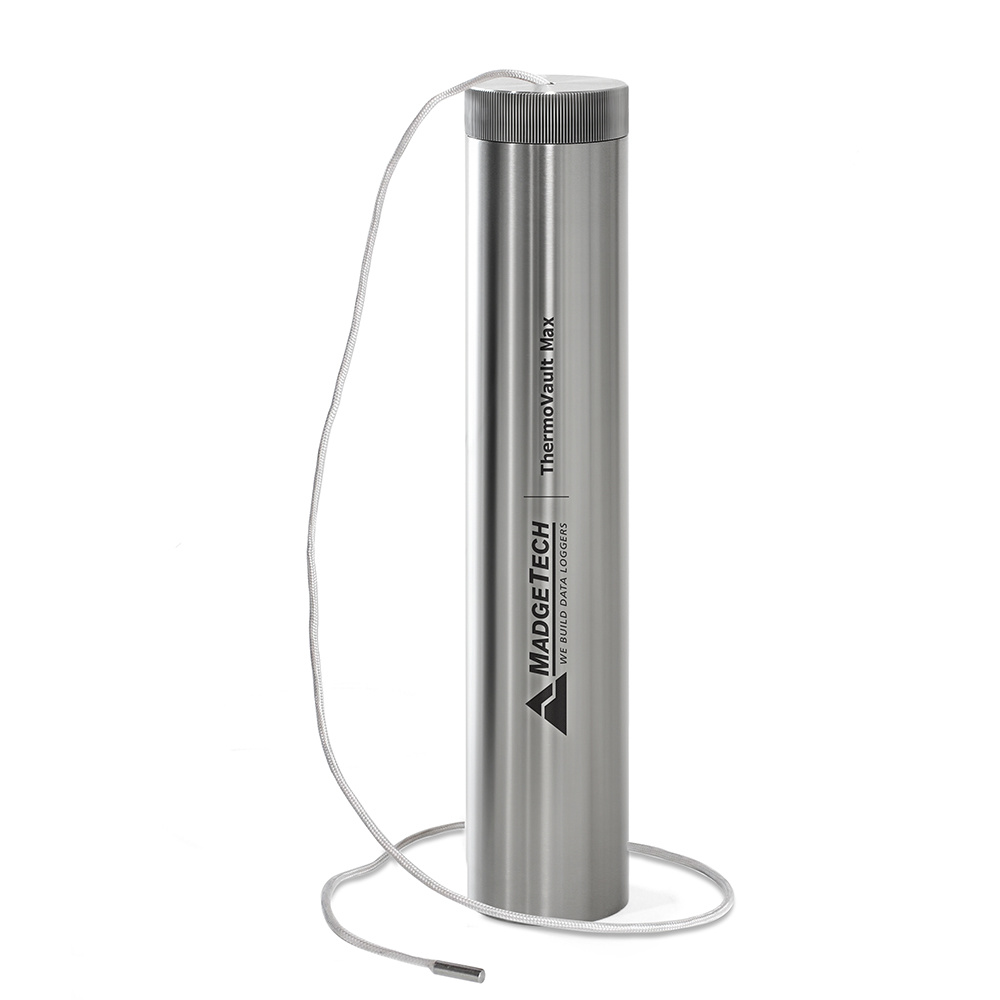

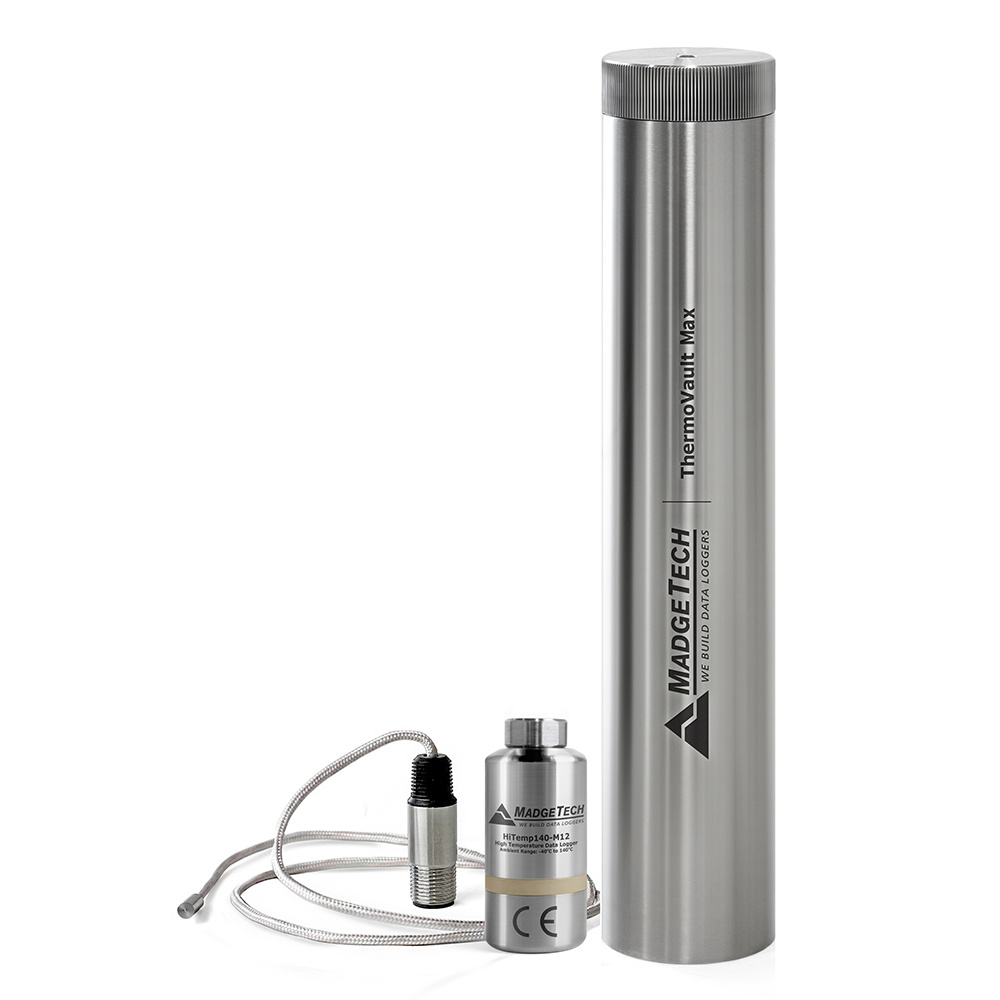

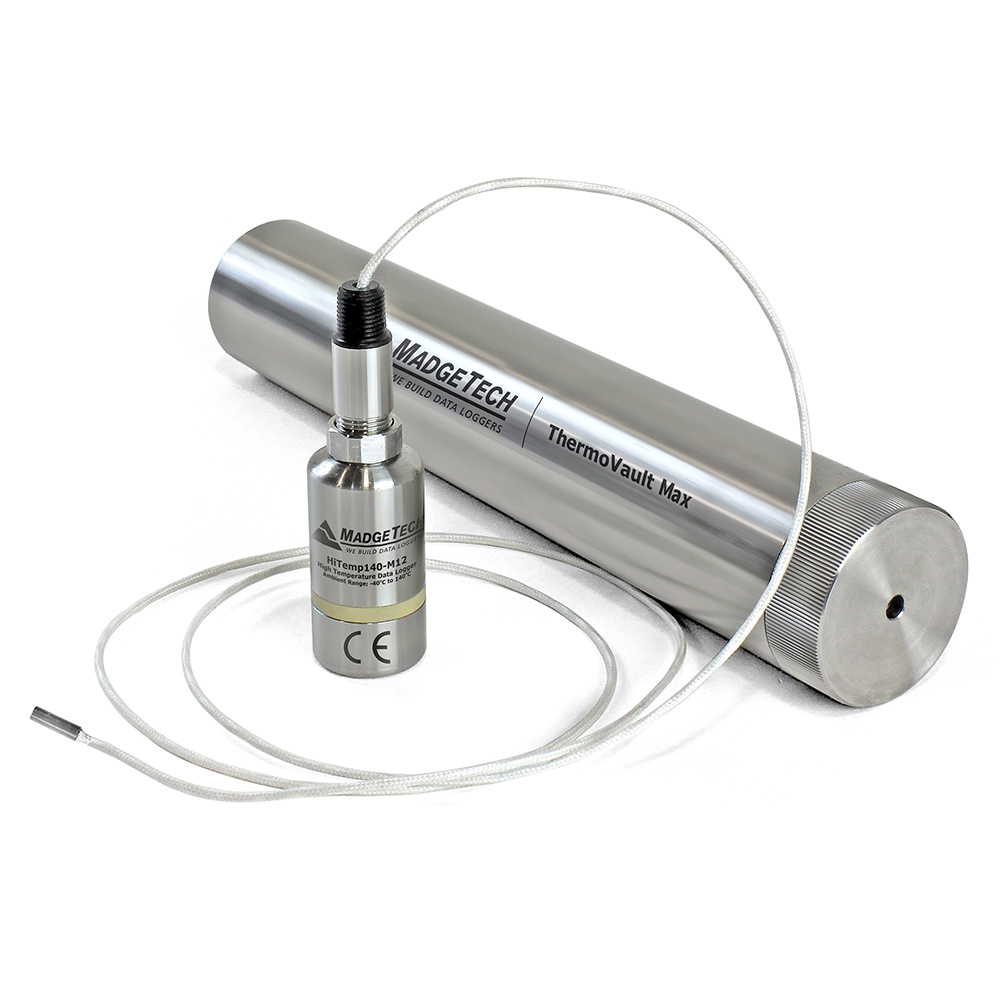

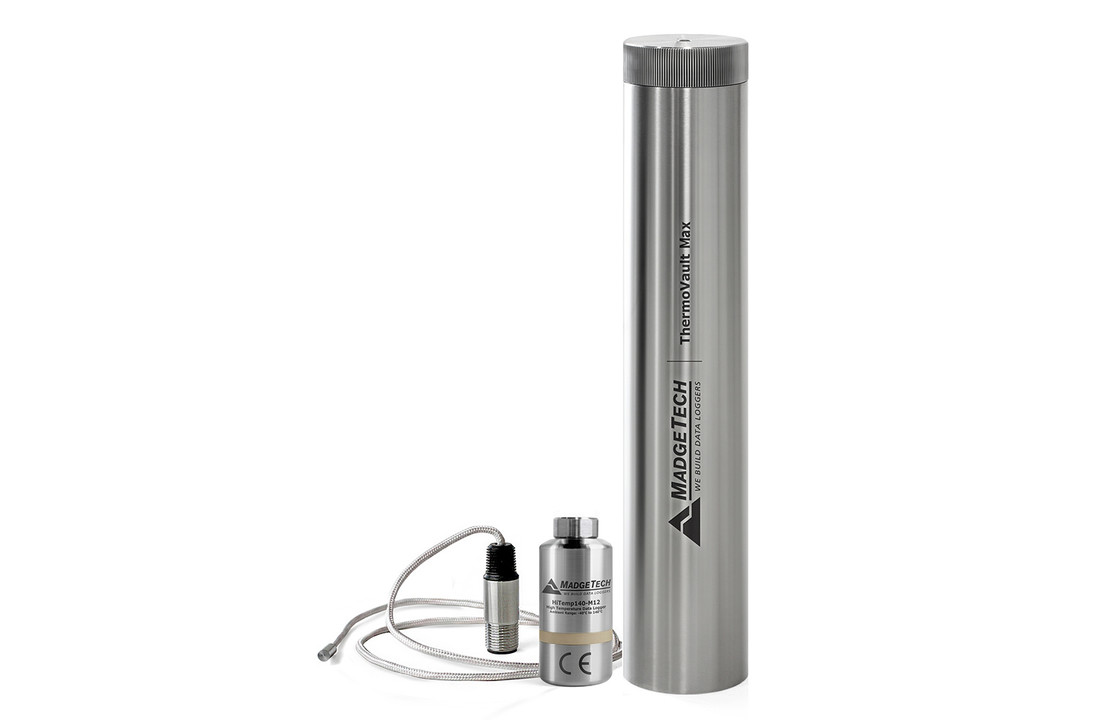

The DHS Data Logging System for Dry Heat Sterilization is an all in one depyrogenation solution that comes equipped with:
• HiTemp140-M12, High Temperature Data Logger
• 36 inch Glass Braided RTD depyrogenation probe with M12 connector and flat probe tip
• ThermoVault Max, Extreme Temperature Thermal Barrier
This system is capable of withstanding and measuring temperatures up to 400 °C, allowing it to record throughout the entire depyrogenation process. The HiTemp140-M12 data logger features the popular rugged steel body design of the HiTemp140 data logger series with the flexibility to utilize dozens of RTD probe options with M12 connection compatibility.
The MadgeTech software allows for fast and easy data logger configuration. Simply insert the data logger into the IFC400 or IFC406 docking station (sold separately), choose either immediate or delay start and the desired reading rate. Insert the data logger onto the ThermoVault Max enclosure and screw the cap back on securely. The device is ready to be deployed.
Time vs. Temperature Chart
Ambient Temperature | Maximum Exposure Time (air) |
-200 °C | 128 minutes |
-180 °C | 137 minutes |
-160 °C | 148 minutes |
-140 °C | 163 minutes |
-120 °C | 183 minutes |
-100 °C | 213 minutes |
-80 °C | 263 minutes |
-60 °C | 368 minutes |
-40 °C to +140 °C | Indefinitely |
150 °C | 601 minutes |
160 °C | 468 minutes |
170 °C | 396 minutes |
180 °C | 348 minutes |
190 °C | 313 minutes |
200 °C | 286 minutes |
210 °C | 265 minutes |
220 °C | 247 minutes |
230 °C | 233 minutes |
240 °C | 220 minutes |
250 °C | 209 minutes |
260 °C | 200 minutes |
270 °C | 192 minutes |
280 °C | 184 minutes |
290 °C | 178 minutes |
300 °C | 172 minutes |
310 °C | 166 minutes |
320 °C | 161 minutes |
330 °C | 157 minutes |
340 °C | 153 minutes |
350 °C - 400 °C | 60 minutes |
