    QUIDO_ETH_4/4 with 4 inputs, 4 outputs and thermometer

    € 130,- Excl. btw We versturen binnen : 4-6 werkdagen
    Quido ETH 4/4 includes 4 digital inputs, 4 outputs and thermometer. Quido connects directly to a LAN (Ethernet) and can be fully controlled and managed through a web interface. Inputs are designed to connect voltage or contacts – can distinguish two state... Toon meer
    2 variaties Quido ETH 4/4, Input for 7 to 28 V
    • Your reliable partner since 21 years
    • Shipping from our own warehouse !
    • Secure shipping in EU with DPD Traceable
    • Questions : Call +31-(0)85-065 6325

    Productomschrijving

    Download Datasheet Download PDF

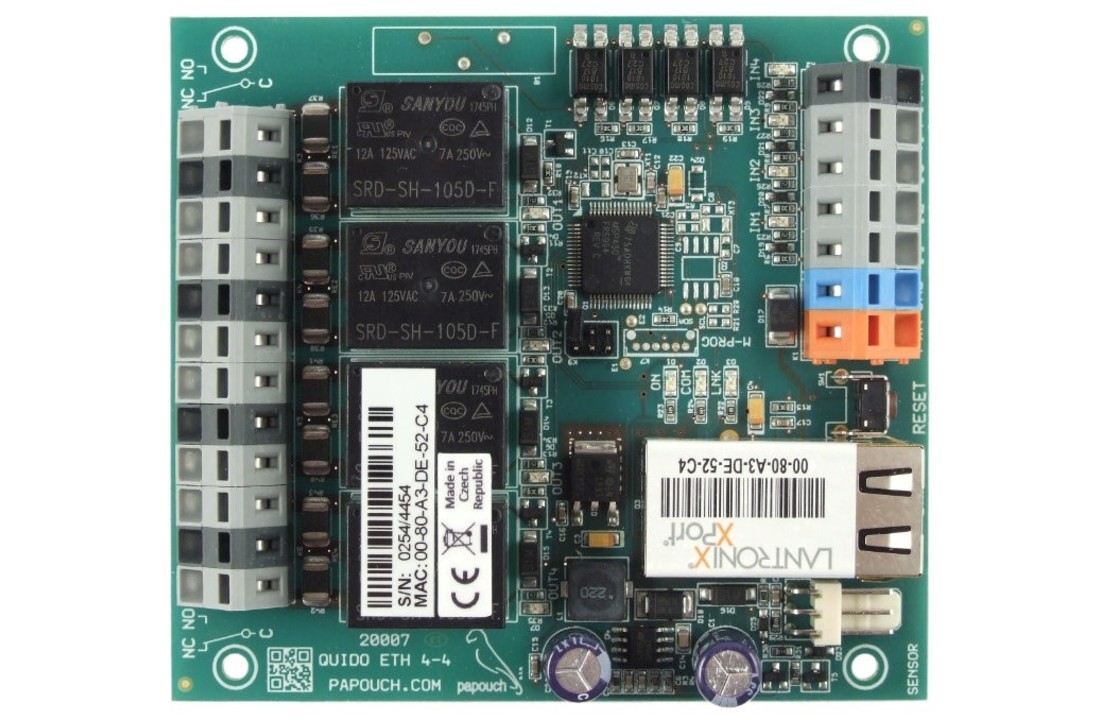

    Quido ETH 4/4: 4 inputs, 4 outputs and thermometer

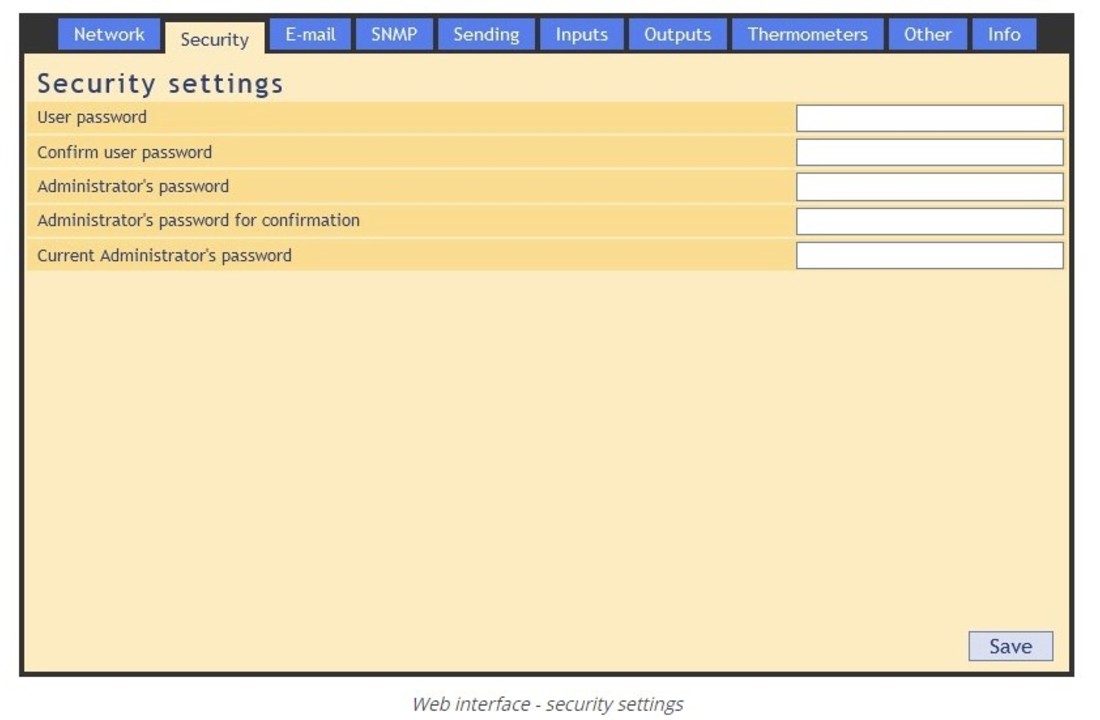

    Quido ETH 4/4 includes 4 digital inputs, 4 outputs and thermometer. Quido connects directly to a LAN (Ethernet) and can be fully controlled and managed through a web interface. Inputs are designed to connect voltage or contacts – can distinguish two states (0 and 1). The outputs are relays with a changeover contact. The thermometer can be connected to a cable of up to 15 meters and is able to measure temperatures in the range from -55 to +125 °C.

    Thermometers, plexi covers, metal boxeses or DIN rail holder ban be found in Quido accessories.

    Features of I/O module

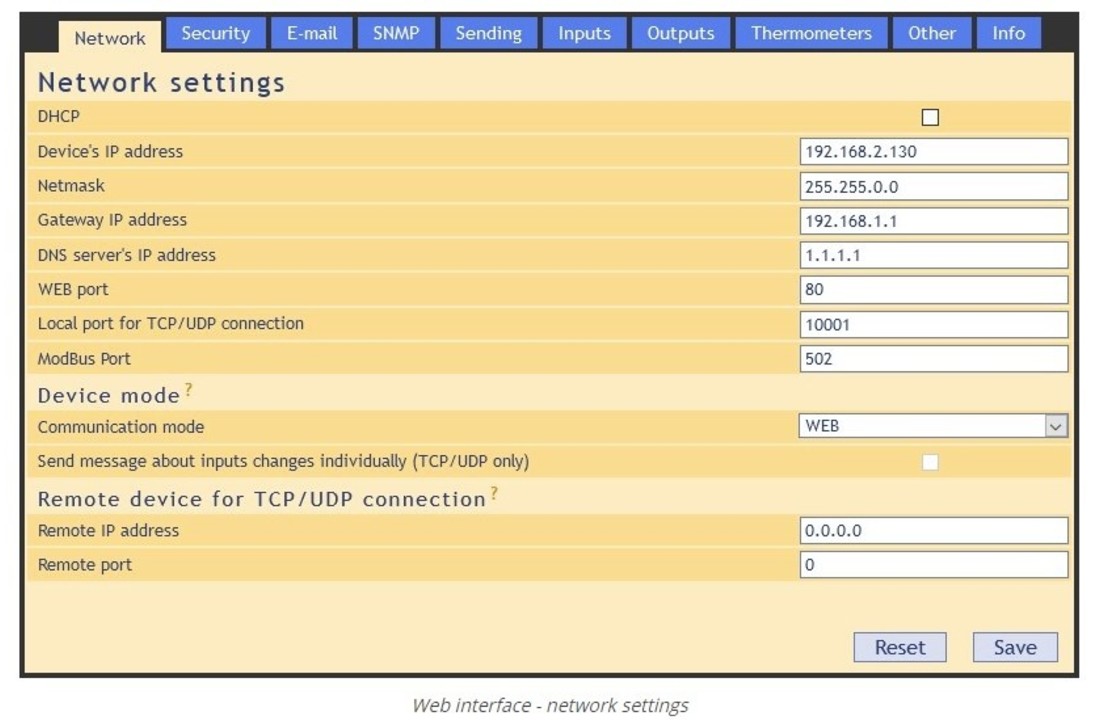

    • Connects directly to LAN (10/100 Ethernet)
    • Controlled by: Web interface, e-mail, Spinel, MODBUS TCP, SNMP, HTTP GET, XML and Wix applications

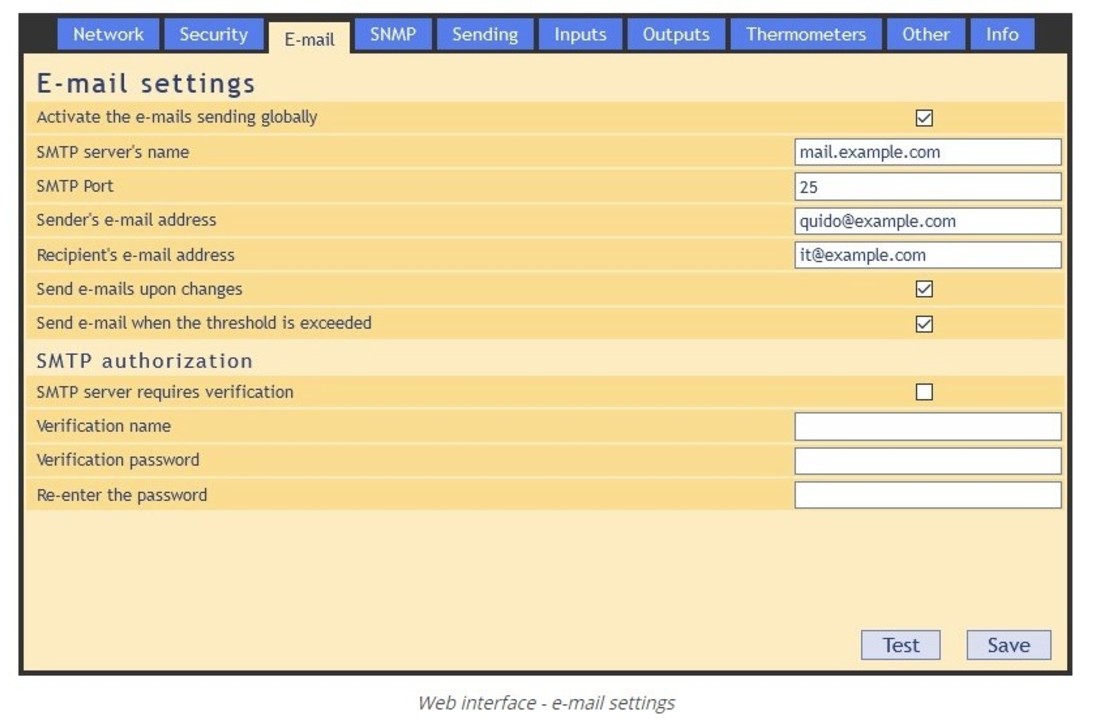

    • E-mail notification (without SSL/TLS, port 25).

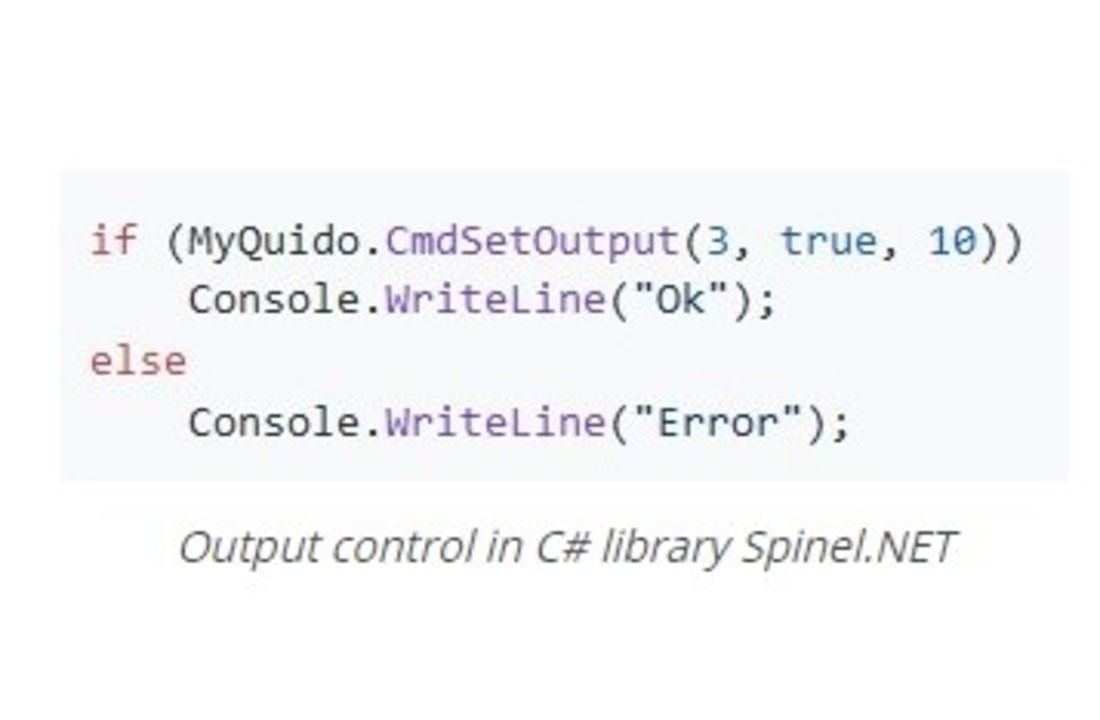

    • For developers: Spinel.NET library on Github with examples in C# (documentation only in Czech)
    • LED indication of power, communication, and the status of inputs and outputs.

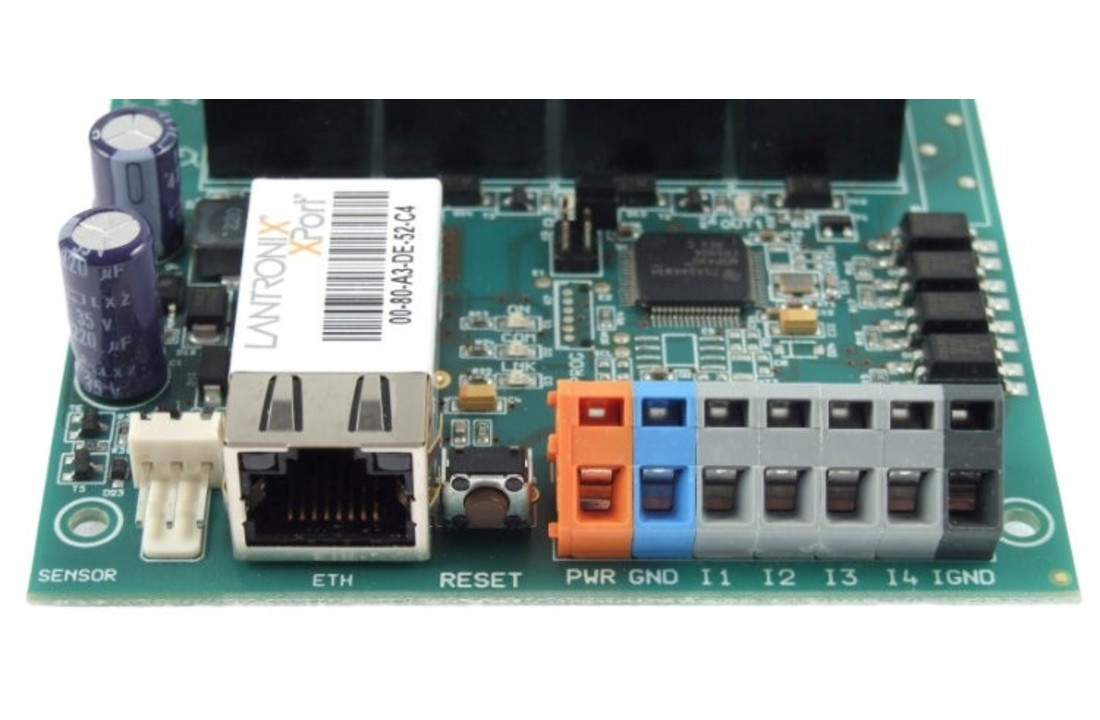

    • 4 Galvanically isolated digital inputs for voltage or contacts.

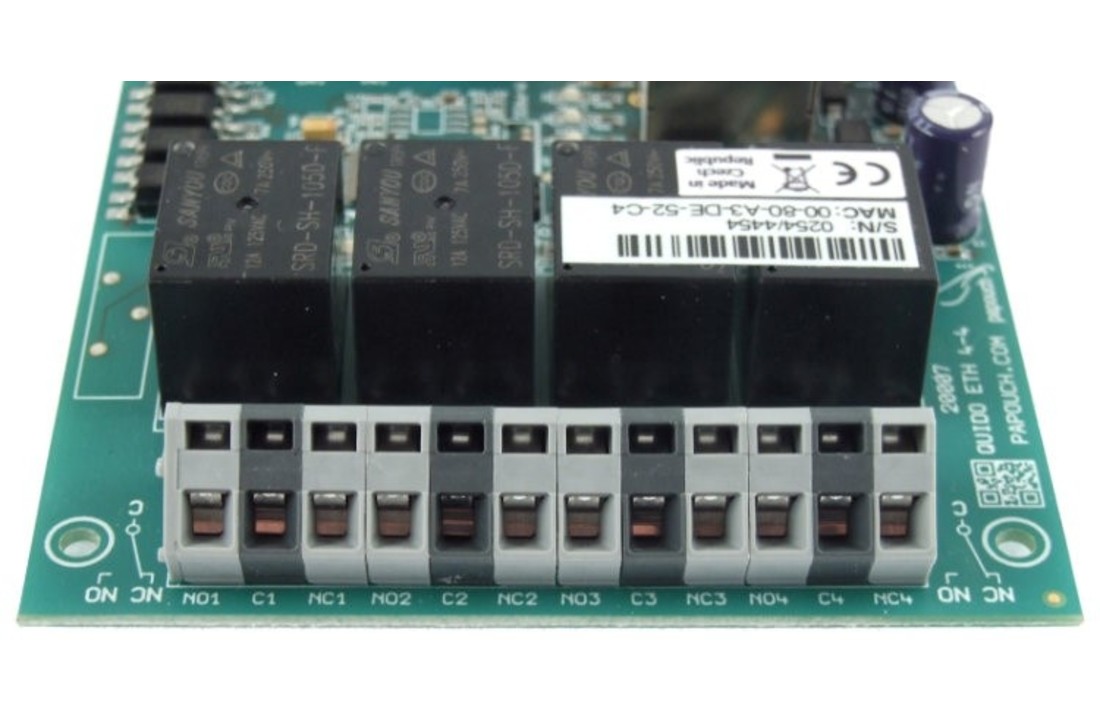

    • 4 Outputs = changeover contact relays.
    • 1 Thermometer with a measuring range of -55 to +125 °C.
    • Automatically sends information about changes on the inputs.
    • Autonomous control based on the measured temperature.
    • Counts pulses on the inputs.
    • Operating temperature of electronics -20 to +60 °C.
    • External power supply 8 to 30 V.
    • Plastic lever for Wago 236 terminals (standard part of delivery).

    Basic functions of I/O modul

    • Reads the current status of inputs
    • Automatically sends information (email, HTTP GET, ...) about changes on the inputs.
    • Counts pulses on the inputs or changes in the status of the input (for first 60 inputs)
    • Control of output relays with a changeover contact
    • Configuration of the outputs for a defined period
    • Thermometer: measuring range of -55 to +125 °C
    • Temperature monitoring (the relay closes when temperature changes, closes for a predefined period when a specified temperature has been reached; sends an e-mail or HTTP GET)

    Practical applications

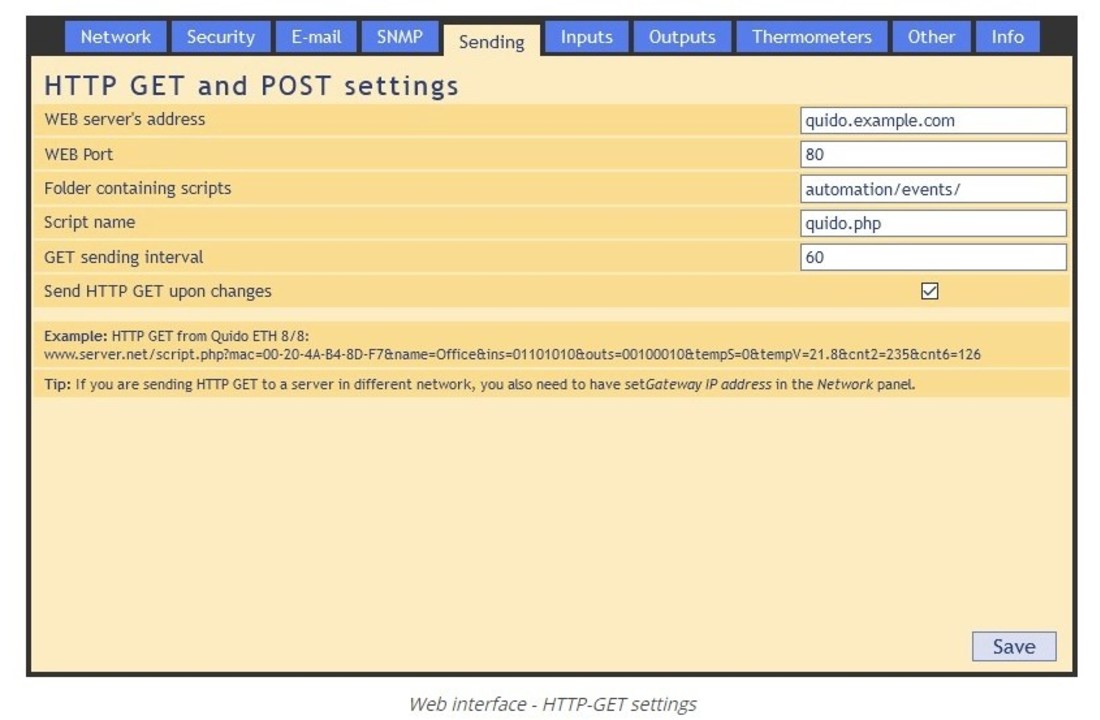

    • Easy control and sending and notifications of the current status via HTTP GET queries.
    • Do you want to monitor electricity consumption directly from your PC? How to connect Quido and electricity meter.
    • Do you need to control an appliance with 230 V power supply? How to switch 230 V with Quido and relay.
    • What information can you get from XML in Quido?
    • Are you looking for a feature that is curruntly not available? Feel free to contact us and Quido module can be taylored according your needs!
