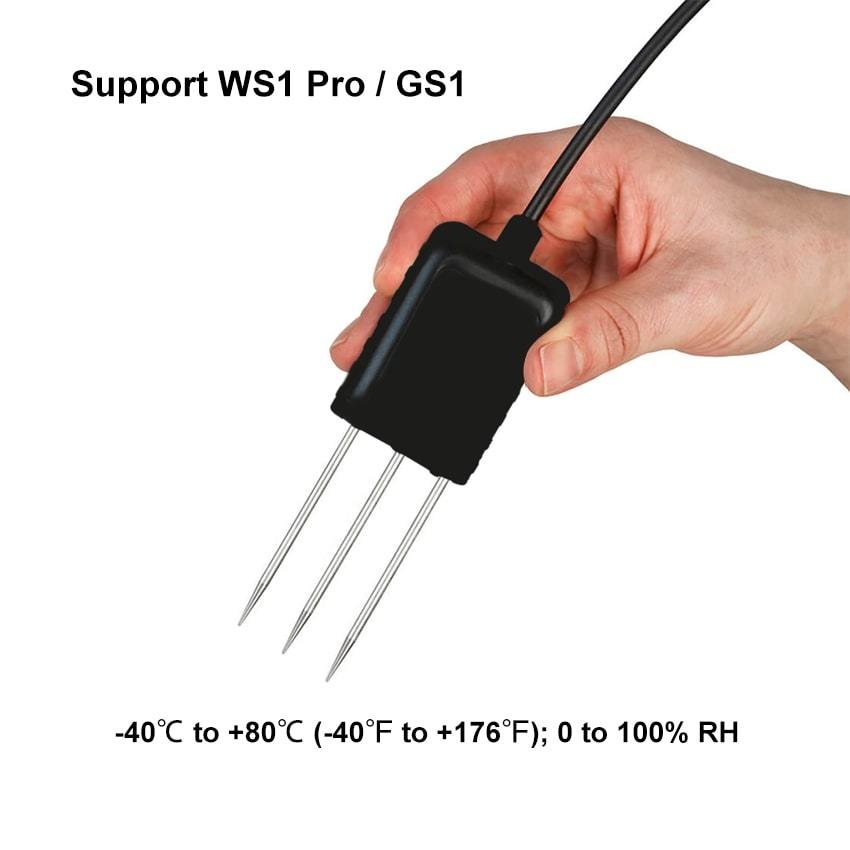

Soil Temperature and Moisture probe 3 m - USB for WS1 Pro
This probe specialises in monitoring temperature and humidity of soil. Embedded with industrial-grade chip, the probe offers accurate measurement. The stainless steel probe can be inserted into the soil for a long term without being corroded. The durable cable ensures stable data transmission.

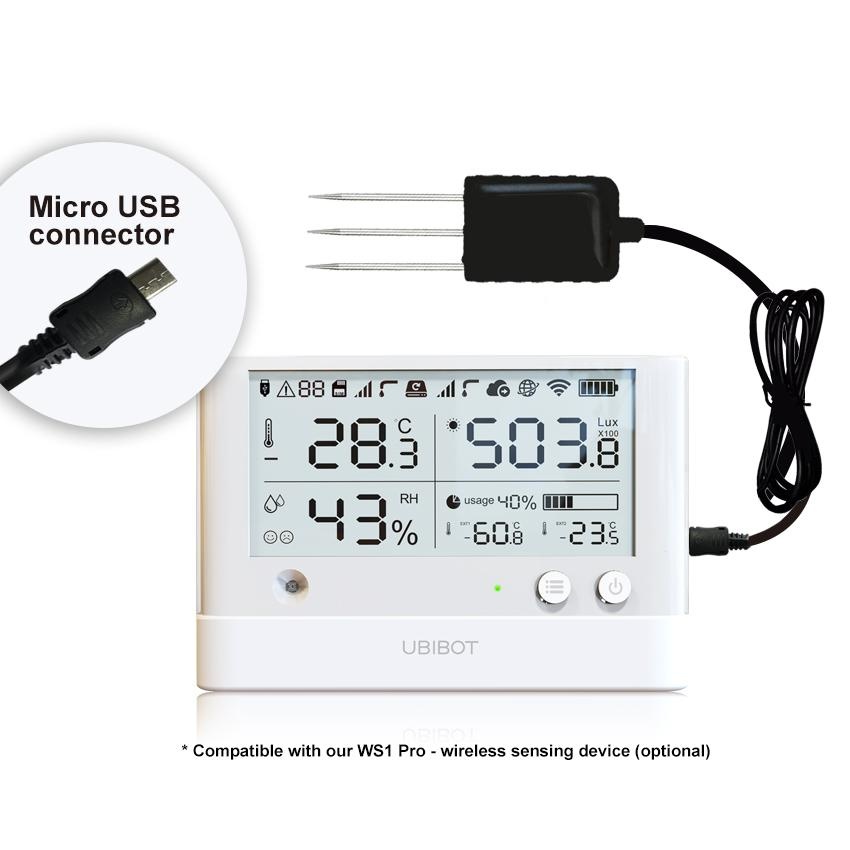

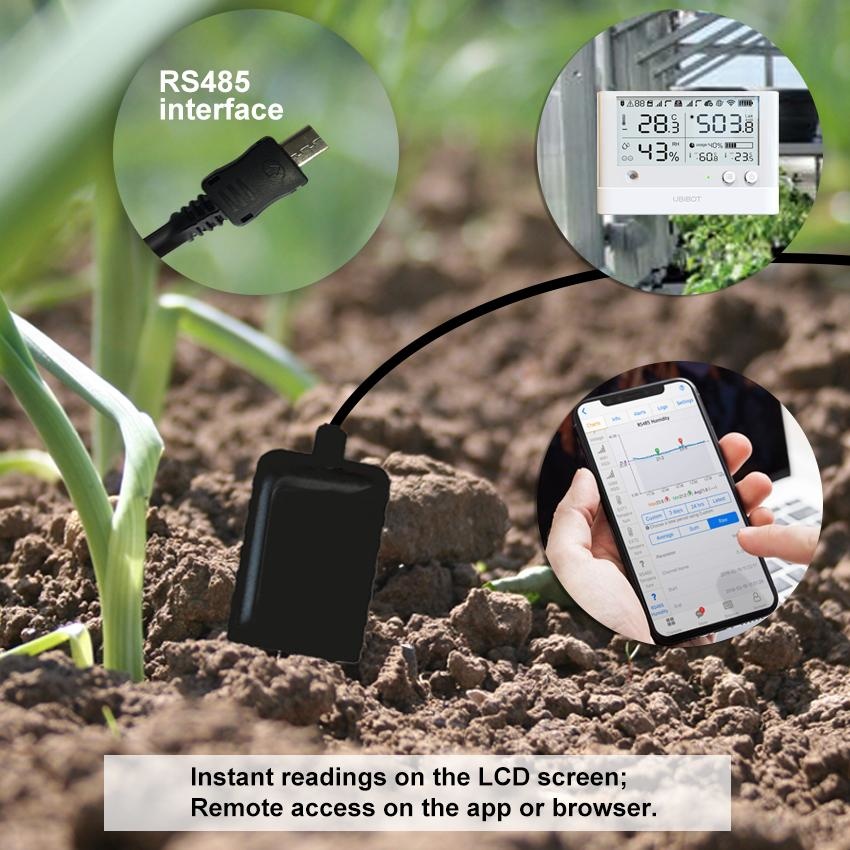

The measurements are transferred to the devices, displayed on the large LCD screen and synced to the platform via network. So you can access the data instantly on the screen or remotely view them via our app or web console.
The humidity readings on the app can be switched between Relative Humidity and Absolute Humidity. You can configure the display on the web console.
For one time use only

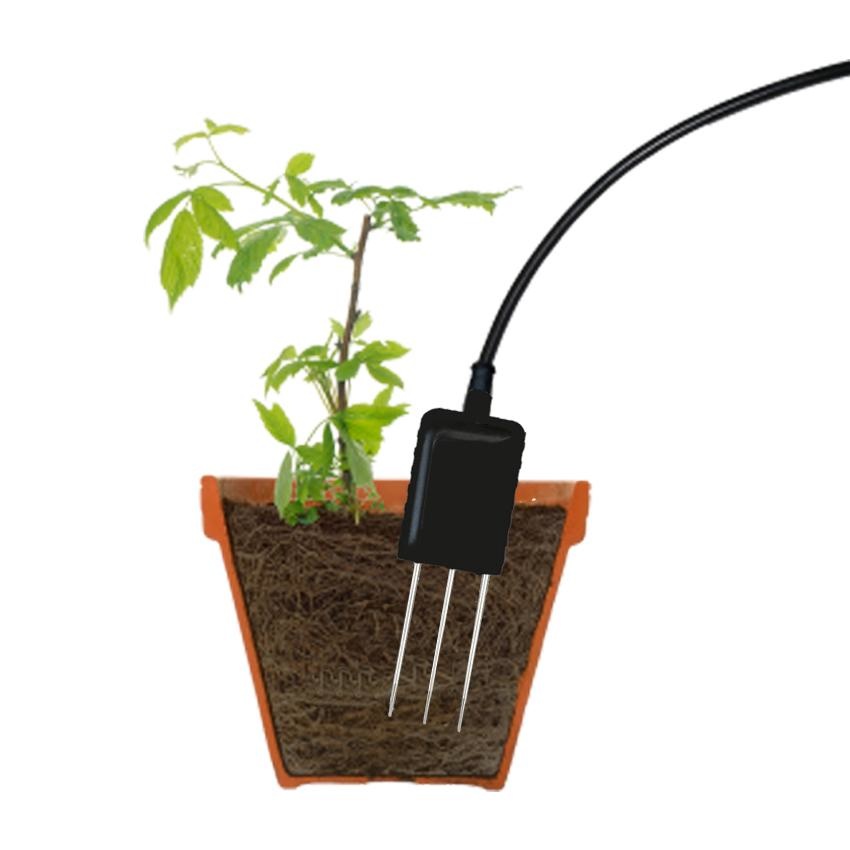

Insert the steel probe point vertically to the soil at your preferred depth. Hold the probe tightly in case of it shaking. Avoid touching stones or any other hard objects, because that will damage the probe. Please wait for about 20 minutes to allow the sensor to work properly.

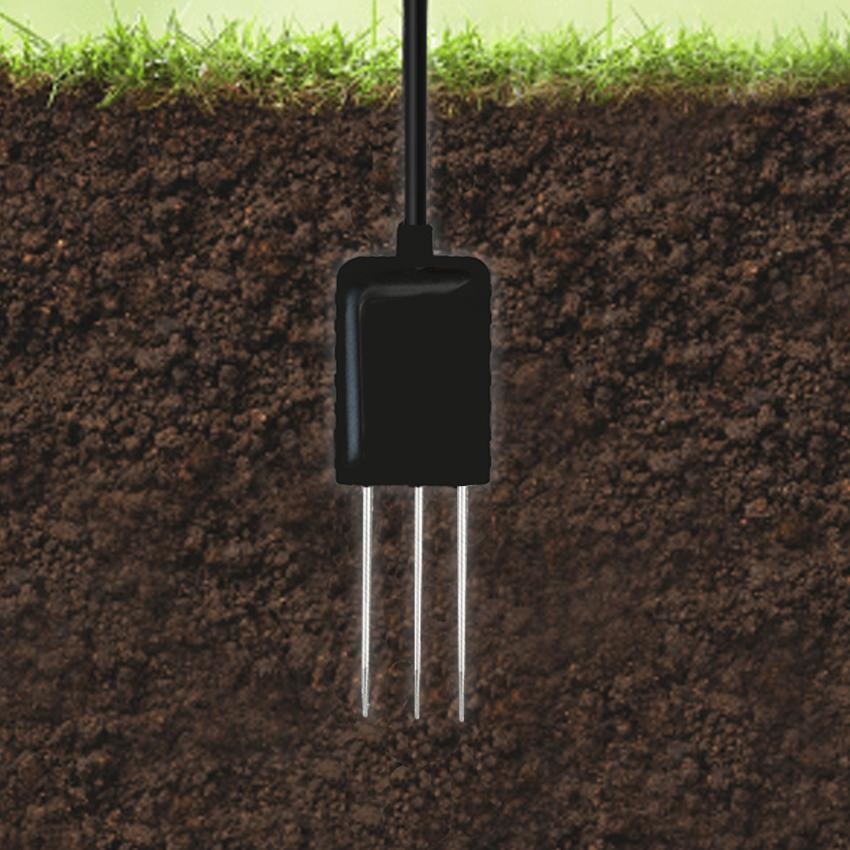

For long time burried in soil:
Dig a hole at over 20cm-diameter on the ground or soil in your greenhouse. Insert the steel probe point in horizontal direction to the soil. Leave the probe in the soil and you can have your data remotely.
About humidity readings
All soil probes have been calibrated in the factory. Calibration including data points is conducted by placing the probe in the air to reach the minimum of 0% and pure water to reach the maximum 100%. For very wet soil, the reading is expected to be around 30% depends on the soil type. Please note that when the soil is waterlogged, the reading may jump from the values of 30%-35% to 100% as it is very close to the situation of soaking the probe in the pure water.
The external sensors of the WS1 Pro device are disabled by default . Please enable them in the "Settings" page on the App or the console after inserting the probe into the device. In this case, the readings from the external probe are accessbile. The button "RS485 S" refers to this soil probe. The GS1 device doesn't need this operation.
Warning: The probe point is very sharp. Be careful when using it and keep it away from children.
Steel Point Length : 80mm
Length of Cable : 300cm
Material : ABS
Connector : Micro USB & Audio Plug
Power Supply Range : DC 5V to 12V
Operating Condition : -40°C to +85°C, 0 to 100% RH
Output Interface : RS485
Communications Protocol : Modbus
