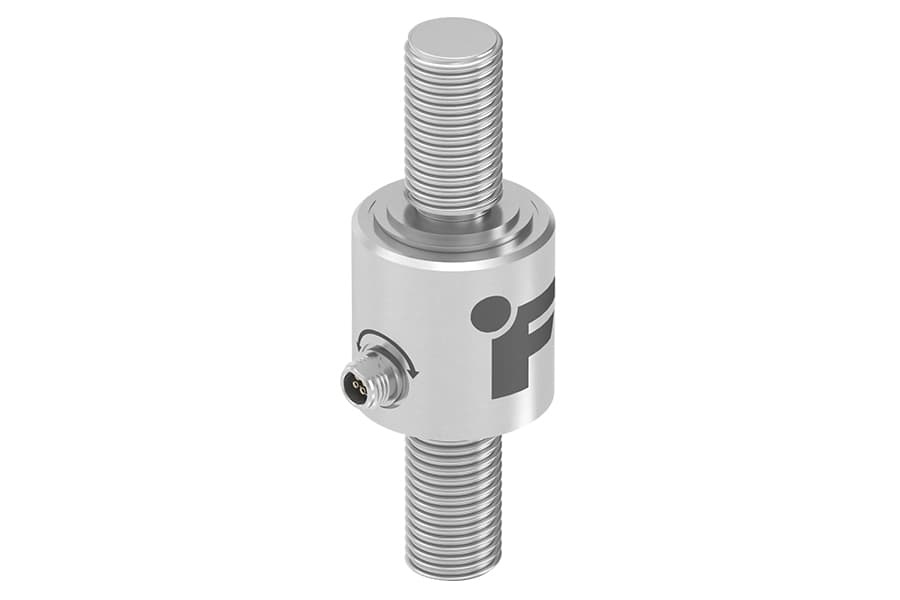

    LCM350 Miniature Threaded In Line Load Cell

    € 775,-
    € 736,25 Excl. btw Email of bel ons voor de levertijd
    LCM350 , Tension & Compression Load Cell , RoHS Compliant , Material - 17-4 PH S.S. , 28 Awg 4 Conductor Braided Shielded PVC , 10 ft Long... Toon meer
    4 variaties FSH04079 - 4Klb (17.8kN) - M12X1.75-Thread
    • Your reliable partner since 21 years
    • Shipping from our own warehouse !
    • Secure shipping in EU with DPD Traceable
    • Questions : Call +31-(0)85-065 6325

    Productomschrijving

    Download Datasheet Download PDF

    LCM350 , Tension & Compression Load Cell , RoHS Compliant , Material - 17-4 PH S.S. , 28 Awg 4 Conductor Braided Shielded PVC , 10 ft Long

    Model LCM350 is a Tension and Compression Load Cell built for Endurance, Press, or Inline applications. The standard LCM350 Tension and Compression Load Cell model has a very robust construction available in 17-4 Stainless Steel, with male threads on both ends and a 10 feet long 28 AWG 4 conductor shielded PVC cable. This product offers an exceptional miniature design with a height of 2.77” and a diameter of 0.96”. You will also find options for external matched output or a Teflon cable readily available.

    The Tension and Compression Load Cell offers high accuracy and high stiffness. It has Nonlinearity of ±0.5%, Deflection of 0.001” to 0.002” nominal. This model is manufactured in the USA and uses metal foil strain gauge technology.

    Features
    • Miniature size
    • Fast response and low deflection
    • Robust cable strain relief
    • For use in both tension and compression

    Specificaties

    Artikelnummer
    FSH04079 - 4Klb (17.8kN) - M12X1.75-Thread
    SKU
    FSH04079 - 4Klb (17.8kN) - M12X1.75-Thread
