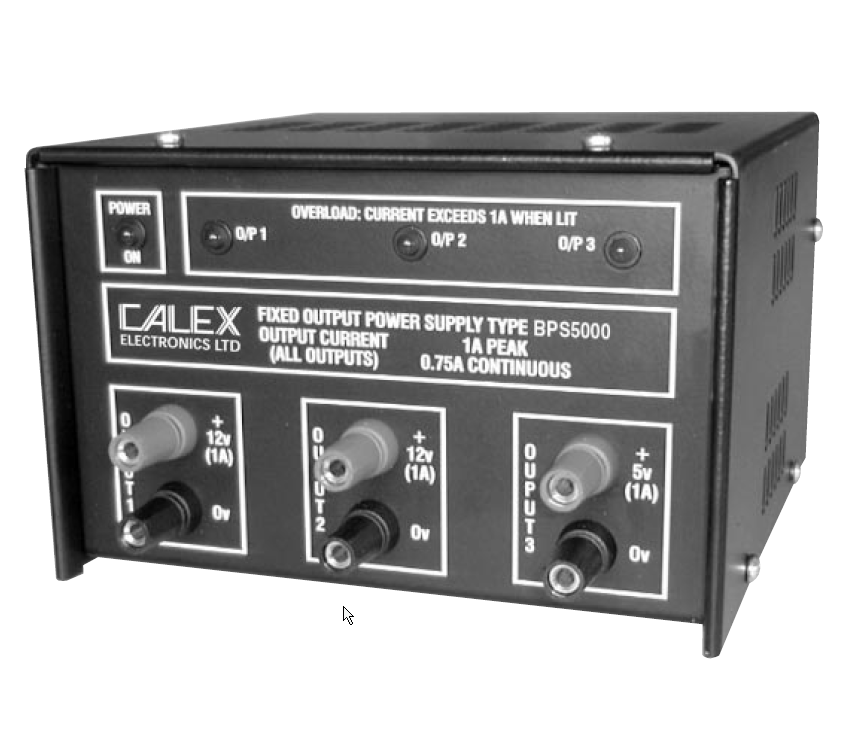

      BPS5000 Fixed Triple Output Bench Top Power Supply

      € 150,-
      € 99,- Excl. tax In stock
      BPS5000 Convel BPS5000 Fixed Triple Output Bench Top Power Supply Interconnectable Fixed Floating Outputs... Show more
      • Reliable Partner ! Already 20 years at your service
      • Shipping from our own warehouse in The Netherlands
      • Secure shipping in EU with DHL Europlus
      • Questions : Call +31-(0)85-065 6325

      Product description

      Download Datasheet Download PDF

      Ouderwetse keiharde kwaliteit met transformatoren !

      Convel BPS5000 Triple Output Bench Top Power Supply Interconnectable Fixed Floating Outputs

      The BPS5000 provides three fully stabilised and smoothed variable DC power sources. Maximum versatility is achieved by making each output isolated from the other so that they may be interconnected to provide plus and minus rails or added together for higher voltages. Outputs are current limited. An internal diode protects against reverse connection. Further protection is provided by an internal thermal overload mechanism which decreases the output voltage on continued overload.
      Indicator lights give an indication of excessive output current being drawn. An indicator light also gives identification of the mains power being on. Outputs are terminated on 4mm terminals
      which double either as binding posts for wires or sockets for 4mm plugs. A double-section bobbin transformer and careful layout internally ensures that the maximum mains/output isolation is
      achieved for greater safety.



      GENERAL SPECIFICATIONS

      • Brand : Calex Electronics Limited
      • Mains Input 240VAC (±7.5%) 50/60Hz
      • Mains Fuse 1A, 20 x 5mm (located on back panel)
      • Power On Indication LED on front panel
      • Output Voltage :
      • Output 1: 12V ±0.2V
      • Output 2: 12V ±0.2V
      • Output 3: 5V ±0.2V
      • (All outputs are isolated from one another).
      • Output Current All outputs 1A max (for up to 4 hours) 0.75A continuous
      • Load Regulation (0 to 1A)1%
      • Line Regulation (222V to 258V) 1%
      • Noise and Ripple 10mV rms
      • Overload Indication Occurs at approximately 25% overload
      • Ambient Temperature Range 0°C to 35°C
      • Storage Temperature Range -10°C to 80°C
      • Termination For use with 4mm wander plugs or as a binding post for wire connection.
      • Dimensions (h x w x d) 110 x 165 x 175mm
      • Weight 2.39kg
      • Fitted with EU Schuko Power Connector

      See PDF for connection possibilities.
