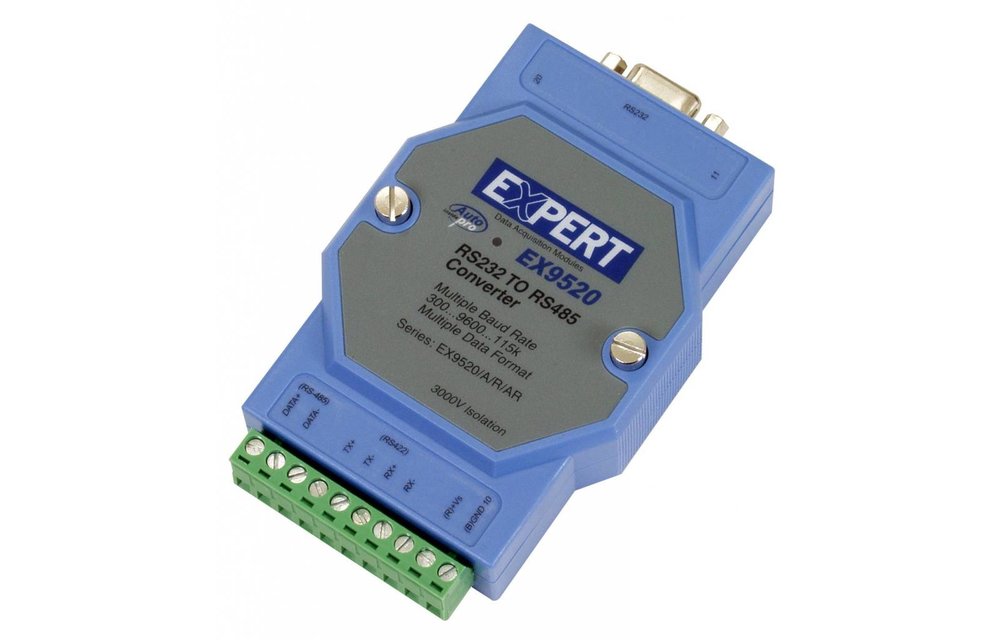

      EX9520A - RS232 to RS422 / RS485 Converter

      € 48,10 Excl. tax In stock
      EX9520A is an industrial-grade RS232 to RS422 / RS485 converter with an extended temperature range from -25°C to +75°C and isolation of 3000VDC on RS232... Show more
      • Reliable Partner ! Already 20 years at your service
      • Shipping from our own warehouse in The Netherlands
      • Secure shipping in EU with DHL Europlus
      • Questions : Call +31-(0)85-065 6325

      Product description

      Download Datasheet Download PDF

      RS232 to RS422 / RS485 converter (isolation on RS232 side)

      The RS232 to RS485 Converter Enables you to easily link devices communicating via RS232 with a RS485 network. In a RS485 network You May control up to 256 devices. Further More You May use 2 RS232 to RS485 converters to build a bridge via RS485 and RS232 Thereby extend the maximum cable length from a few meters to 1200 meters. You May enlarge the range of your network with a RS485 RS485 Repeater.

      The RS232 to RS485 Converter is capable of auto flow control and automatic baud rate switching. The converter supports full-duplex RS422 connections. You May Instead of the EX9520A get the EX9520A +-which can be powered with 9V - 48VDC INSTEAD OF 10V - 30VDC. The RS232 to RS485 converter can be operated in the extended temperature range and the RS232 input is isolated.

      Features

      • Full-Duplex RS422
      • RS232 isolated
      • automatic recognition of the baud rate and direction of flow
      • Extended temperature range -25 ° C - + 75 ° C
      • range up to 1200m
      • DIN-Rail and wall mount included in delivery

      Specifications

      DualWatchdog
      Host Watchdog:yes
      Module Watchdog:yes
      RS-232
      Ports:1
      Speed:300 to 115 200 bps • AutoPro: auto baud rate switching
      Isolation:3000 V
      Connector:DB9 female
      RS-422/485
      Ports:1
      Speed:300 to 115 200 bps • AutoPro: auto baud rate switching
      RS-422:full duplex
      RS-485:transient suppression on the data lines
      Connector:screw terminal block
      General specification
      Power consumption:2.2 W
      Operating Temperature:- 25 ° C to + 75 ° C
      Storage Temperature:- 40 ° C to + 80 ° C
      Indicator:LED
      Included in delivery
      Din rail mounting kit:1
      Wall mounting kit:1
      Manual:1
