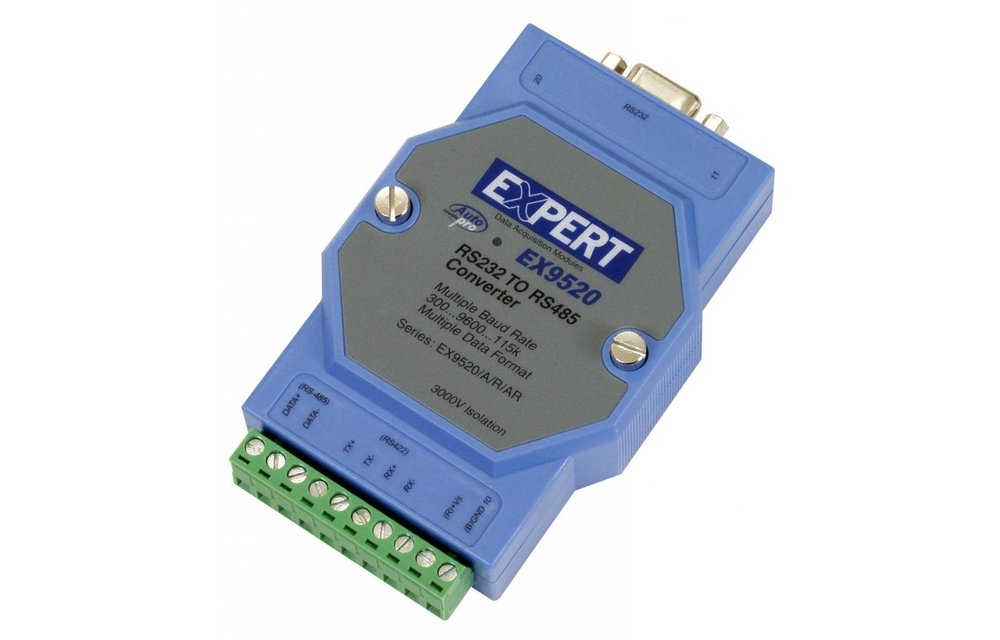

      EX9520R - RS232 to RS485 Converter (isolated RS485)

      € 50,50 Excl. tax In stock
      EX9520R is an industrial-grade RS232 to RS485 converter with an extended temperature range from -25°C to +75°C and isolation of 3000VDC on RS485... Show more

      Product description

      Download Datasheet Download PDF

      RS232 to RS485 converter (isolation on RS485 side)

      The RS232 to RS485 Converter Enables you to easily link devices communicating via RS232 with a RS485 network. In a RS485 network You May control up to 256 devices. Further More You May use 2 RS232 to RS485 converters to build a bridge via RS485 and RS232 Thereby extend the maximum cable length from a few meters to 1200 meters. You May enlarge the range of your network with a RS485 RS485 Repeater.

      The RS232 to RS485 Converter is capable of auto flow control and automatic baud rate switching. You May Instead of the EX9520R get the EX9520R +-which can be powered with 9V - 48VDC INSTEAD OF 10V - 30VDC. The RS232 to RS485 converter can be operated in the extended temperature range and the RS485 input is isolated.

      Features:

      • RS422 / RS485 isolated
      • automatic recognition of the baud rate and direction of flow
      • Extended temperature range -25 ° C - + 75 ° C
      • range up to 1200m
      • cap-rail and wall mount included in delivery

      Specifications

      DualWatchdog
      Host Watchdog:yes
      Module Watchdog:yes
      RS-232
      Ports:1
      Speed:300 to 115 200 bps • AutoPro: auto baud rate switching
      Connector:DB9 female
      RS-485
      Ports:1
      Speed:300 to 115 200 bps • AutoPro: auto baud rate switching
      RS-485:transient suppression on the data lines
      Isolation:3000 V
      Connector:screw terminal block
      General specification
      Power consumption:2.2 W
      Operating Temperature:- 25 ° C to + 75 ° C
      Storage Temperature:- 40 ° C to + 80 ° C
      Indicator:LED
      Included in delivery
      Din rail mounting kit:1
      Wall mounting kit:1
      Manual:1

      Specifications

      Article number
      EX9520R
