Direct replacement for standard head mounted temperature transmitters.

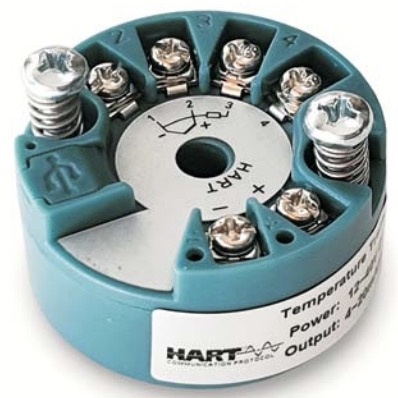

Industrial HART temperature transmitter for DIN-head mounting.
Universal input for thermocouples and RTDs, converting temperature into a stable 4–20 mA signal.
High accuracy (±0.1 °C) and fully configurable via HART.
✔ One transmitter for all sensors
✔ Remote configuration via HART (no dismantling required)
✔ Direct replacement for standard head transmitters
✔ Loop-powered – no extra wiring needed
Designed as a direct replacement for standard head mounted temperature transmitters used in industrial installations.
Compatible with PLC, SCADA and DCS systems.
This transmitter is designed for applications where flexibility and reliability are essential.
One device supports multiple sensor types, reducing inventory and simplifying installation.
This HART temperature transmitter is designed for DIN B-head mounting and provides a flexible solution for industrial temperature measurement. The universal input supports both thermocouples and RTD sensors.
The transmitter converts the input signal into a stable 4–20 mA output and can be easily configured via HART (e.g. measuring range and sensor type). High accuracy and full galvanic isolation make it suitable for demanding industrial environments.
Loop-powered operation simplifies installation and eliminates the need for a separate power supply.

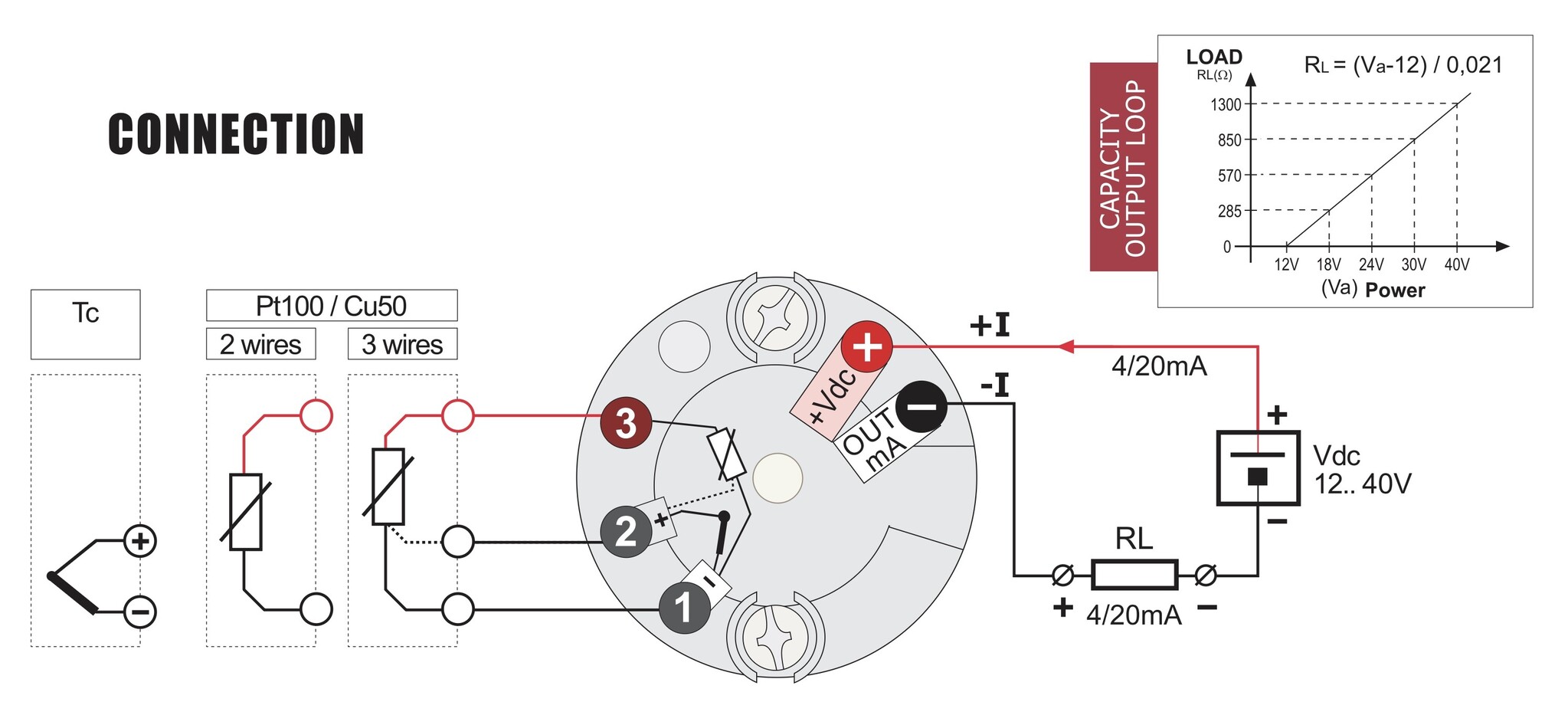

| Input | TC (J, K, S, R, T, E, N, B), Pt100, Cu50 |
| Output | 4–20 mA (passive) |
| Power supply | Loop-powered |
| Supply voltage | 10…40 Vdc |
| Isolation | 1500 Vac |
| Accuracy | ±0.1% span |
| Overall error | ±0.1 °C |
| EMI | < 0.5% |
| Temperature coefficient | < 100 ppm |
| Mounting | DIN head |

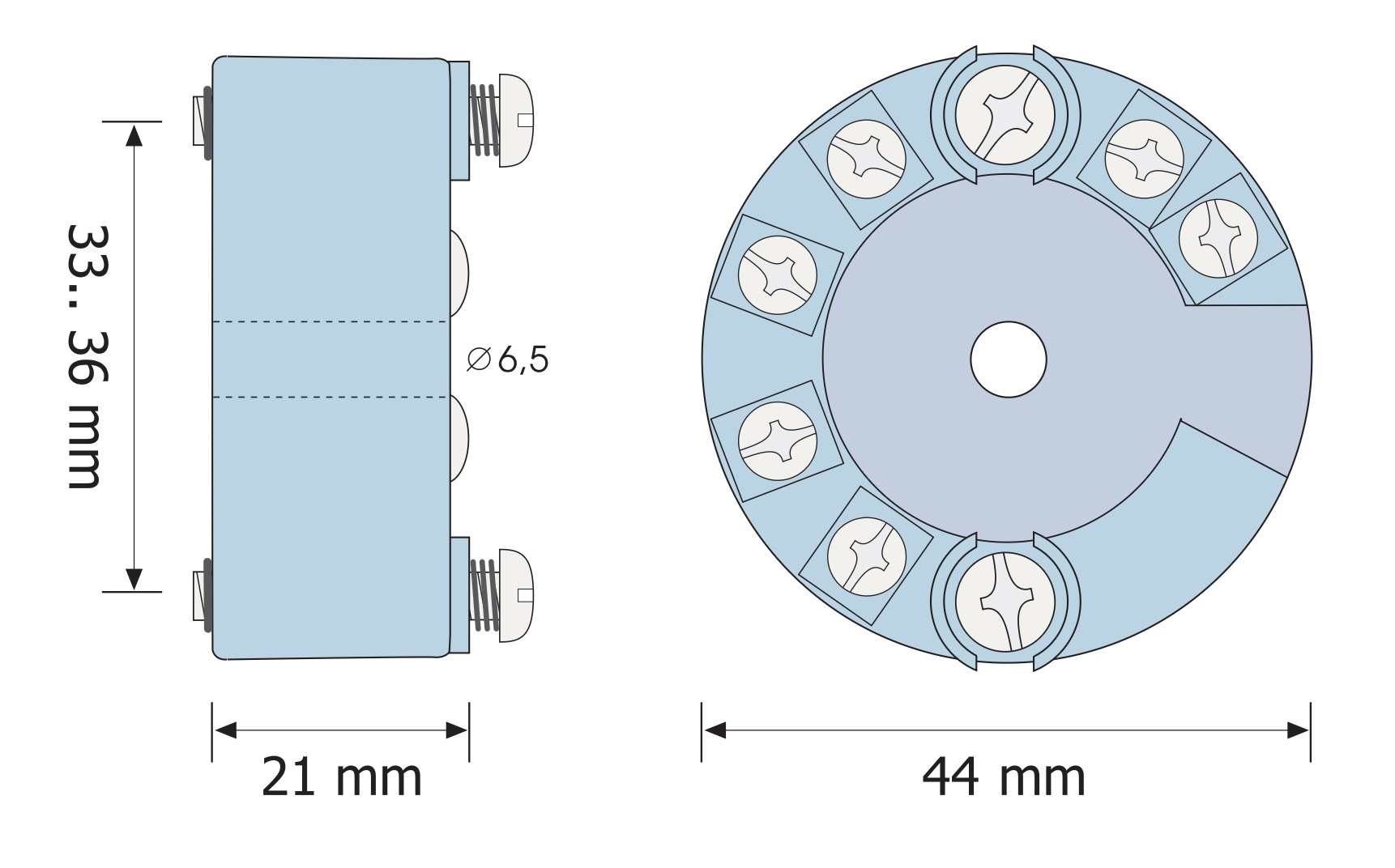

| Dimensions | Ø44 mm × 21 mm |
| IP rating | IP55 |
| Material | Nylon (PA66) |
| Weight | 30 g |
| Connection | Screw terminal |
| Max wire | 1 mm² |
