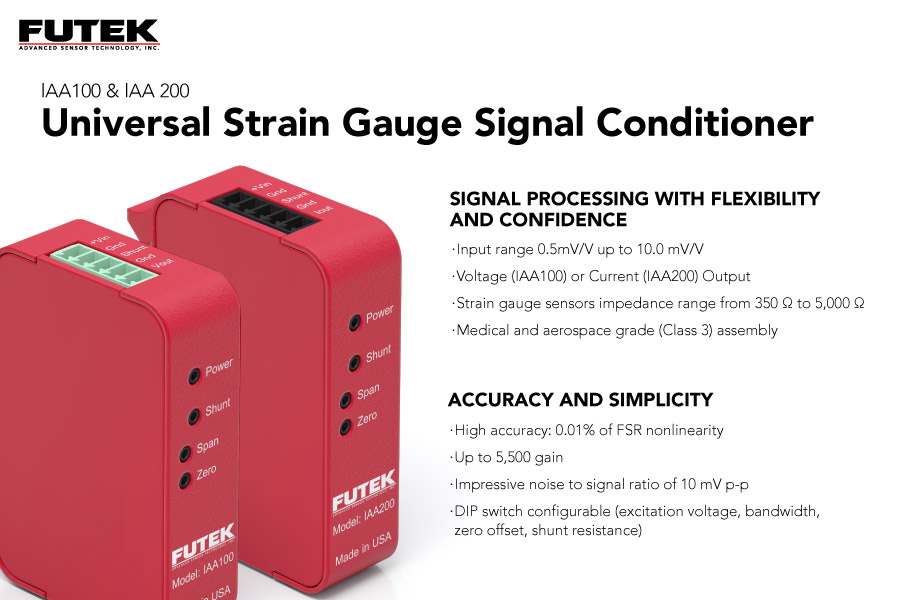

      IAA100 - Voltage Output Load Cell Amplifier

      € 450,-
      € 427,50 Excl. tax Delivery time: 4-6 working days
      IAA100, Full Bridge Strain Gage Signal Conditioning Voltage Amplifier, +/- 5 VDC +/- 10 VDC, 5 VDC Offset DIP Switch, Up to 25 kHz Bandwidth, Detachable Screw Terminal Connectors, Metallic Enclosure, integrated 35 mm DIN Clip... Show more
      • Reliable Partner ! Already 20 years at your service
      • Shipping from our own warehouse in The Netherlands
      • Secure shipping in EU with DHL Europlus
      • Questions : Call +31-(0)85-065 6325

      Product description

      Download Datasheet Download PDF

      Loadcell Amplifier, output ±10V (Wheatstone Bridge)

      UTEK's IAA100 Analog Amplifier with Voltage Output is FUTEK’s brand new general purpose amplifier solution for in-line amplification of any full bridge strain gauge type sensor with mV/V range output. The new model combines precision and ease of integration with a 0.005% total error. The IAA100 features an aluminum housing with an integrated DIN clip designed for industrial environment applications.

      Product Highlights

      • Bipolar Output, Differential Input
      • ± 5 or ± 10 VDC Outputs
      • Selectable 1 KHz, 10 KHz, 25 KHz Bandwidth
      • Bridge Excitation: 5 or 10 VDC (DIP Switch)
      • Ranges: 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 4.0, 10.0 mV / V (DIP Switch)
      • 256 Selectable Shunt Combinations: 30kΩ, 43.7kΩ, 60.4kΩ, 87.6kΩ, 100kΩ, 150kΩ, 300kΩ, 432kΩ (DIP Switch)
      • Externally Accessible Shunt Cal Activation Button
      • Digitally Controlled Remote Shunt
      • Internal Offset and Span Potentiometers
      • Sensor Polarity Reversal DIP Switch
      • Zero Shift DIP Switch
      • IPC-A-610 Class 3 Assembly (Aerospace and Medical Grade Devices)
      • CE approval and RoHS compliant



      Specifications

      Article number
      IAA100 - FSH03863
      SKU
      IAA100 - FSH03863
