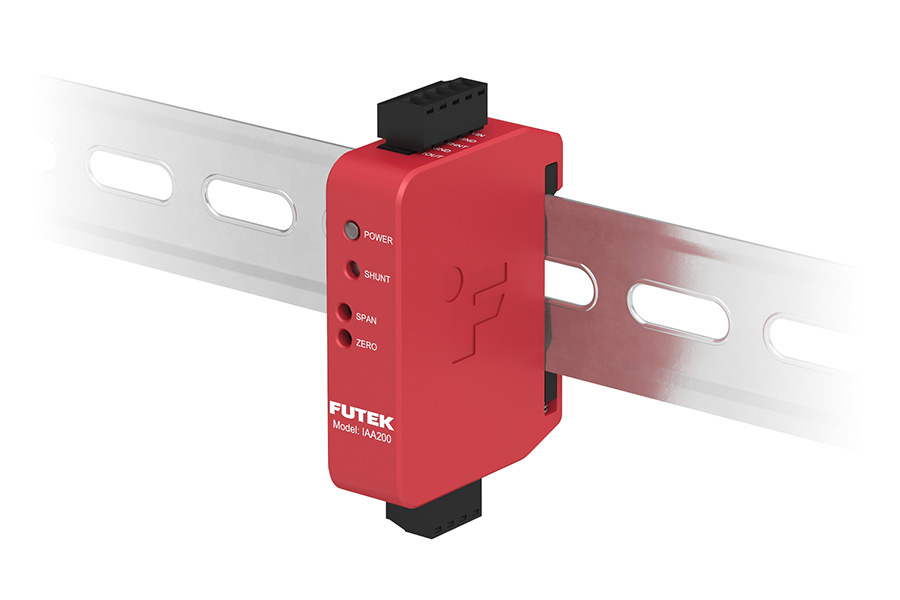

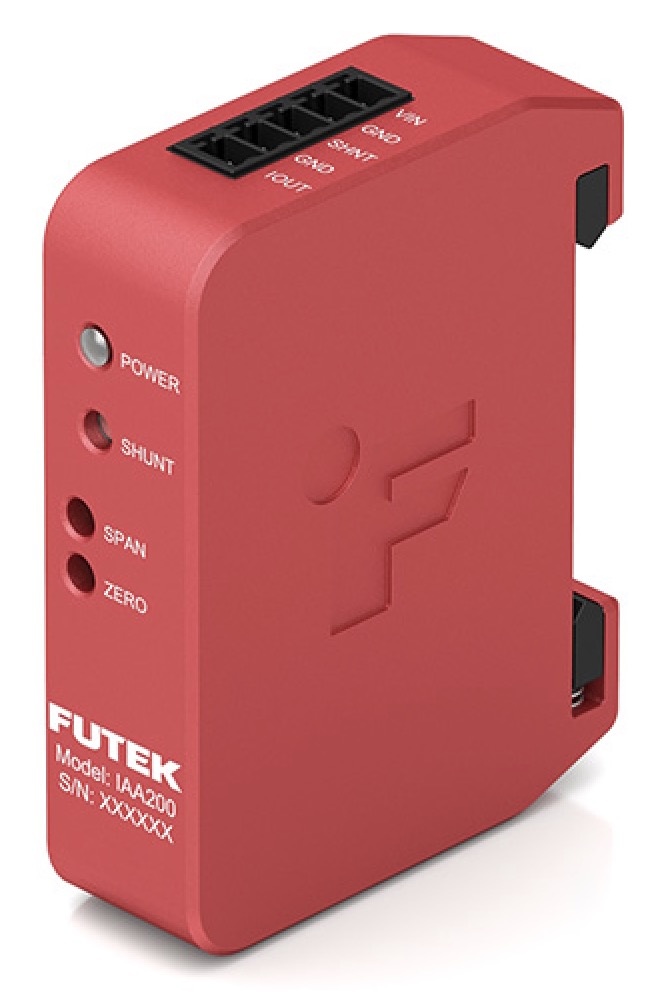

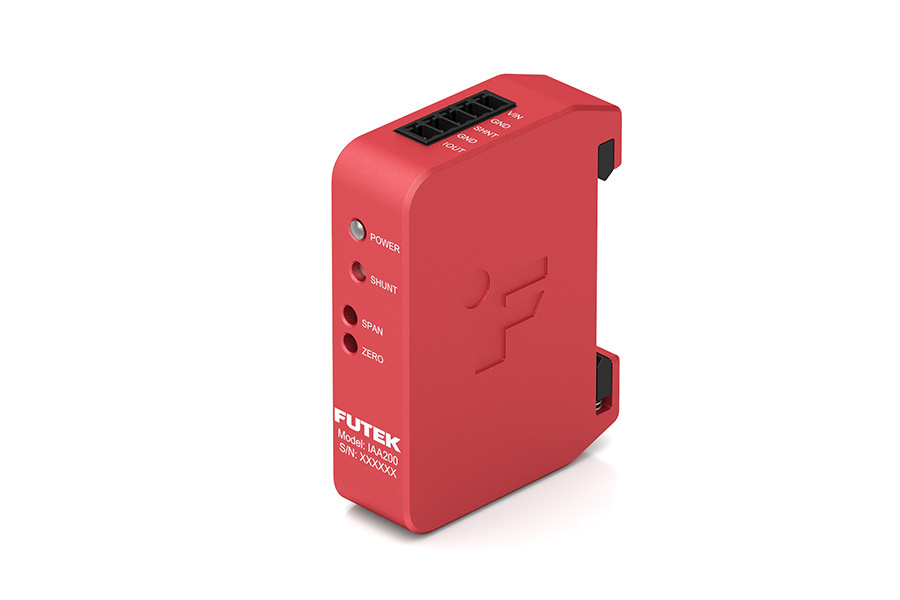

    IAA200 - 4-20mA Output Load Cell Amplifier

    € 450,-
    € 427,50 Excl. tax Delivery time: 4-6 working days
    IAA200, Full Bridge Strain Gage Signal Conditioning Current Transmitter, 4-20 mA, 12 mA Offset DIP Switch, Up to 25 kHz Bandwidth, Detachable Screw Terminal Connectors, Metallic Enclosure, integrated 35 mm DIN Clip... Show more
    • Reliable Partner ! Already 20 years at your service
    • Shipping from our own warehouse in The Netherlands
    • Secure shipping in EU with DHL Europlus
    • Questions : Call +31-(0)85-065 6325

    Product description

    Download Datasheet Download PDF

    Loadcell Amplifier, output 4-20mA (Wheatstone Bridge)

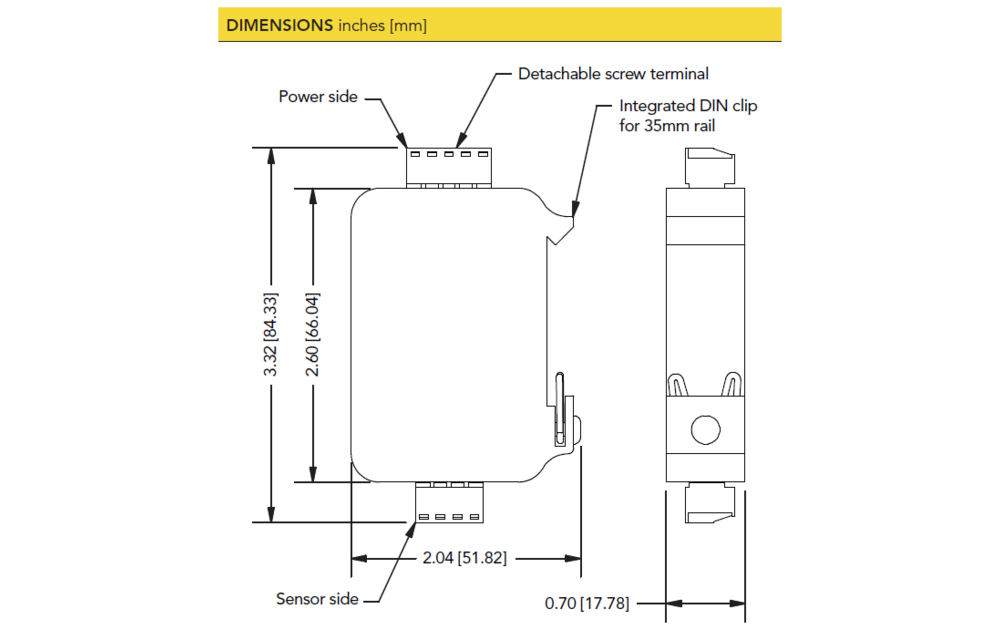

    FUTEK's IAA200 Analog Amplifier with Current Output is FUTEK’s brand new general purpose amplifier solution for in-line amplification of any full bridge strain gauge type sensor with mV/V range output. The new model combines precision and ease of integration with a 0.005% total error. The IAA200 features an aluminum housing with an integrated DIN clip designed for industrial environment applications.

    Product Highlights

    • Uni-directional/Bi-directional Output, Differential Input
    • 4-20 mA Output

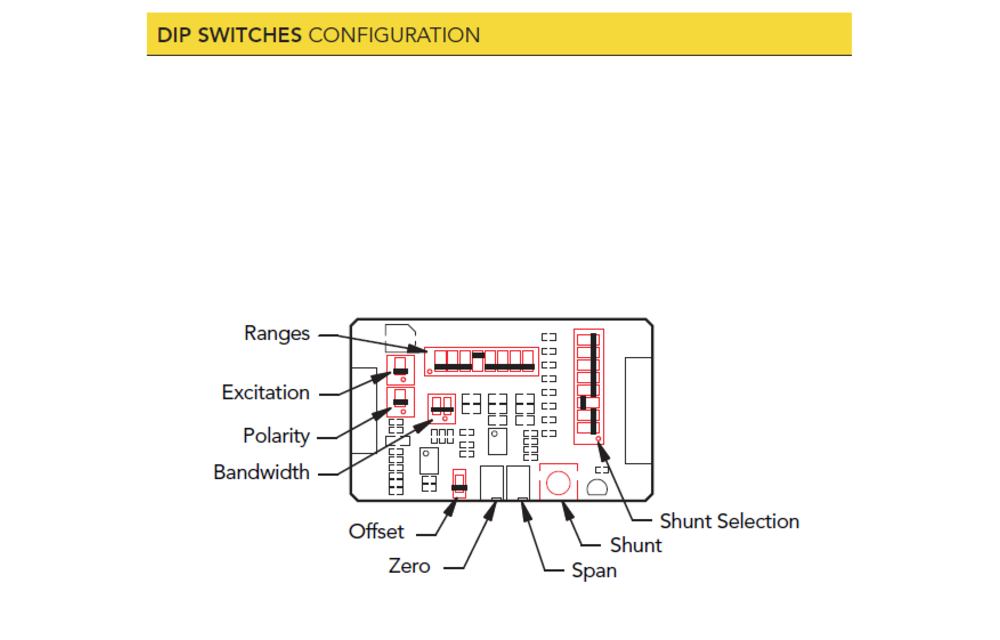

    • Bridge Excitation: 5 or 10 VDC (DIP Switch)
    • Ranges: 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 4.0, 10.0 mV/V (DIP Switch)
    • 256 Selectable Shunt Combinations: 30kΩ, 43.7kΩ, 60.4kΩ, 87.6kΩ, 100kΩ, 150kΩ, 300kΩ, 432kΩ (DIP Switch)
    • Externally Accessible Shunt Cal Activation Button
    • Digitallly Controlled Remote Shunt
    • Internal Span and Offset Potentiometers
    • Sensor Polarity Reversal DIP Switch
    • Zero Shift DIP Switch
    • Class 1 Certification for Aerospace and Medical Grade Devices



    Specifications

    Article number
    IAA200 - FSH03864
    SKU
    IAA200 - FSH03864
