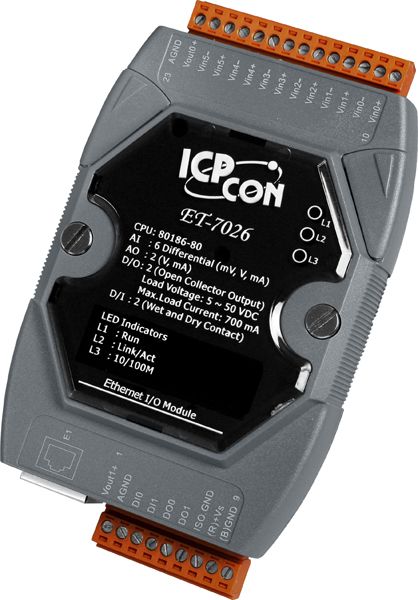

    ET-7026 CR

    Brand: ICPDAS
    € 255,67
    € 219,88 Excl. tax In stock
    Ethernet I/O Module with 6-ch AI, 2-ch AO, 2-ch DI, 2-ch DO... Show more
    • Reliable Partner ! Already 20 years at your service
    • Shipping from our own warehouse in The Netherlands
    • Secure shipping in EU with DHL Europlus
    • Questions : Call +31-(0)85-065 6325

    Product description



    Ethernet I/O Module/Modbus TCP/4AO/5DI/5DO


    Ethernet TCP to Analog output Module
    4 analog output channels, 0-10 VDC or 0~20 mA
    5 digital input channels (dry or wet contact)
    5 isolated digital output channels (open collector)
    Configuration, monitoring, and visualisation with standard Webbrowser
    Communication Protocol: Modbus UDP/TCP
    Operating Temperature: -25 ~ +75 °C
    Power Supply: 10-30 VDC (ET-7024) or 12-48VDC / POE (PET-7024)
    DIN-Rail Mounting

    The ET-7024/PET-7024/ET-7224/PET-7224 is a multifunction module includes 4 channels analog output, 5 channels digital input and 5 channels digital output. It provides a variety of programmable analog output options (+/-5 V, +/-10 V, 0 ~ 20 mA and 4 ~ 20 mA), and each analog output can be programmed to accept either current or voltage as output depending upon the position of corresponding jumper. The ET-7024/PET-7024/ET-7224/PET-7224 is fully RoHS compliant and provides 4 kV ESD protection as well as 2500 VDC intra-module isolation.

    Specifications

    Article number
    ET-7026-G CR
    SKU
    ET-7026-G CR
    ET-7026 CR
    € 255,67
    € 219,88
    Excl. tax
    ET-7026 CR
    ET-7026 CR
    In stock
