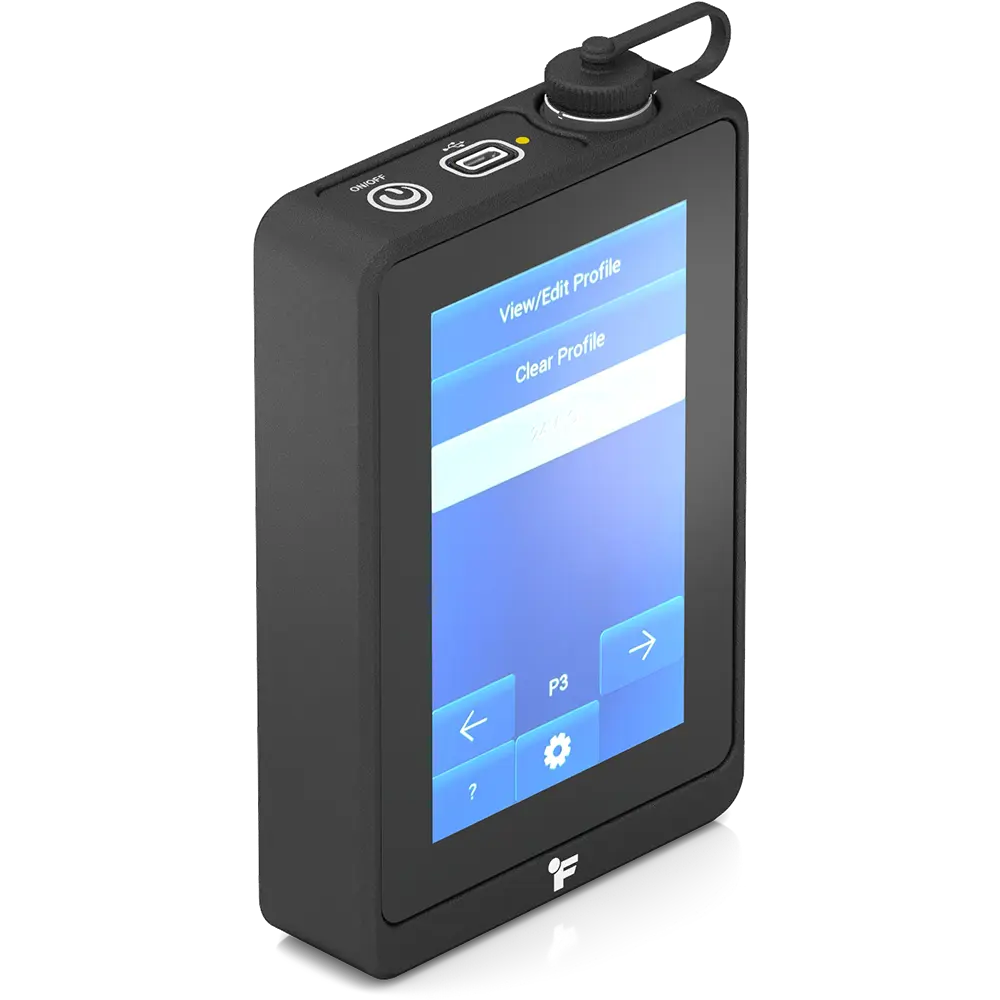

The SensLog is the latest advancement in FUTEK’s IHH line—a high-performance,battery-powered handheld display engineered for precise measurement and supports multiple input types for broad sensor compatibility (mV/V, mA, and VDC). Its large internal memory of up to 40 million storage points allows for extended data logging and in-depth post-process analysis. Built for demanding environments, the SensLog delivers reliable performance in research, testing, and industrial applications.
FUTEK’s ISO-certified calibration lab ensures precision and compatibility across a range of sensors. The IHH505 Pro supports 3 fixed and 13 user-definable calibration profiles, along with universal unit conversion for load, torque, pressure, temperature, and displacement—offering flexibility, accuracy, and simplified data interpretation.
Features
Unmatched Data Acquisition
Extended Logging Power
Protection Inside and Out
Adaptable and Flexible
Test Anywhere. Capture Everything. Never Miss a Byte.
Battery-powered touchscreen and logger for high-precision measurements from mV/V, VDC, and mA sensor inputs
The Senslog Handheld Display combines industry-leading precision with a rugged, portable design ideal for research, testing, and production environments. Compatible with a wide range of sensors and input types, it provides accurate, reliable measurements across applications from load testing to pressure monitoring. A flexible sampling rate of up to 4,800 SPS allows users to capture and log both static and dynamic events, while seamless integration with SENSIT® software enables effortless data download and analysis.
High-Precision Sensor Reader with Adjustable Sampling
The SensLog - Handheld Display delivers a Noise-Free Resolution (NFR) of up to 20 bits for ±5 mV/V inputs, 18.8 bits for 16 mA inputs, and up to 21.4 bits for ±10 VDC inputs, ensuring high-precision data acquisition. Its exceptionally low non-linearity of up to ±0.002% of Full-Scale Range (FSR) minimizes measurement errors. The integrated ADC offers twelve sampling rates ranging from 2.5 to 4800 SPS, allowing users to optimize data acquisition speed depending on their specific application.
Industrial-Grade Durability Meets On-the-Go Versatility

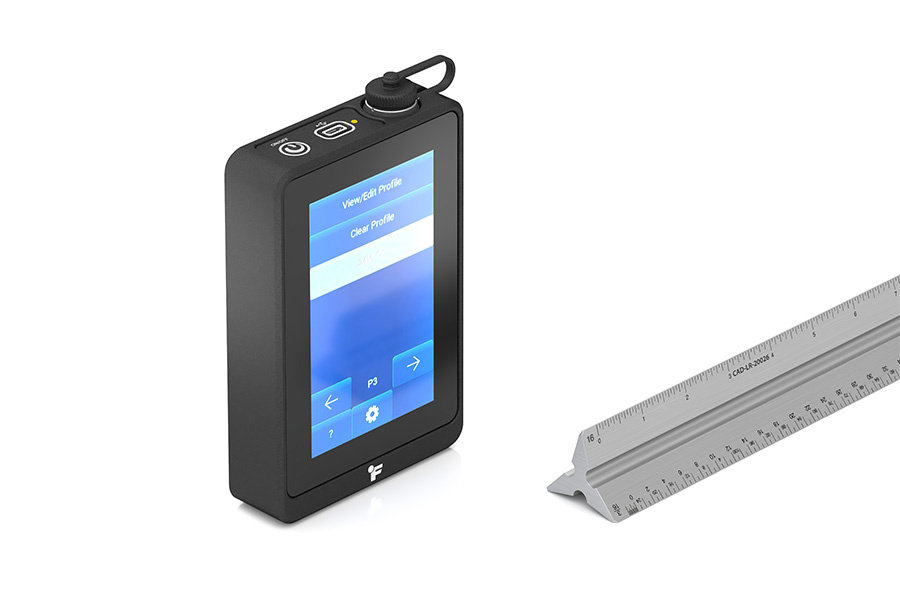

The SensLog-Handheld Display combines robust construction, a high-visibility display, and a portable design, making it a reliable tool for engineers in the field or on the production floor.
Engineered for Long-Duration Testing
The SensLog can store over 44,640,000 data points (across 16 logs at 2,790,000 points per log). Its large storage capacity supports applications requiring extensive, untethered data collection for long-duration tests. In addition to standard start-stop logging, the SensLog features duration-based data logging, enabling users to capture data over a specific time frame. It also offers trigger-based logging, which automatically starts a recording when a measurement rises above or falls below a user-defined threshold.
Streamlined Sensor Setup with Built-In TEDS Recognition
The SensLog supports IEEE21451.4 TEDS auto recognition, significantly mitigating setup errors by streamlining the sensor integration process. Because of this plug and play functionality, you can seamlessly switch between different sensors with confidence, minimizing downtime and human error.
Seamless Data Collection and Analysis
The SensLog- Handheld Display seamlessly integrates with SENSIT® software, allowing users to collect, analyze, and download data immediately with no additional setup. The live graphing feature in SENSIT® allows users to visualize data real time, facilitating informed decision-making. FUTEK also offers additional integration options including LabVIEW, ASCII output, enabling customers to easily export sensor data into existing systems
Enhanced Fault Detection for Reliable Performance
The SensLog’s design integrates advanced fault detection and diagnostic capabilities. These features help minimize measurement errors, safeguard equipment, and ensure uninterrupted operation in demanding environments. Its safety features include:
Adaptable Mounting for Field, Lab, and Production Use

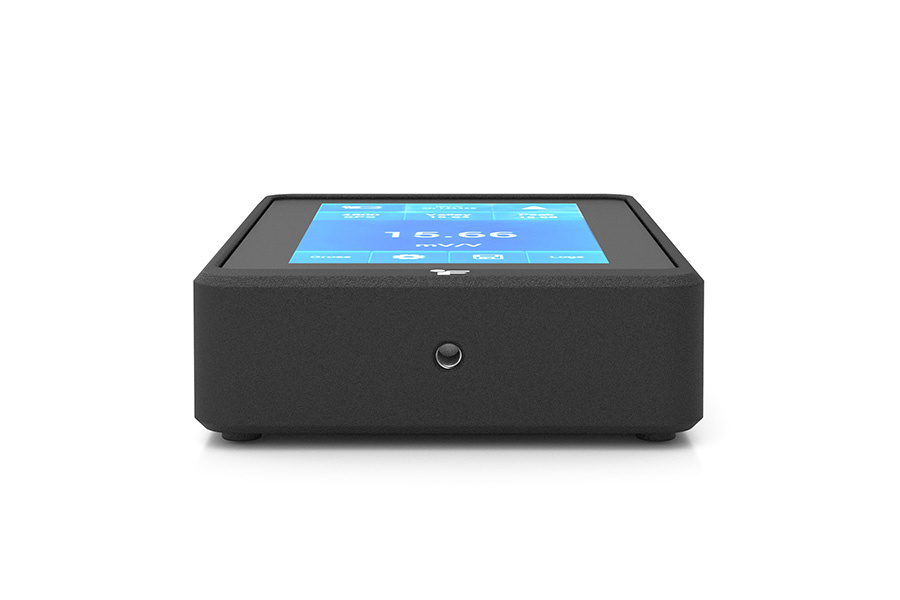

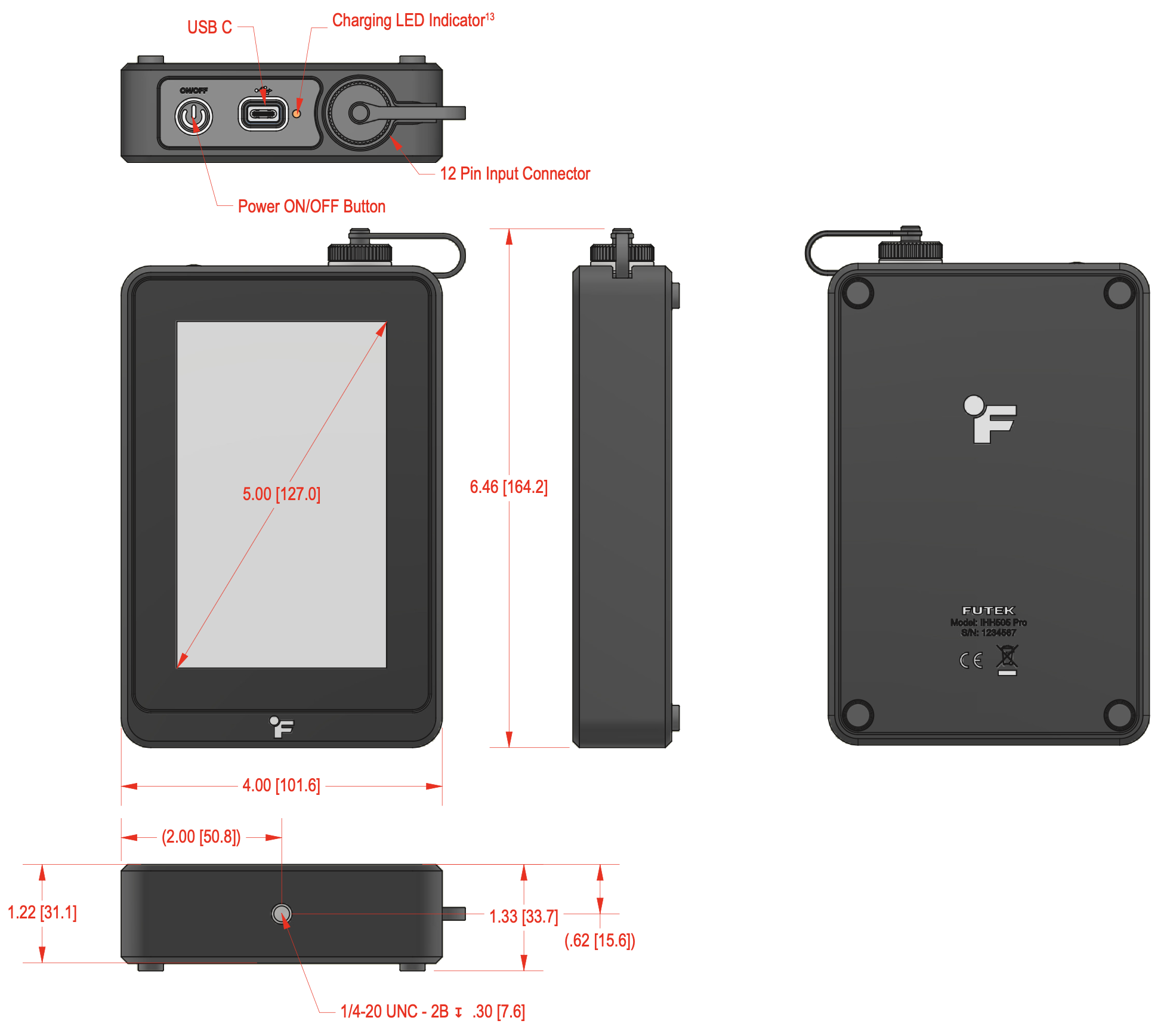

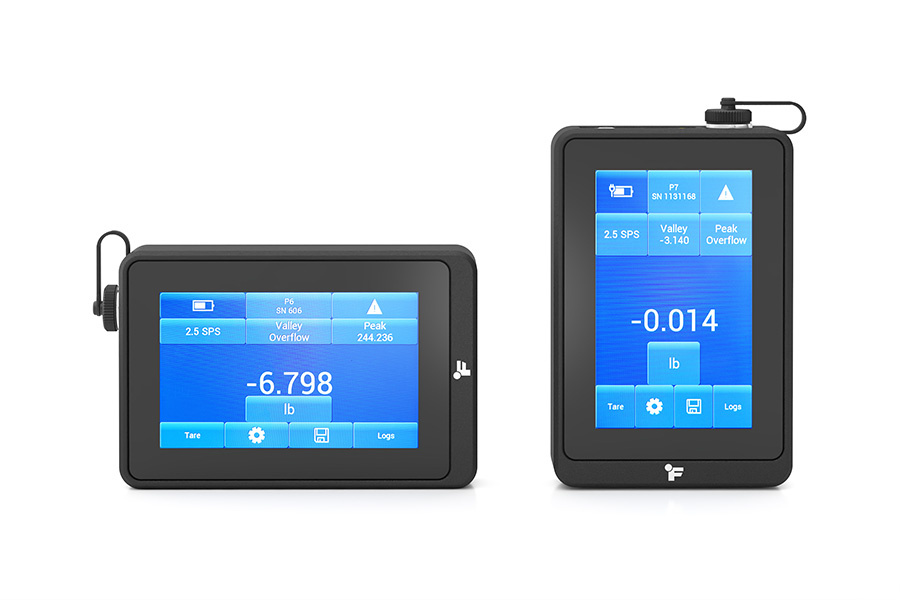

The SensLog-Handheld Display is equipped with a ¼-20 threaded mounting pattern compatible with standard accessories. Its auto-rotating display supports both portrait and landscape modes for ease of use across multiple mounting configurations.
Features include:
Backward-Compatible Connectivity

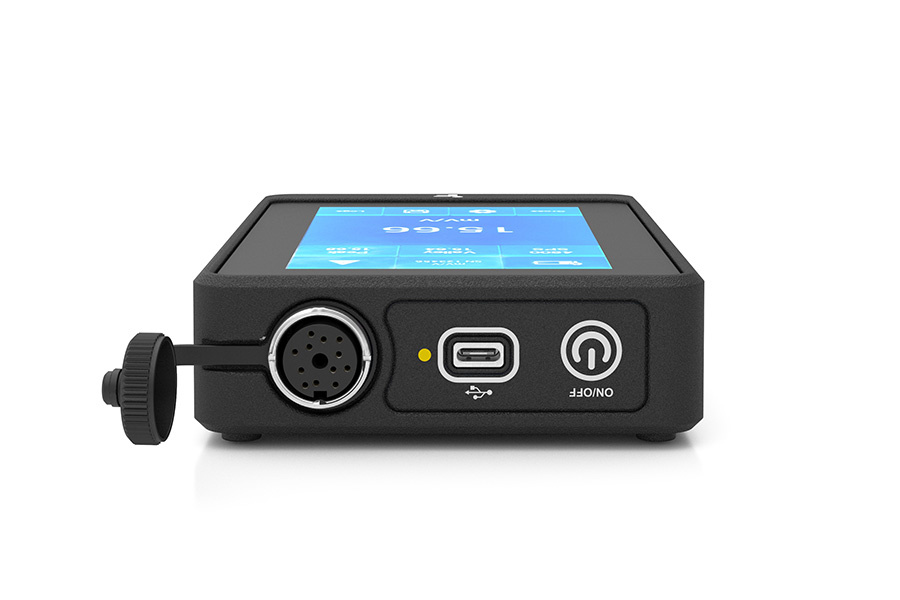

The SensLog Handheld Display features a 12-pin Binder connector with the same pinout as its predecessor, IHH500, allowing users to reuse existing sensors and cables without requiring new accessories or adapters. This backward-compatible design ensures a smooth upgrade path for existing IHH500 Pro and Pro Elite users, minimizing downtime and additional costs.
