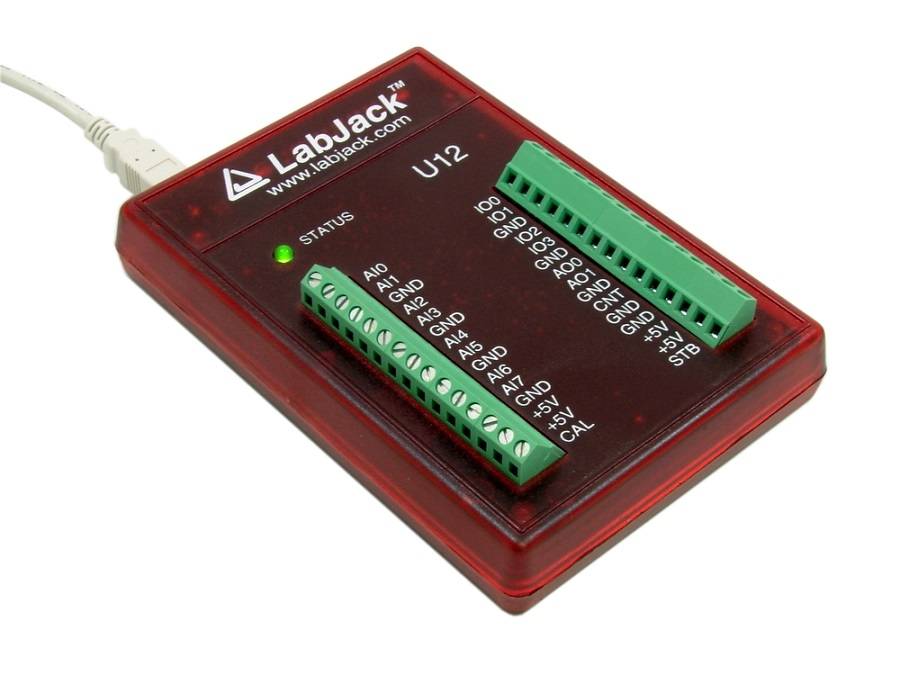

    USB-based multifunction data acquisition and control. A breakthrough price/performance ratio.  This is the original LabJack from LabJack Corporation USA !

    Scope of supply

    • LabJack U12
    • USB cable
    • Screwdriver
    • Cd-rom with software and manual (PDF)



    Features of LabJack U12

    • 8 Single-Ended, 4 Differential 12-Bit Analog Inputs
    • ±10 Volt Analog Input Range
    • PGA with Gains of 1, 2, 4, 5, 8, 10, 16, or 20 V/V
    • Up to 8 kSamples/Sec (Burst) or 1.2 kSamples/Second (Stream)
    • Supports Software or Hardware Timed Acquisition
    • Supports Triggered Acquisition
    • 2 Analog Outputs
    • 20 Digital I/O (Up to 50 Hz per I/O)
    • 32-Bit Counter
    • Watchdog Timer Function
    • Easy to Use Plug-and-Play USB Device
    • Connect Up to 80 LabJacks to One USB Port
    • Complete Software Control, No Jumpers or Switches
    • No Power Supply Needed
    • Includes Application and Driver Software
    • Includes LabVIEW VIs
    • Works with Windows 98SE, ME, 2000, or XP
    • Includes USB Cable and Screwdriver
    • Dimensions 102 x 153 x 26 mm


    Analog Inputs
    The LabJack U12 has 8 screw terminals for analog input signals (AI0-AI7). These can be configured individually as 8 single-ended channels, 4 differential channels, or combinations in between. Each input has a ±10 volt input range, 12-bit resolution, and an input bias current of ±90 microamps. Differential channels can make use of the low noise precision PGA to provide gains up to 20, giving an effective resolution greater than 16-bits. The LabJack U12 is capable of both software and hardware timed acquisition. When using software timed acquisition (also called command/response), the PC sends a command to the LabJack, and it responds with data. This mode can acquire 4 channels at up to 50 samples/second per channel, or 8 channels at up to 25 samples/second per channel. When using hardware timed acquisition, the PC sends a command to the LabJack telling it to start a burst or stream mode acquisition. Both burst and stream mode take advantage of the LabJack's precision timing crystal and high-speed sample buffer. In burst mode, up to 4,096 samples will be acquired from 1-4 channels at up to 8,192 samples/second and stored in the buffer. After the acquisition is complete, the data is transferred to the PC. A hardware trigger can be configured for burst mode that starts the acquisition when a digital input changes state. In stream mode, data is acquired from 1-4 channels at up to 1,200 samples/second and stored in the LabJack buffer. Simultaneously, the data is transferred from the LabJack buffer to the PC buffer, allowing the data to be streamed to disk continuously. Click here for more info on data rates.

    Analog Outputs
    The LabJack U12 has 2 screw terminals for analog output signals (AO0 & AO1). Each analog output can be set to a voltage between 0 and the supply voltage (+5 volts nominal) with 10-bits of resolution. The analog outputs are controlled in command/response mode at up to 50 Hz per channel.

    Digital I/O

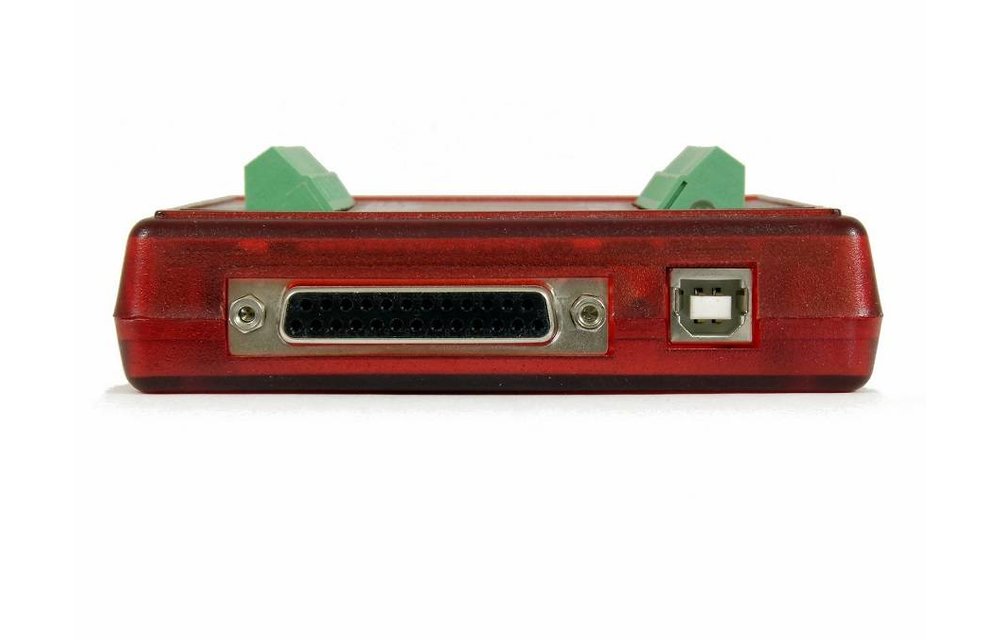

    The LabJack U12 has 20 digital I/O channels which can be individually configured as input or output. Connections to 4 of the digital I/O are made with the built-in screw terminals (IO0-IO3). These 4 channels have built-in overvoltage/short-circuit protection. As inputs or outputs, they are controlled/read in command/response mode at up to 50 Hz per bit. As inputs only, they can be read with the high-speed burst and stream modes. The remaining 16 digital I/O are accessed through the DB-25 connector and controlled/read in command/response mode at up to 50 Hz per bit. These channels can sink or source up to 25 mA each (total sink or source current of 200 mA max for all 16), allowing direct interface to many relays.

    Counter
    There is one 32-bit counter available on the LabJack U12 (screw terminal CNT), capable of counting frequencies up to 1 MHz. The counter is read in command/response mode at up to 50 Hz or up to 300 Hz in hardware timed stream mode.

    Watchdog Timer Function for Unattended Operation
    The LabJack U12 also has a watchdog timer function available which can change the states of digital I/O if the LabJack does not successfully communicate with the PC within a specified timeout period. This function could be used to reboot the PC allowing for reliable unattended operation.

    Portable Data Acquisition and Control
    When used with a notebook PC, the LabJack U12 becomes a convenient portable data acquisition and control system. The watchdog timer function allows the development of a system which has the reliability of a datalogger with the power of a PC. The low-power design of the LabJack U12 allows it to draw all it's power from the USB port. Also, no UPS is needed when using a LabJack U12 with a notebook PC. In the event of power loss, both the LabJack and the notebook will continue to operate.

    High Channel Count Applications
    By using USB hubs, up to 80 LabJacks can be connected to a single USB port, providing an inexpensive solution for low-speed high channel count applications.

    Free Example Application Software
    Includes various example applications, including LJlogger and LJscope. LJlogger provides datalogger type functionality. It reads all inputs, controls all outputs, writes real time data to the Internet or hard disk, and sends email when events are triggered. LJscope is a simple virtual oscilloscope program. This software is free and can be downloaded from labjack.com for evaluation.

    Free Driver Software
    Drivers are provided as a DLL which can be called from most programming languages. Also included are an ActiveX wrapper and LabVIEW VIs which call all the functions in the DLL. Most driver functions have a demo input, so applications can be developed and tested without hardware.

    Includes Everything for Out-of-the-Box Operation
    Everything needed (software, screwdriver, and USB cable) is included with the LabJack U12. Installation is very simple and takes just a few minutes: Connect to the USB port on a PC running Windows 98SE/ME/2000/XP using the included cable. The low-level drivers, which come with Windows, will be installed automatically. Run the LabJack installation program to install the high-level drivers and example applications.

    Optional Accessories

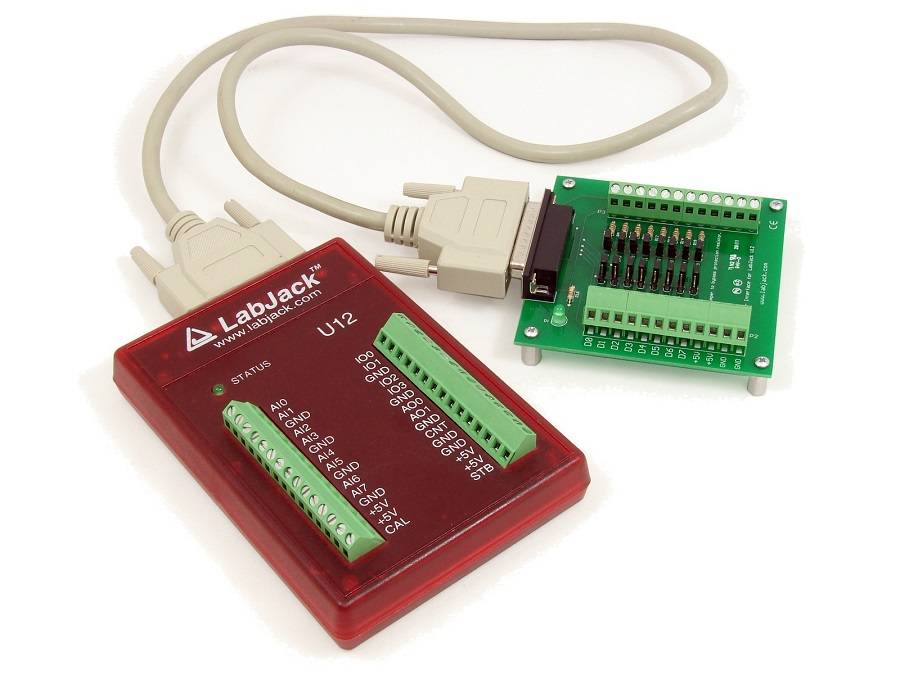

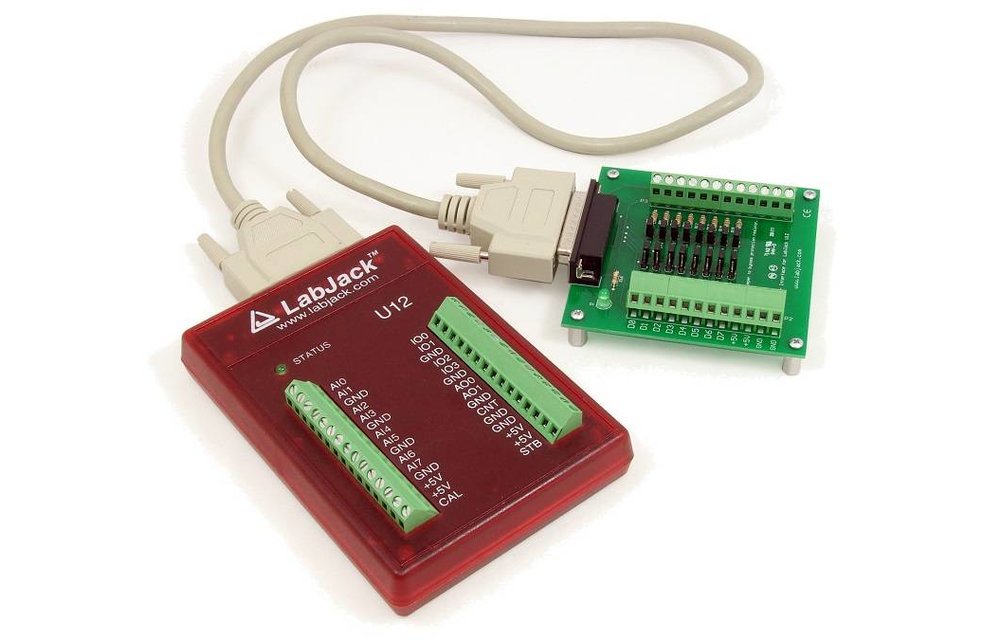

    The LabJack U12 comes complete, but we do offer a few optional accessories. The CB25 provides screw-terminal connections and short-circuit/overvoltage protection for the 16 I/O which are accessed through the DB25 connector. Please look at our accessories page for additional equipment suitable for the LabJackU12.
