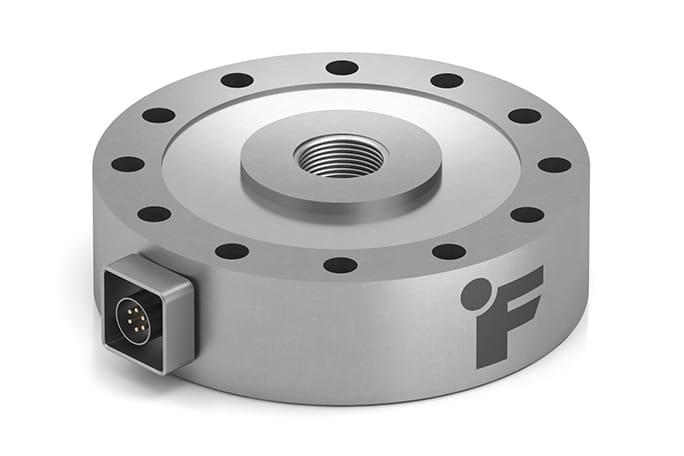

      LCF500 Universal Pancake Load Cell

      € 1.800,-
      € 1.710,- Excl. tax Email or Call us for delivery time
      LCF500 , Low Profile Universal Pancake , RoHS Compliant, 4 mV/V , Material - 17-4 PH S.S. , M33x2-Thread , 6 Pin Bendix Receptacle, PT02E-10-6P... Show more
      2 variations FSH04266 - 25000lb (111000 N) - M33 X 2
      • Reliable Partner ! Already 20 years at your service
      • Shipping from our own warehouse in The Netherlands
      • Secure shipping in EU with DHL Europlus
      • Questions : Call +31-(0)85-065 6325

      Product description

      Download Datasheet Download PDF

      Model LCF500 is a Pancake Load Cell designed for tension and compression applications. The diaphragm has twelve bolt holes along the outer diameter for easy mounting. The flexure is made of a robust 17-4 Alloy Steel and the capacity ranges from 25,000 lbs and 50,000 lbs, making it ideal for high capacity applications. You will also find options for Metric Threads, Fatigue Rating, and Amplified Version readily available.

      The LCF500 Pancake Load Cell offers high accuracy with a Nonlinearity of ±0.1% and Deflection of 0.002” to 0.005” nominal. The standard LCF500 Pancake Load Cell can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for quick delivery. Similar to our entire Load Cell product line this model is manufactured in the USA and uses metal foil strain gauge technology.

      Features

      • Low profile design
      • For use in compression
      • Utilizes metal foil strain gauge technology
      • Highly resistant to off-axis loading

      This sensor needs a connection cable, see related products.

      Specifications

      Article number
      FSH04266 - 25000lb (111000 N)
      SKU
      FSH04266 - 25000lb (111000 N) - M33 X 2
