    LLB350 Miniature Load Button with Threaded/Tapped Holes

    € 600,-
    € 570,- Excl. tax Email or Call us for delivery time
    LLB350, Subminiature Load Button , RoHS Compliant, #4-40 Tapped Holes , Material - 17-4 PH S.S. , 29 Awg 4 Conductor Spiral Shielded Teflon Cable , 10 ft Long... Show more
    2 variations FSH03999 - 25lb (111N)
    • Reliable Partner ! Already 20 years at your service
    • Shipping from our own warehouse in The Netherlands
    • Secure shipping in EU with DHL Europlus
    • Questions : Call +31-(0)85-065 6325

    Product description

    Download Datasheet Download PDF

    LLB350, Subminiature Load Button , RoHS Compliant, #4-40 Tapped Holes , Material - 17-4 PH S.S. , 29 Awg 4 Conductor Spiral Shielded Teflon Cable , 10 ft Long

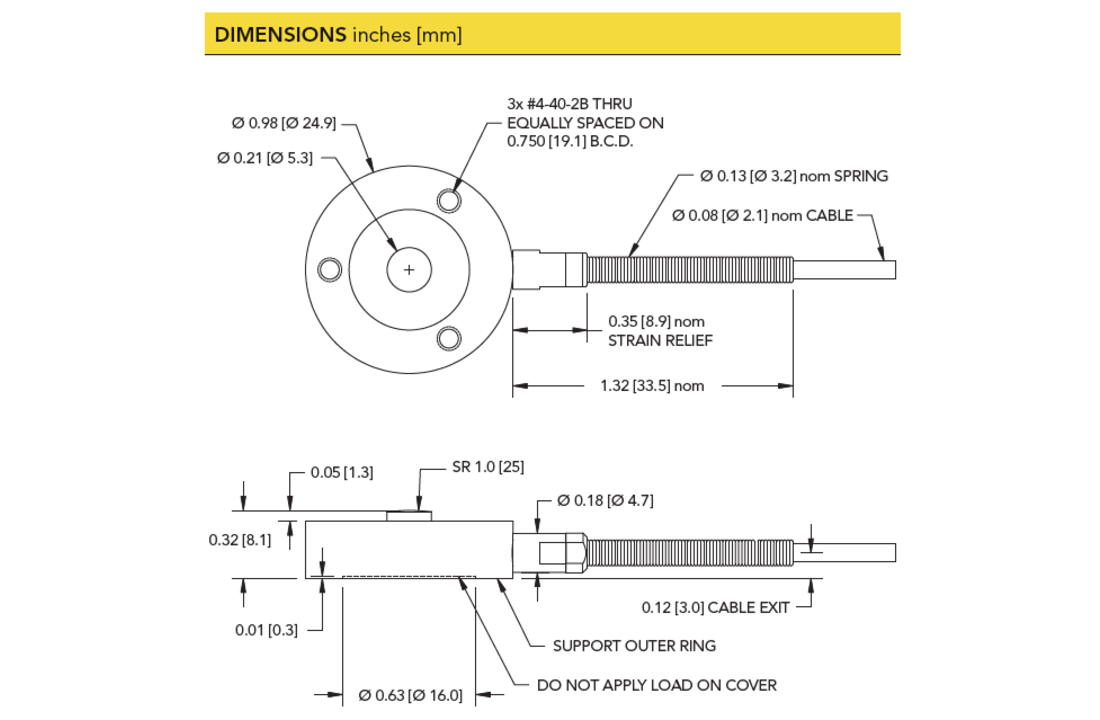

    Model LLB350 is a Miniature Load Button with Threaded Mounting Holes built for Press, or Inline compression applications. The standard LLB350 Miniature Load Button model has a very robust construction available in 17-4 Stainless Steel, with a 1.0” outside diameter and a 10 feet long 29 AWG 4 conductor shielded Teflon cable. You will also find options for external matched output readily available.

    Although Load Button Load Cells are traditionally not known for their high accuracy, FUTEK engineers have dispelled this concept by continuously improving the accuracy of this product. The Miniature Load Button offers high accuracy. It has Nonlinearity of ±0.5% and Deflection of 0.003” nominal. The LLB350 Miniature Load Button is manufactured in the USA and uses metal foil strain gauge technology.

    Features
    • Ultra low deflection
    • Robust strain relief
    • 17-4 PH stainless-steel construction
    • For use in compression
    • Utilizes metal foil strain gauge technology

    Specifications

    Article number
    FSH03999 - 25lb (111N)
    SKU
    FSH03999 - 25lb (111N)
    LLB350 Miniature Load Button with Threaded/Tapped Holes
    € 600,-
    € 570,-
    Excl. tax
    LLB350 Miniature Load Button with Threaded/Tapped Holes
    FSH03999 - 25lb (111N)
    Email or Call us for delivery time
