    LSB302 S-Beam Tension and Compression Load Cell

    € 600,-
    € 570,- Excl. tax Email or Call us for delivery time
    LSB302, Tension & Compression Load Cell , RoHS Compliant, Material - 2024-T4 , M6x1-Thread , Overload Protection... Show more
    4 variations FSH04205-25lb (111N) - Lemo Connector
    • Your reliable partner since 21 years
    • Shipping from our own warehouse !
    • Secure shipping in EU with DPD Traceable
    • Questions : Call +31-(0)85-065 6325

    Product description

    Download Datasheet Download PDF

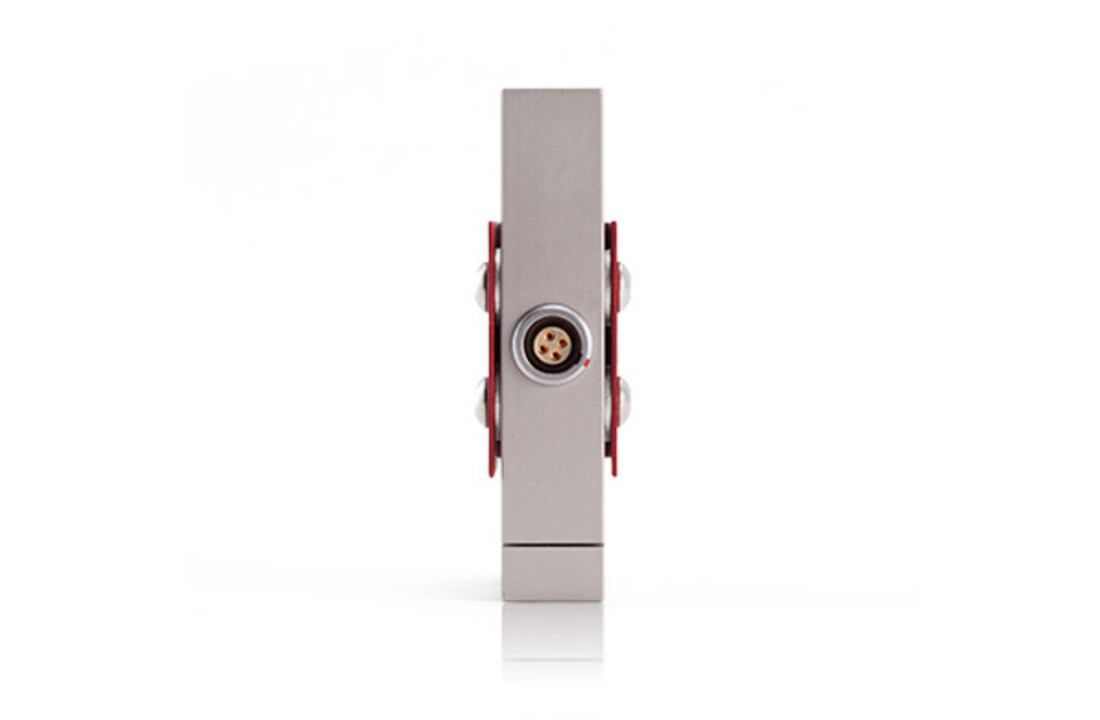

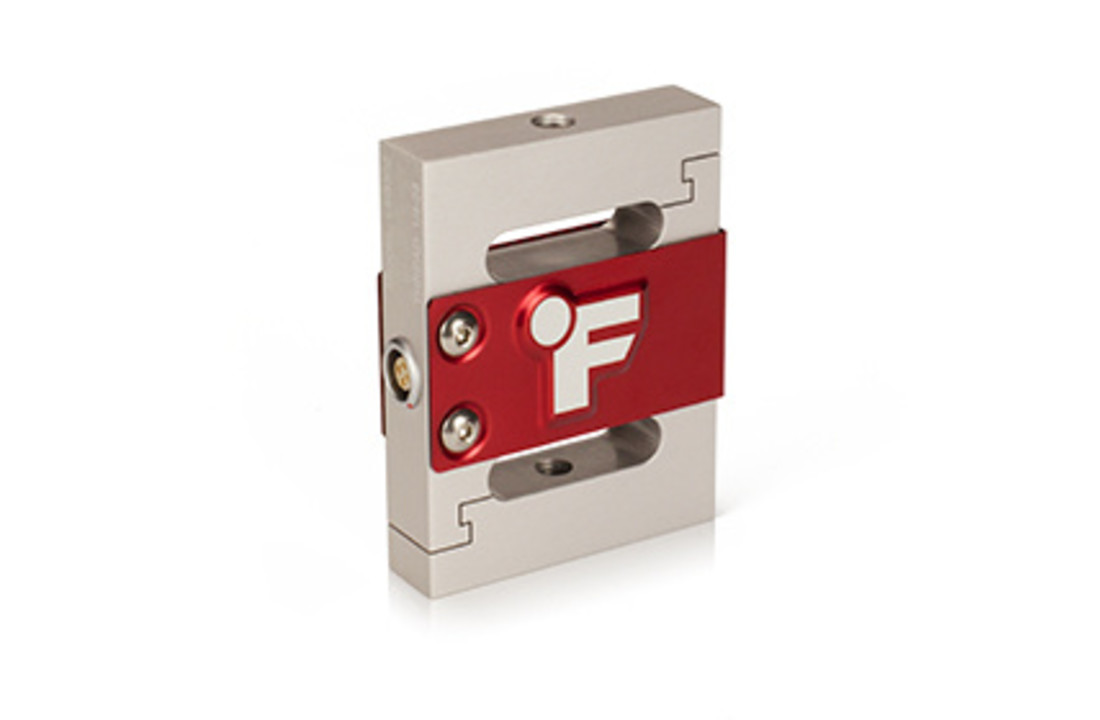

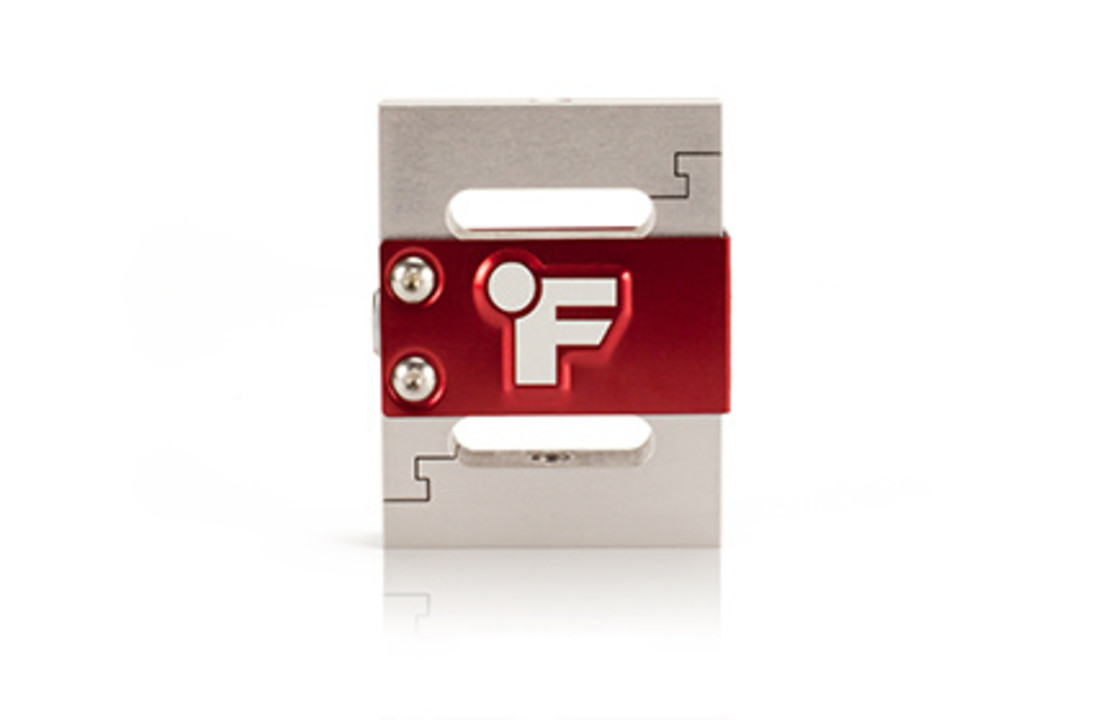

    LSB302 S-Beam Tension and Compression Load Cell

    The S Beam Load Cell offers a compact design for platforms, silos, or scales. The Standard LSB302 S Beam Load Cell model has female threads, comes in Anodized Aluminum construction (25 lbs – 300 lbs), and a 4 Pin Lemo Receptacle. It is also available in metric threads.

    The S Beam Load Cell has a high accuracy with a Nonlinearity of ±0.05%, deflection of 0.01” nominal and an operating temperature up to +93 °C. This model is manufactured in the US and uses metal foil strain gauge technology.

    Product Highlights

    • Available in Anodized Aluminum
    • Built in overload protection in both directions
    • Metric Threads Available
    • In both Tension & Compression
    • Utilizes Metal Foil Strain Gauge Technology
    • Weight: 5 oz

    Note: You need a connection cable with this sensor, see related products

    This loadcell can also be deliverd with cable outlet, wihtout connector, Contact us for price and availability

    Specifications

    Article number
    FSH04205-25lb (111N) - Lemo Connector
    SKU
    FSH04205-25lb (111N) - Lemo Connector
