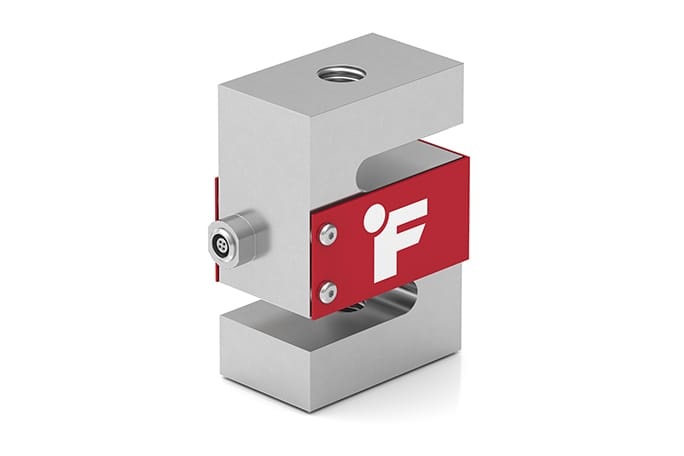

    LSB400 S-Beam Tension And Compression Load Cell

    €1.250,-Excl. tax Email or Call us for delivery time
    LSB400 Tension & Compression Load Cell , Material - 17-4 PH S.S. , M16x2-Thread , 4 Pin Lemo Receptacle, EGG.0B.304.CLL... Show more
    2 variations FSH01594 - 5000lb (22240N) M16 Connector
    • Reliable Service since 22 years
    • Shipping from our own warehouse !
    • Secure shipping in EU with DPD Traceable
    • Questions : Call +31-(0)85-065 6325

    Product description

    Download Datasheet Download PDF

    The S Beam Load Cell offers a compact and robust design for platforms, silos, or scales. The Standard LSB400 S Beam Load Cell model has female threads, comes in 17-4 Stainless Steel construction (5,000 lbs – 10,000 lbs). It is also available in metric threads.

    The S Beam Load Cell has a high accuracy with a Nonlinearity of ±0.05%, deflection of 0.01” nominal and an operating temperature of -60° F to 200° F. This s beam Load Cell can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for 24 hour shipping. Similar to our entire Load Cell product line this model is manufactured in the US and uses metal foil strain gauge technology.

    Product Highlights:

    • Available in 17-4 Stainless Steel
    • Metric Threads Available
    • In both Tension & Compression
    • Utilizes Metal Foil Strain Gauge Technology
    • Weight: 53 oz





    Specifications

    Article number
    FSH01594 - 5000lb (22240N) M16 Connector
    SKU
    FSH01594 - 5000lb (22240N) M16 Connector
