      Pt100/4-20mA, Class A, G1/2, M12 Temperature Transmitter

      € 68,- Excl. tax Delivery time: 4 weeks
      Pt100/4-20mA, Class A, G1/2, M12 Temperature Transmitter... Show more
      • Reliable Partner ! Already 20 years at your service
      • Shipping from our own warehouse in The Netherlands
      • Secure shipping in EU with DHL Europlus
      • Questions : Call +31-(0)85-065 6325

      Product description

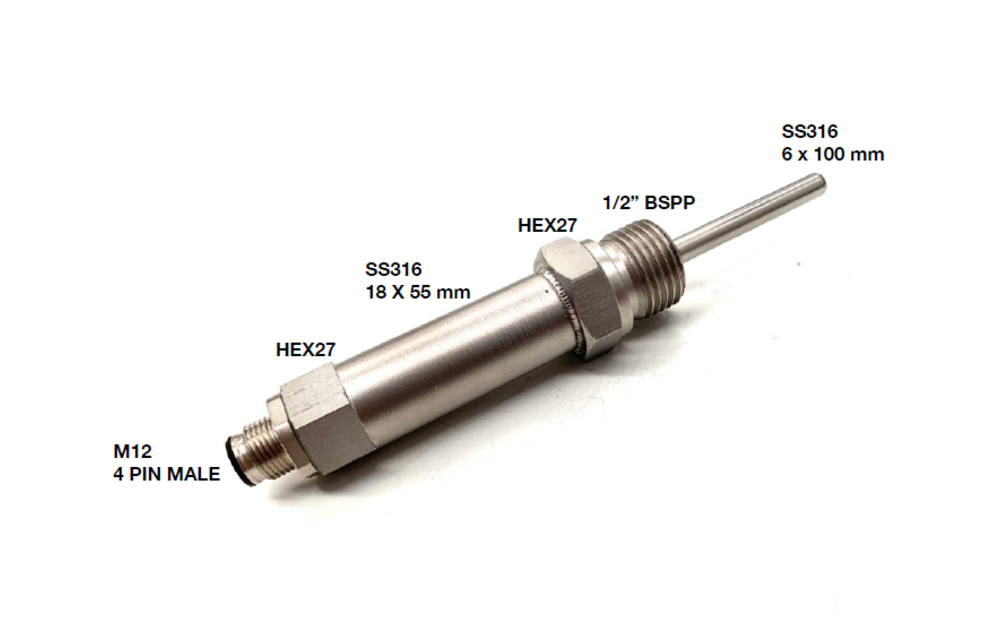

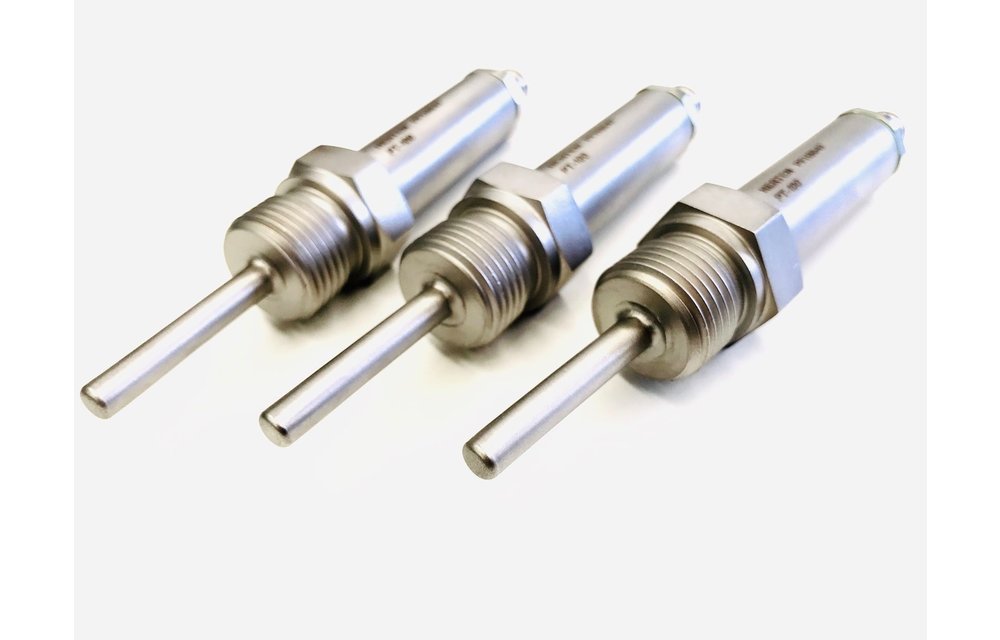

      PIMZOS Compact RTD Sensor with 4-20mA Transmitter and M12 Connector

      The PIMZOS M12 Temperature sensors combines a precision RTD sensing element and transmitter electronics in a single stainless steel temperature transmitter probe. An M12 quick-disconnect provides connection to the loop powered 4-20 mA output signal that provides a linear representation of measured temperature and is compatible with PLCs, SCADA systems, and digital panel meters. These PT100 sensors are made with 316L Stainless Steel housings for strength and corrosion resistance. These sensors include a 4-pin, M12 A-Coded plug connector for easy assembly to patch cables or extension cables, as well as 1/2” or 1/4” thread for easy installation into an existing threaded port.
      These temperature sensors are suited for temperature monitoring. Because of its compact design is suitable for use in a great number of technological processes in food/pharmaceutical and biotechnology.

      Features

      RTD and transmitter electronics combined in a single stainless steel probe
      Small Compact All-In-One Construction
      Ready to use with preconfigured temperature measuring ranges
      1/4” or 1/2” male BSP threads for direct mounting
      4-20 mA output, 2 wire system
      M12 quick-disconnect electrical connection
      Corrosion Resistant Stainless Steel Probe Tubes

      Specifications

      Operating Voltage: 10 to 30 Vdc ( protected for over voltage and reverseconnection)
      Electrical connection: M12 connector, 4 Pin
      Process Connection: 1/2” - 1/4” BSPP Male
      Analog Output: 4 to 20 mA, 2 wire system
      Integrated 4-20 mA transmitter, 2 wire system
      Range 4-20 mA : -50…+150°C ( Other ranges on request)
      Accuracy of RTD (Pt100) : Class A accuracy as standard
      AISI 316L (1.4404) body and wetted parts
      Operating pressure : 10 bar maximum
      Highly accurate even with short insertion lengths
      Temperature range of the 4-20mA transmitter (ambient) : -40 to +85°C -
      Humidity: 10-95% non condensing

      Benefits

      High Accuracy Temperature Measurement and Repeatability
      Self Contained, Tamper Proof Constructions
      Simple Installation with Industry Standard Process Fittings
      Integrated Transmitter Design Fits into Limited Space
      Ideal for a Wide Range of Industrial Applications

      Application Examples

      Semiconductor Wet Bench Corrosive Environments
      Energy Management Delivery Systems
      Chemical and Petrochemical Plants
      Hydraulic Systems Temperature and Viscosity Control
      Sludge and Waste Water Treatment
      Heat Recovery and Co-Generation Systems

      Specifications

      Article number
      PFH15332
      SKU
      PFH15332
      Pt100/4-20mA, Class A, G1/2, M12 Temperature Transmitter
      € 68,-
      Excl. tax
      Pt100/4-20mA, Class A, G1/2, M12 Temperature Transmitter
      PFH15332
      Delivery time: 4 weeks
