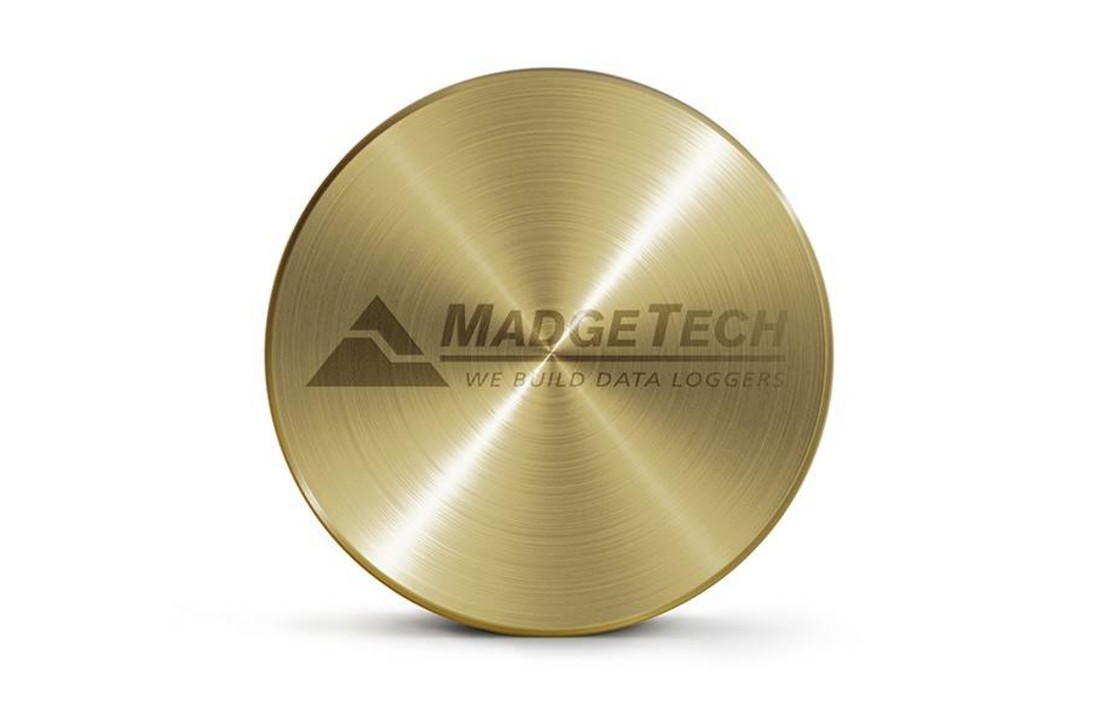

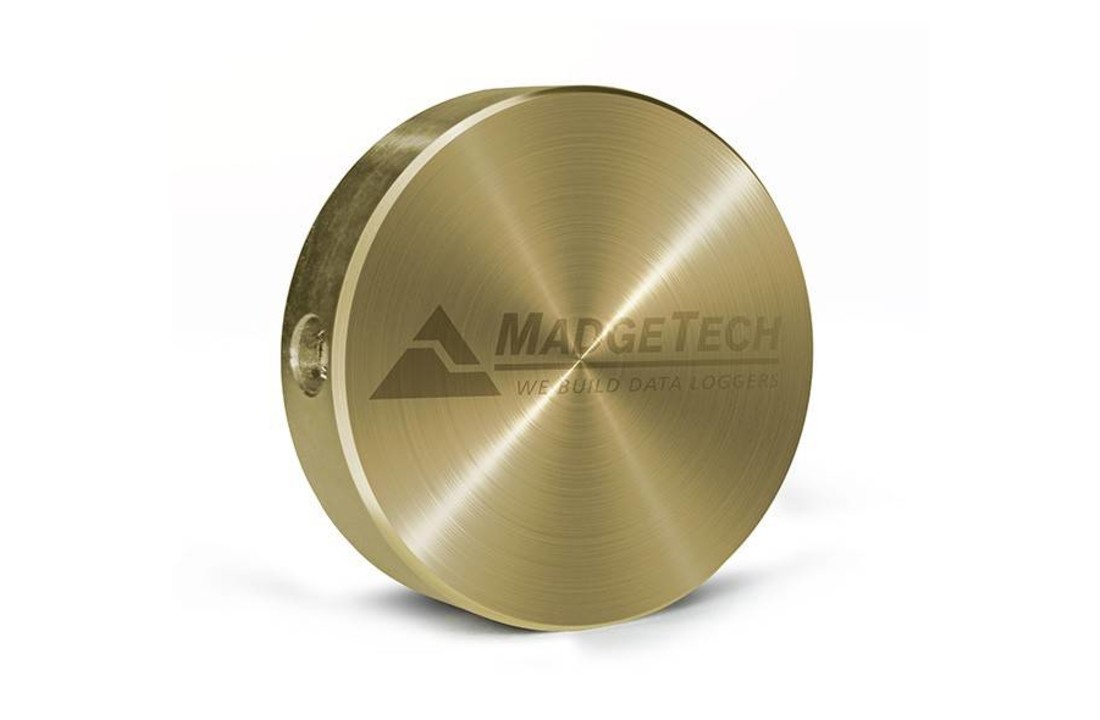

The Micro Disc is a surface temperature probe attachment designed to be used with the Madge Tech HiTemp140-FP or LyoTemp dataloggers. Made of C46400 brass, this rugged disc probe attachment is formed to connect directly to the tip of the LyoTemp's thermistor probe. The Micro Disc is Specifically designed to give the user the ability to perform processes That requirement surface temperature monitoring.

With its compact size, puck like shape and wide operating range, the Micro Disc Allows for close contact with flat surfaces Ensuring accurate temperature monitoring or shelving Reviews during the Lyophilization process. The Micro Disc is fitted with a silicone rubber insert That Secures the probe connection Throughout the data logging process.

GENERAL

Material Brass (C46400), Silicone Rubber Insert
Dimensions 0:25 in x 0.97 in x 0.97 in (6.5 mm x 25 mm x 25 mm)
Operating Environment -60 ° C to +177 ° C (-75 ° F to + 350 ° F), 0% RH to 100% RH

Download Specification Sheets
