Pt100 Sensor for Indoor and Outdoor - IP67

€24,-Excl. tax In stock : We ship in 24 hours

Pt100 - 3-Wire, Class A, Outdoor Temperature Sensor, ABS Houing for Wall mounting, Range -50°C to +90°C, IP67... Show more

B2B Industrial Supplier since 1999
Shipping from our own warehouse in NL !
Shipping in EU with DPD Traceable
Reliable SSL & Secure Payments

Product description

Download Datasheet

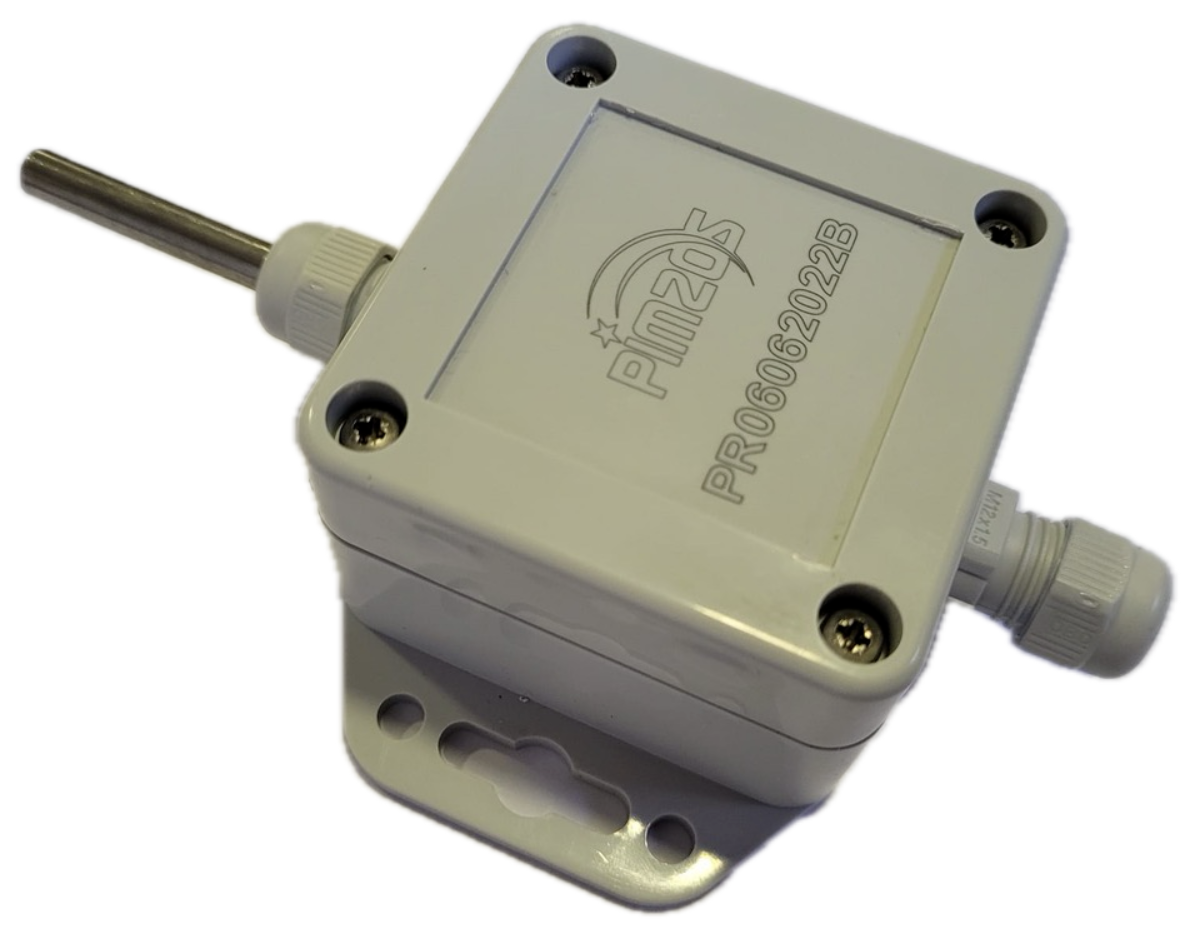

Pt100 Sensor for Indoor and Outdoor - IP67

This PIMZOS sensor is used in heating, ventilation , air conditioning systems, warehouse fruits as reference sensor for wheather compensated control, measuring sensor, e.g. for optimization, or for measured value display, or for connection to a building management system

The RST is passive outdoor temperature sensor available with different sensing elements such PT100, PT1000, NTC, PTC etc. Our standard model on stock = Pt100 / 3 wire connection.
The IP 67 plastic housing is supplied with a plastic cable entry gland, connection terminal is under the cover.
The sensing element is outside the box, on request also available with remote sensing element with cable output
Avoid to expose the unit for direct sunlight, if mounting the unit in sunlight it is recommended to use the sensor shield

Technical Data

Measuring range: -50ºC + 90ºC
Conector: 2 - 3 wires depends on the sensor required
Housing material: Plastic
IP Protection: IP67
Isolation resistance: > 100Mohm, at 20°C (500 Vdc)
Housing Dimensions:

Specifications

Article number: PR06062022B - Pt100/3-wire Outdoor Air
SKU: PR06062022B

€ 24,-

Excl. tax

Pt100 Sensor for Indoor and Outdoor - IP67

PR06062022B - Pt100/3-wire Outdoor Air

In stock : We ship in 24 hours
