    TFF400 Reaction Torque Sensor

    €1.275,-Excl. tax Email or Call us for delivery time
    TFF400, Reaction Torque Sensor, RoHS Compliant, Thru Hole , Material - 2024-T4 , 1/2" [12.7 mm] ID , Integrated Overload Protection, 4 Pin Lemo Receptacle, EGG.0B.304.CLL... Show more
    9 variations FSH03981 - 5 in-oz (0.0353 Nm)
    • Your reliable partner since 21 years
    • Shipping from our own warehouse !
    • Secure shipping in EU with DPD Traceable
    • Questions : Call +31-(0)85-065 6325

    Product description

    Download Datasheet Download PDF

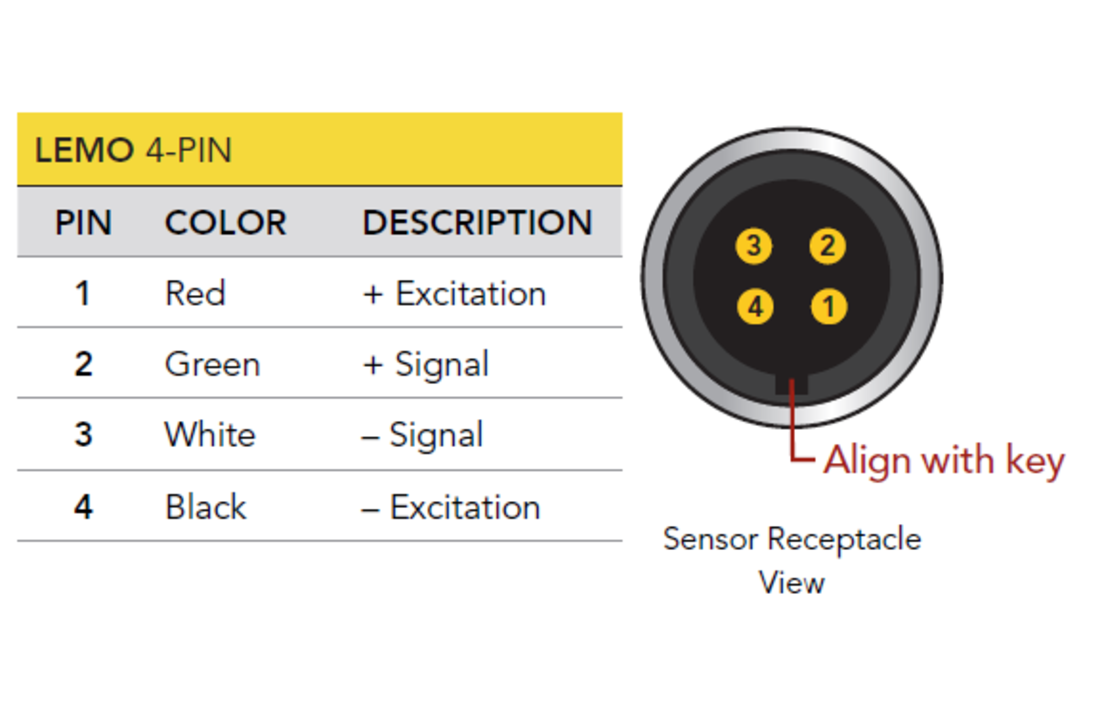

    TFF400, Reaction Torque Sensor, RoHS Compliant, Thru Hole , Material - 2024-T4 , 1/2" [12.7 mm] ID , Integrated Overload Protection, 4 Pin Lemo Receptacle, EGG.0B.304.CLL

    FUTEK’s TFF400 Reaction Torque Sensors feature a Flange to Flange mounting solution with torque measurements ranging from +/- 5 inch-oz to 500 inch-pounds, (+/-0.04 to 60 Nm) and Torsional Stiffness of 325 inch-oz/radians to 199,000 Inch pounds/radians. The TFF400 utilizes Metal Foil Strain Gage technology and features an Overload Protection for the low capacity units to help prevent overload damage that may occur during installation. With the recommended Mounting Plate, a full range of mounting options becomes available. The TFF400 Torque Sensors are made from Aluminum and anodized for optimum durability. Applications include fastener testing, engine testing for automotive and aerospace, automotive break testing, and prosthetic limb testing.

    Features
    • Easily integrates into OEM applications
    • Designed for Torque auditing
    • Aluminum construction
    • Built-in overload protection on lower ranges
    • Strain gauge based
    • Easy cable disconnect

    Attention : You need a connection cable for this sensor, see related products !

    Specifications

    Article number
    FSH03981 - 5 in-oz (0.004 Nm)
    SKU
    FSH03981 - 5 in-oz (0.004 Nm)
