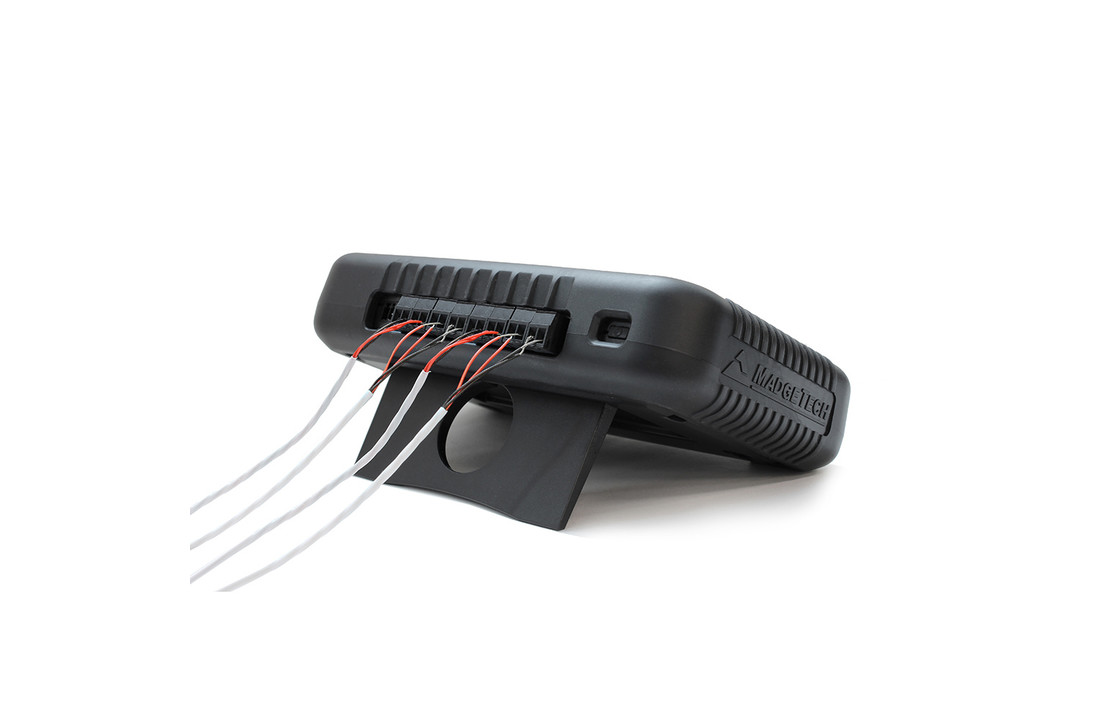

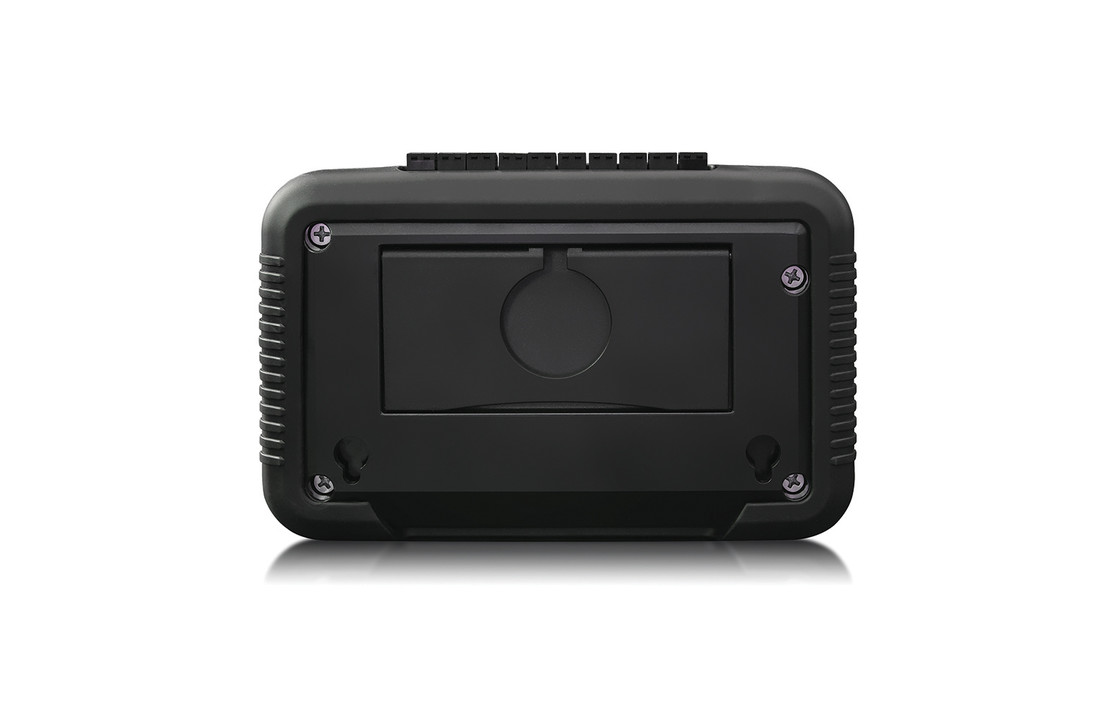

The Titan S8-CAN is a state-of-the-art, powerful, data acquisition system designed for diesel engine monitoring and recording. With the ability to simultaneously measure and record up to 23 suspect parameter numbers, the Titan S8-CAN is an all-in-one solution for diesel engine testing.
The Titan S8-CAN is a remote access data acquisition logger designed to easily connect to the Controller Area Network (CAN) via its diagnostic port.
- Ability to Monitor and Record SAE J1939 Compliant CAN Messages
- Display & Record 23 SPN
- Ideal for Engine, Road & Diagnostic Testing
This versatile device provides the capability to monitor and record SAE J1939 compliant CAN messages from Tier 1 through Tier 4 final diesel engines. Once connected, the Titan S8-CAN has the ability to display and record up to 23 suspect parameter numbers (SPN) simultaneously during engine, road, and diagnostic testing.
|Channels||24: 23 can be configured for CAN data. Channel 1 cannot be CAN, and channels 2-8 can be used for direct measurements. If 1-8 are configured for direct measurements, 9-24 can still be CAN channels.|
|Battery Life||7 to 9 hours continuous use|
|Material||PC / ABS Enclosure, TPE Protective Boot|
|Dimensions||6.65 in x 4.40 in x 1.41 in (168.9 mm x 111.8 mm x35.8 mm) Data logger only. 5 in touch screen.|

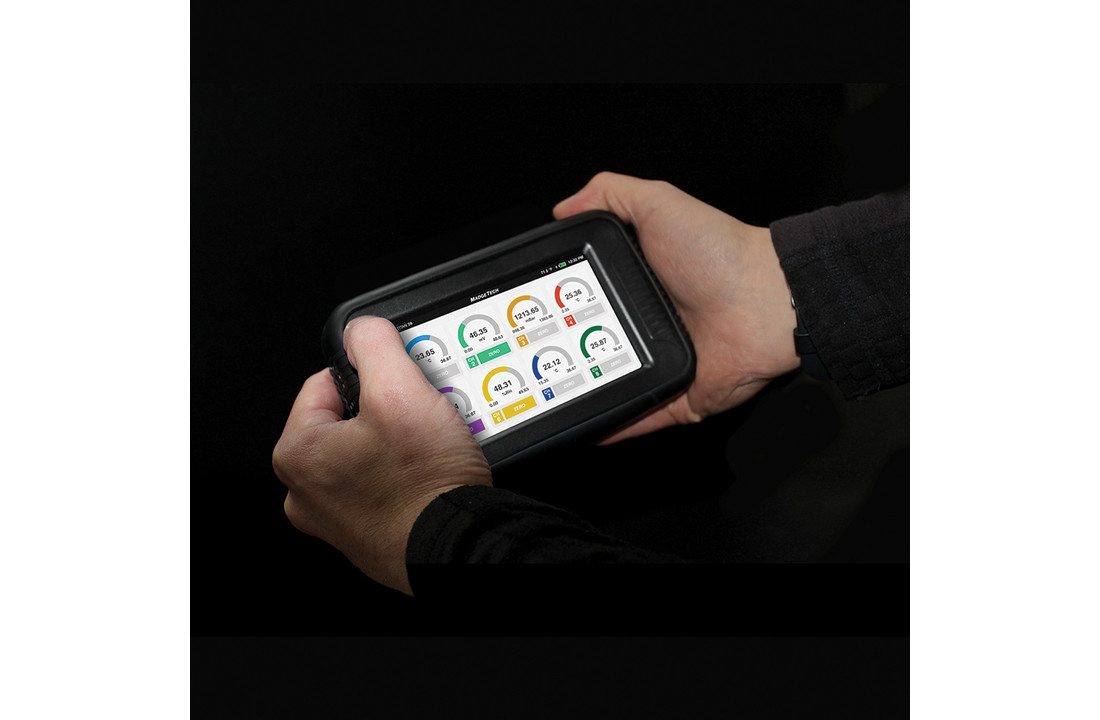

The Titan S8 is an all-in-one solution, allowing users to view and record simultaneously without the need for a PC or software. With 1 GB of internal memory, the Titan S8-CAN can store up to 5,000,000 readings which can be download to a USB for further analysis.
