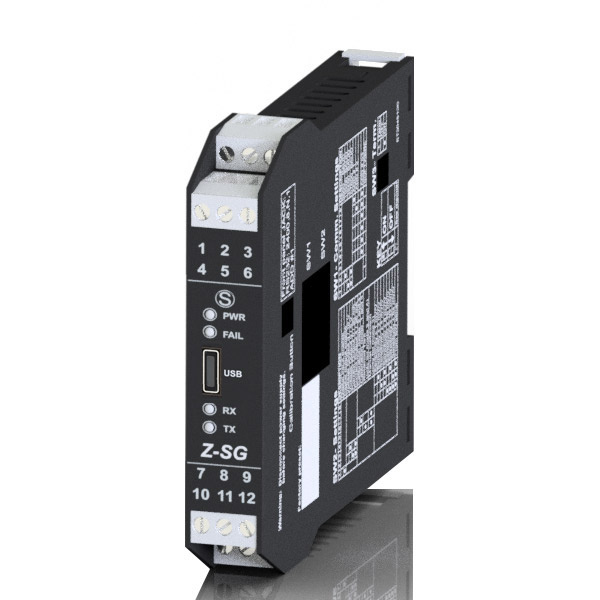

    Z-SG Loadcell Amplifier

    €165,-Excl. tax We dispatch within : 2 weeks
    Loadcell versterker, USB, RS485 Modbus +Analoge uitgang... Show more
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 1 for only €156,75 per piece
    • -10% Order 10 for only €148,50 per piece
    • B2B Industrial Supplier since 1999
    • Shipping from our own warehouse in NL !
    • Shipping in EU with DPD Traceable
    • Reliable SSL & Secure Payments

    Product description

    Download Datasheet Download PDF

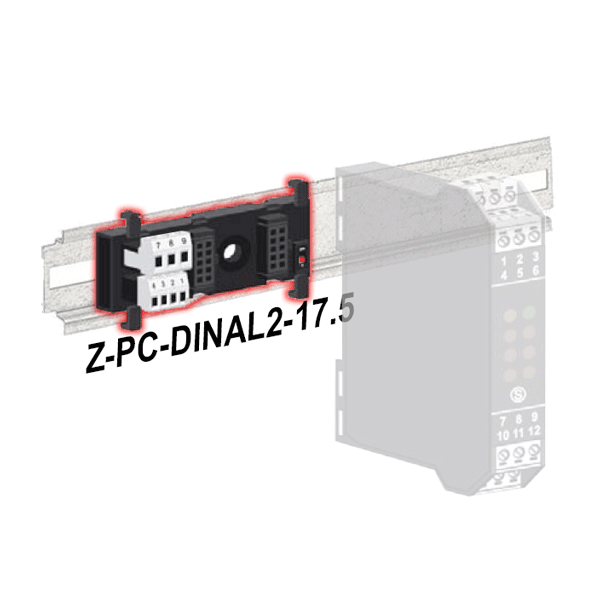

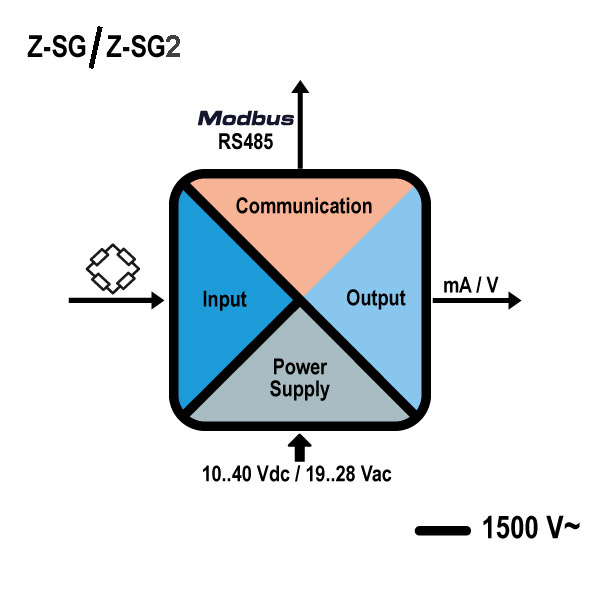

    Z-SG is a strain gauge signal converter. Measurements taken using the 6-wires or 4-wires technique are available through Modbus-RTU serial protocol or the analog output. Sensitivity from 1 to 64mV/V, settable by DIP-switch for integer values, via software for real/integer values by connecting to the device via the microUSB port on the front panel. Stable weight indication via Modbus register/digital output. Remote writing of the tare in volatile and/or non-volatile memory by digital input/Modbus register/Modbus commands. Z-PC-DINAL2-17.5, Z-PC-DIN2-17.5, and Z-PC-DIN8-17.5 are mandatory accessories for ModBUS configurations.

    Very easy to program via USB and FREE PC software or Android software

    General characteristics

    • ADC with 24bit resolution
    • 4 wires or 6 wires load cell measure mode
    • Compression / Tension (Bi_Drectional) or 1 direction mode
    • 1 analog output configurable in Current or Voltage mode (only Z-SG model)
    • Load cell sensitivity configurable from +-1mV/V to +-64mV/V or virtually every sensitivity
    • Measure resolution configurable
    • RS232 and RS485 port with Modbus RTU protocol
    • Configurable Moving average filtering
    • Digital input for Tare acquisition (only Z-SG model)
    • General purpose Digital input or Digital output (only Z-SG-L model)
    • Digital output with one configurable weight threshold or “stable measure” condition
    • Modbus Station address and baud-rate configurable by Dip-Switches
    • Multifunction instruments (converters, meters, stand alone/third-party integrated systems)
    • 1 Analog input for reading (andpower supply) strain gauge load cells (6-wire isolated measurement)
    • 1 Analog re-transmitted output of net weight in current (0..20, 4..20mA) or voltage (0..5, 0..10 V)
    • 1 Digital Input/Output for operation settings
    • Accuracy class 0,01%
    • ModBUS RTU slave half duplex protocol
    • Multiple calibration methods (with or without PC, known weight and load cell)
    • Programmable functions via DIP switches or software: full scale, threshold exceeding, stable weighing
    • Advanced functions (Z-SG2): configurable resolution, adjustable sampling rate from 5.4 Hz to 1365.3 Hz, adjustable threshold alarm, stabilized measurement by noise
    • filter, “piece counter” function, automatic tare reset

    Specifications

    Article number
    Z-SG
    SKU
    Z-SG
