    LCM100

    € 750,-
    € 712,50 Excl. btw Email of bel ons voor de levertijd
    LCM100 , Sub-Miniature Tension & Compression Load Cell (Miniature/Inline Threaded) , RoHS Lead Free, Material - 17-4 PH S.S. , M3x0.5-Thread , 34 Awg 4 Conductor Braided Cable , 5 ft Long... Toon meer
    4 variaties FSH03842 - 1000 Gram (9.8N)
    • Your reliable partner since 21 years
    • Shipping from our own warehouse !
    • Secure shipping in EU with DPD Traceable
    • Questions : Call +31-(0)85-065 6325

    Productomschrijving

    Download Datasheet Download PDF

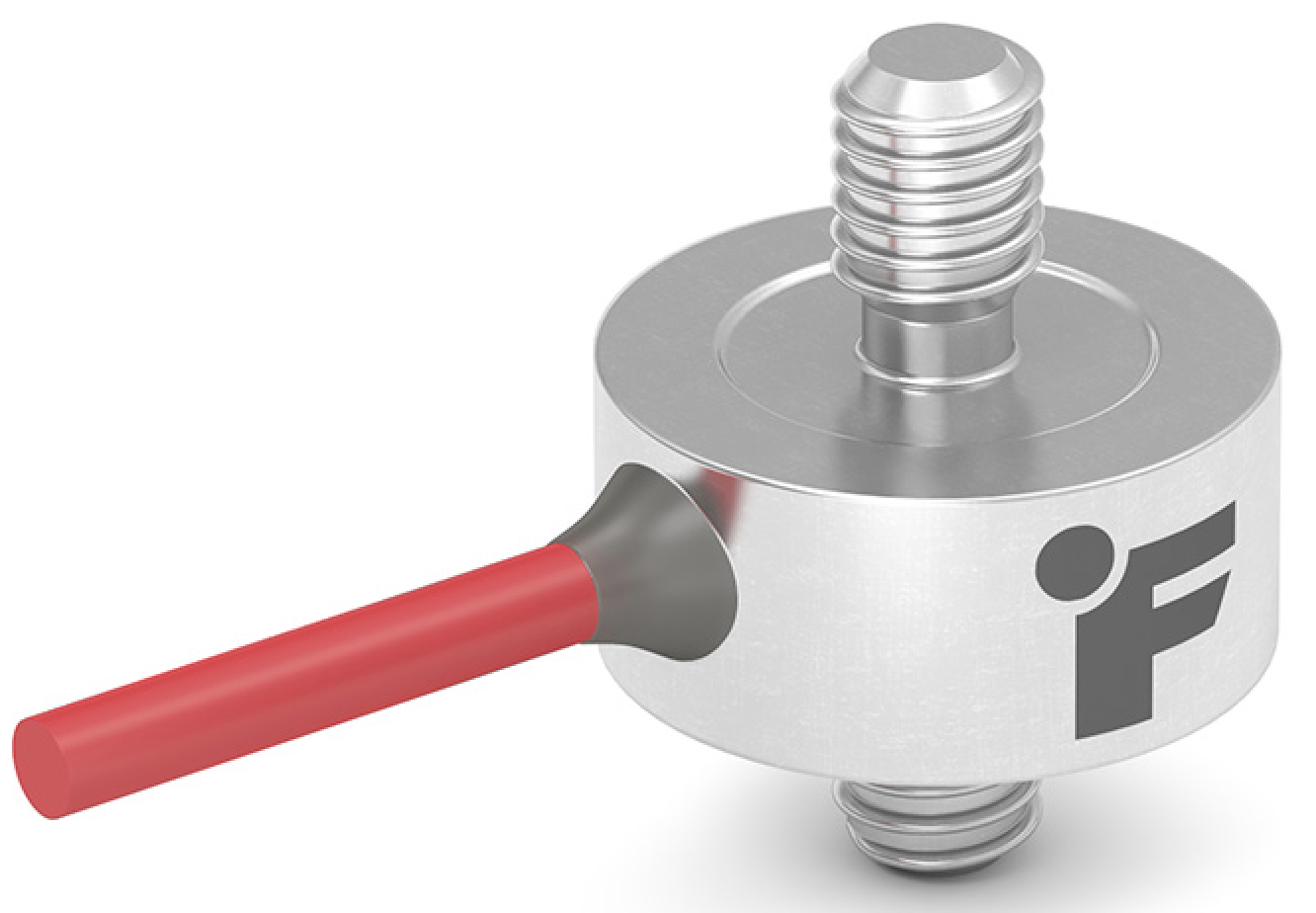

    LCM100 , Sub-Miniature Tension & Compression Load Cell (Miniature/Inline Threaded) , RoHS Lead Free, Material - 17-4 PH S.S. , M3x0.5-Thread , 34 Awg 4 Conductor Braided Cable , 5 ft Long

    Model LCM100 is a Miniature Threaded In Line Load Cell built for Endurance or Inline Tension or Compression applications. The standard LCM100 Miniature Threaded In Line Load Cell model has a very robust construction available in 17-4 Stainless Steel, with male threads on both ends and a 5 foot #34 Awg 4 conductor braided shielded cable. This product offers an exceptional weight of 0.3 oz (8.5 g). The LCM100 model is also CE and RoHS compliant.

    The Miniature Threaded In Line Load Cell offers high accuracy. It has nonlinearity of ±0.5% of RO and deflection of 0.0001 in to 0.0002 in nominal.

    Features
    • High speed, low deflection
    • Minimal mounting clearance
    • Outer diameter of 0.38” [9.5 mm]
    • 17-4 PH stainless-steel construction
    • For use in both tension and compression
    • Utilizes metal foil strain gauge technology
    • Adheres to RoHS directive 2011/65/EU

    Specificaties

    Artikelnummer
    FSH03842 - 1000 Gram (9.8N)
    SKU
    FSH03842 - 1000 Gram (9.8N)
    LCM100
    € 750,-
    € 712,50
    Excl. btw
    LCM100
    FSH03842 - 1000 Gram (9.8N)
    Email of bel ons voor de levertijd
    Toevoegen aan winkelwagen
