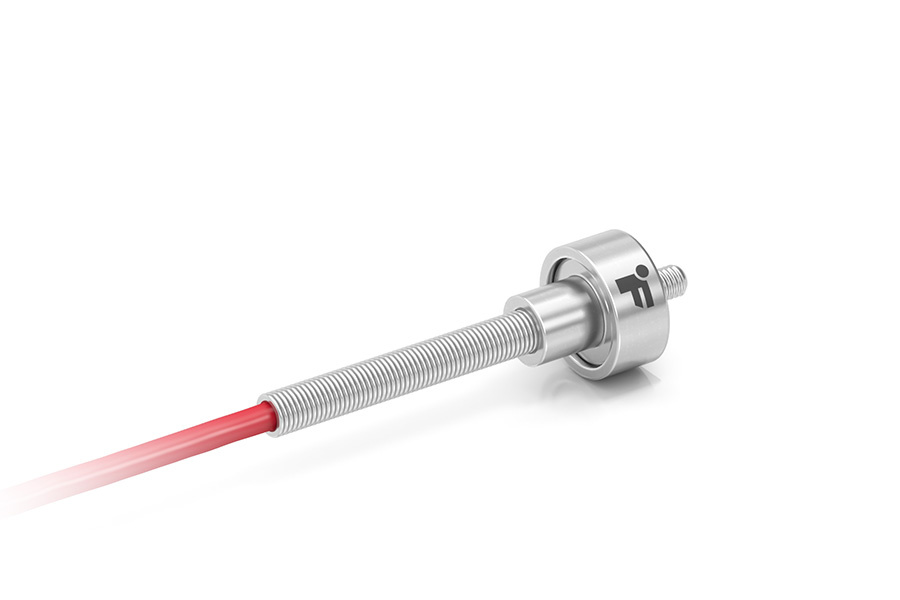

    LLB215 Miniature Threaded Load Button

    € 750,-
    € 712,50 Excl. btw Email of bel ons voor de levertijd
    LLB215 , Subminiature Threaded Load Button w/ Bottom Cable Exit , Standard , Material - 17-4 PH S.S. , #2-56-Thread , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 10 ft Long... Toon meer
    3 variaties FSH02622 - 10lb (44.5N)
    • Your reliable partner since 21 years
    • Shipping from our own warehouse !
    • Secure shipping in EU with DPD Traceable
    • Questions : Call +31-(0)85-065 6325

    Productomschrijving

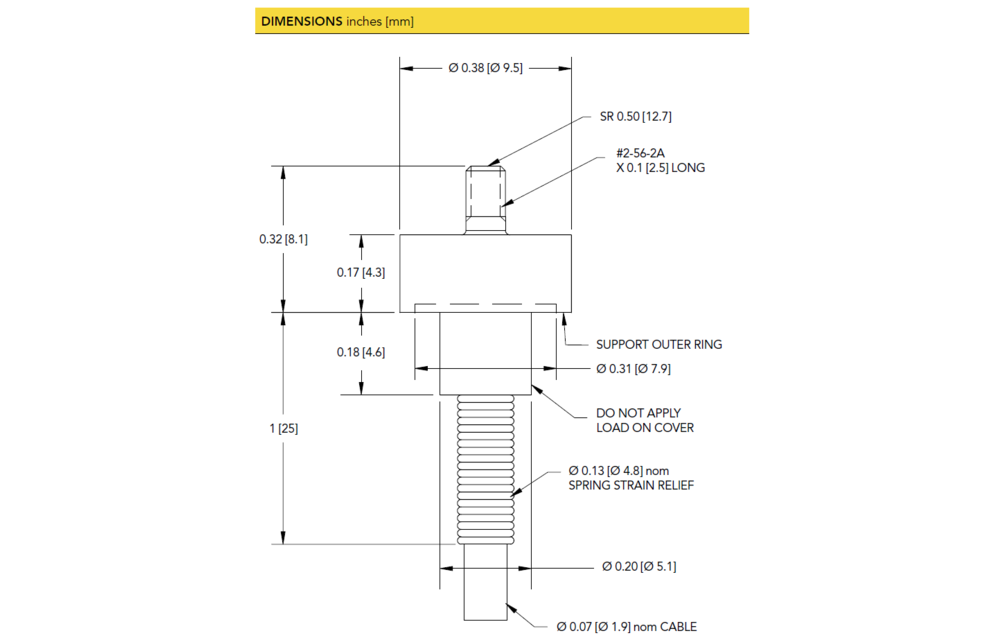

    Download Datasheet Download PDF

    LLB215 , Subminiature Threaded Load Button w/ Bottom Cable Exit , Standard , Material - 17-4 PH S.S. , #2-56-Thread , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 10 ft Long

    Model LLB215 is a Miniature Load Button (Bottom Cable Exit) designed for Press, or Inline compression applications. The LLB215 Miniature Load Button (Bottom Cable Exit) model is made from a robust 17-4 PH Stainless Steel, with a subminiature 0.38 inch outside diameter.

    Although Miniature Load Button are traditionally not known for their high accuracy, FUTEK engineers have dispelled this concept by continuously improving the accuracy of this product. These load cells achieve great accuracy and stiffness with a Nonlinearity of ±0.5% and Deflection of 0.002” nominal. You will also find options for external matched output readily available.

    The standard LLB215 Miniature Load Button (Bottom Cable Exit) is manufactured in the USA and uses metal foil strain gauge technology.

    Features
    • Fully internally temperature compensated (no external conditioning circuitry)
    • Subminiature / light weight
    • Low deflection / fast response
    • 17-4 PH stainless-steel construction
    • For use in compression
    • Utilizes metal foil strain gauge technology
    • Bottom cable exit



    Specificaties

    Artikelnummer
    FSH02622 - 10lb (44.5N)
    SKU
    FSH02622 - 10lb (44.5N)
    LLB215 Miniature Threaded Load Button
    € 750,-
    € 712,50
    Excl. btw
    LLB215 Miniature Threaded Load Button
    FSH02622 - 10lb (44.5N)
    Email of bel ons voor de levertijd
