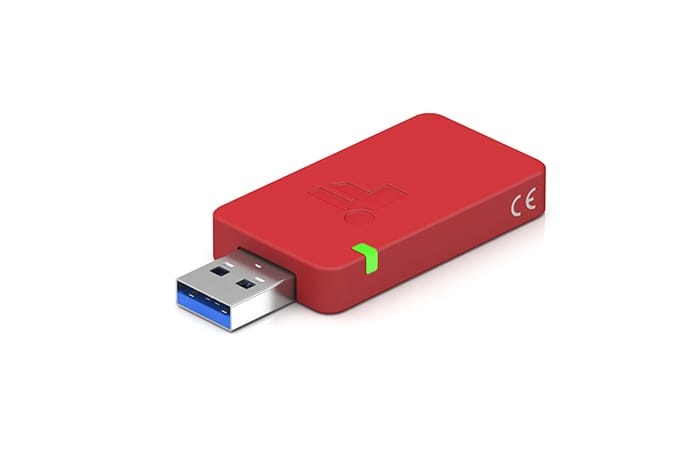

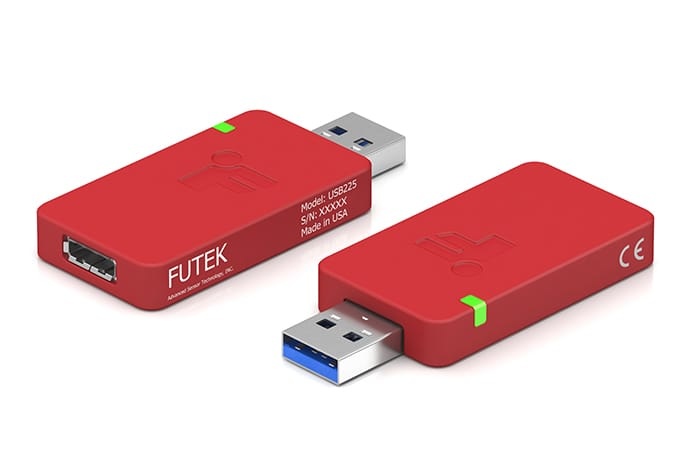

USB225 - Pro / Elite High Resolution & Speed USB Output Kit

€1.198,-Excl. btw We versturen binnen : 2 weken

USB225 Pro / Elite, Hoge Resolutie USB Uitgang Kit, tot 20 Bits ruisvrije resolutie of tot 4.800 SPS, voor rekstrookbrug mV/V, rode poedercoating aluminium behuizing... Toon meer

B2B Industrial Supplier since 1999
Shipping from our own warehouse in NL
Shipping in EU with DPD Traceable
Reliable SSL & Secure Payments

Productomschrijving

Download Datasheet

Let op: Dit model kan alleen worden geïntegreerd als het samen met een sensor van FUTEK als set wordt aangeschaft. De kalibratie wordt uitgevoerd bij FUTEK in Californië. De kosten voor de kalibratie zijn niet inbegrepen.

High Resolution & Speed USB Output Kit, there are 2 models :

USB225-Pro
USB225-Pro Elite.

USB225 is a streamlined alternative to traditional analog signal conditioning and bulky DAQ setups. Its ultra‑compact design, high resolution, extremely low non‑linearity, and flexible sampling rates make it a strong fit for customers who need dependable accuracy in both fast‑changing and precision‑critical environments.

The USB225 product line includes two versions: USB225 Pro and USB225 Pro Elite.
The Pro Elite builds on the capabilities of the standard Pro model by adding higher sampling rates and several
automation‑oriented features.

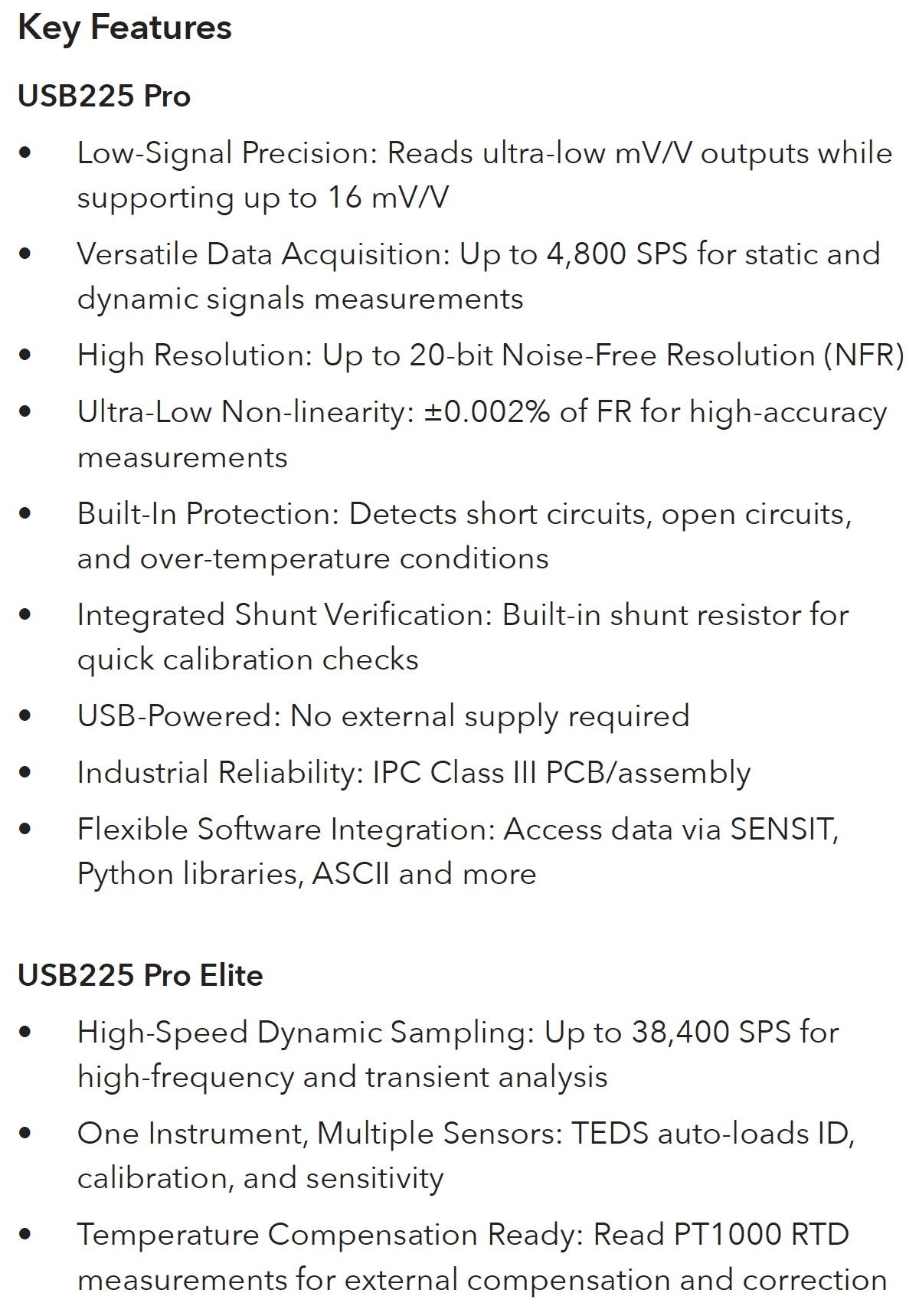

USB225 Pro

Low-Signal Precision: Reads ultra-low mV/V outputs while supporting up to 16 mV/V
Versatile Data Acquisition: Up to 4,800 SPS for static and dynamic signals measurements
High Resolution: Up to 20-bit Noise-Free Resolution (NFR)
Ultra-Low Non-linearity: ±0.002% of FR for high-accuracy measurements
Built-In Protection: Detects short circuits, open circuits, and over-temperature conditions
Integrated Shunt Verification: Built-in shunt resistor for quick calibration checks
USB-Powered: No external supply required
Industrial Reliability: IPC Class III PCB/assembly
Flexible Software Integration: Access data via SENSIT, Python libraries, ASCII and more

USB225 Pro Elite

High-Speed Dynamic Sampling: Up to 38,400 SPS for high-frequency and transient analysis
One Instrument, Multiple Sensors: TEDS auto-loads ID, calibration, and sensitivity
Temperature Compensation Ready: Read PT1000 RTD measurements for external compensation and correction

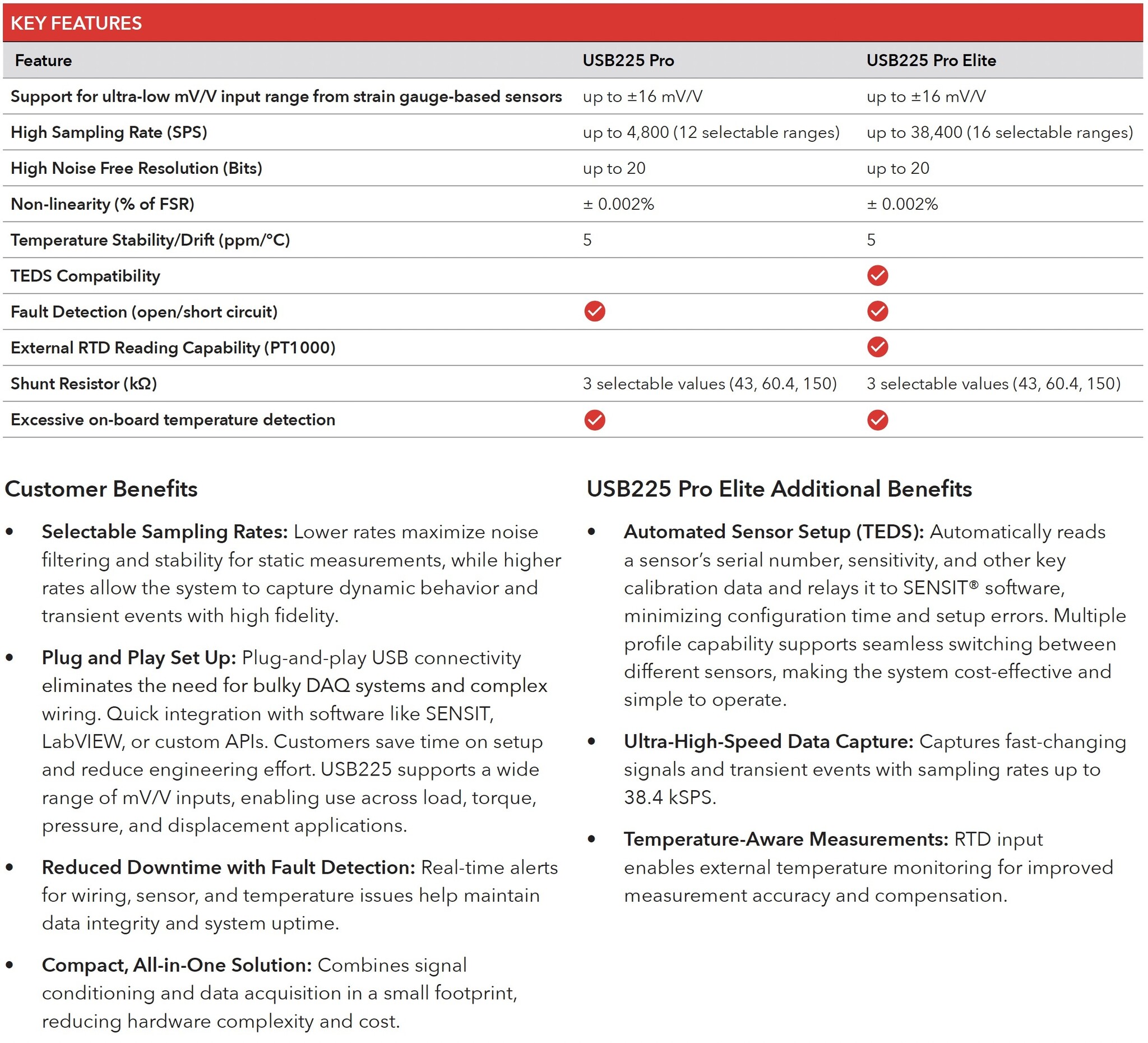

Customer Benefits

Selectable Sampling Rates: Lower rates maximize noise filtering and stability for static measurements, while higher rates allow the system to capture dynamic behavior and transient events with high fidelity.
Plug and Play Set Up: Plug-and-play USB connectivity eliminates the need for bulky DAQ systems and complex wiring. Quick integration with software like SENSIT, LabVIEW, or custom APIs. Customers save time on setup and reduce engineering effort. USB225 supports a wide range of mV/V inputs, enabling use across load, torque, pressure, and displacement applications.
Reduced Downtime with Fault Detection: Real-time alerts for wiring, sensor, and temperature issues help maintain data integrity and system uptime.
Compact, All-in-One Solution: Combines signal conditioning and data acquisition in a small footprint, reducing hardware complexity and cost.

USB225 Pro Elite Additional Benefits

Automated Sensor Setup (TEDS): Automatically reads a sensor’s serial number, sensitivity, and other key calibration data and relays it to SENSIT® software, minimizing configuration time and setup errors. Multiple profile capability supports seamless switching between different sensors, making the system cost-effective and simple to operate.
Ultra-High-Speed Data Capture: Captures fast-changing signals and transient events with sampling rates up to 38.4 kSPS.
Temperature-Aware Measurements: RTD input enables external temperature monitoring for improved measurement accuracy and compensation.
