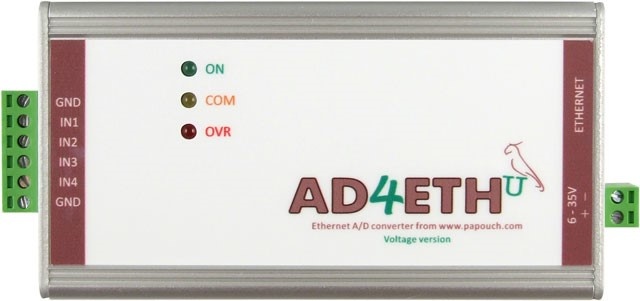

    AD4ETH Ethernet measurement module

    Brand: Papouch
    €223,60Excl. tax We dispatch within : 4-6 working days
    Ethernet measurement module... Show more
    2 variations AD4ETHI - Input Range 0(4)-20mA
    • Reliable Service since 22 years
    • Shipping from our own warehouse !
    • Secure shipping in EU with DPD Traceable
    • Questions : Call +31-(0)85-065 6325

    Product description

    Download Datasheet Download PDF

    Analog measurement module AD4ETH is a four input A/D converter allowing you to measure up to four analogue signals 0-10V or 0(4)-20mA. Measured-out values can be viewed via a WEB interface, AD4ETH also supports TCP, SNMP, Modbus and many other protocols.

    Default input range is 0-10V or 0(4)-20mA, but it ican be modidied to suit your application upon request. Please contact us to get a custom measuring range.

    Features of Ethernet A/D converter

    • Four analogue inputs for voltage or current
    • Each channel can have different range (upon request)
    • Measuring range split into 10 000 pieces
    • Mesuring rate: twice in a second for each channel
    • Communication via Ethernet (LAN computer network)
    • Wide power supply voltage range: 7 - 30 V DC
    • Measuring is based on a single multiplexed 16 bit sigma-delta A/D converter
    • SNMP, MODBUS TCP, TCP (Spinel), UDP (Spinel), HTTP GET, HTTP POST (SOAP)
    • Internal WEB server
    • WAP pages for mobile view
    • Measured data in XML format for easy processing in your own application
    • AD4ETH supports sending the data in XML WEB service format by SOAP protocol
    • A/D converter can automatically send the measurements to your server in an HTTP GET request body.
    • E-mail notifications when a preset thresholds are exceeded (e-mail without SSL)
    • Real units calculation functions - you can see the values as a pressure, height, distance, temperature etc.
    • Measurement software for windows is free (limited version)

    Usage of IP A/D converter

    • Digitalization of measured-out values from gauges with unified voltage or current ouput
    • Reading or sensors with unified signals
    • Reading values from flood sensors, pressure sensors, thermometers, height sensors etc.











    Specifications

    Article number
    AD4ETH_I_1
    SKU
    AD4ETH_I_1
