    LD232 - RS232 serial line extender

    € 235,- Excl. tax Delivery time: 4-6 working days
    LD232 (long distance RS232) is a set for extended extending RS232 line, maximum working distance 1200m, surge supression, galvanic isolation.... Show more
    • Reliable Partner ! Already 20 years at your service
    • Shipping from our own warehouse in The Netherlands
    • Secure shipping in EU with DHL Europlus
    • Questions : Call +31-(0)85-065 6325

    Product description

    Download Datasheet Download PDF

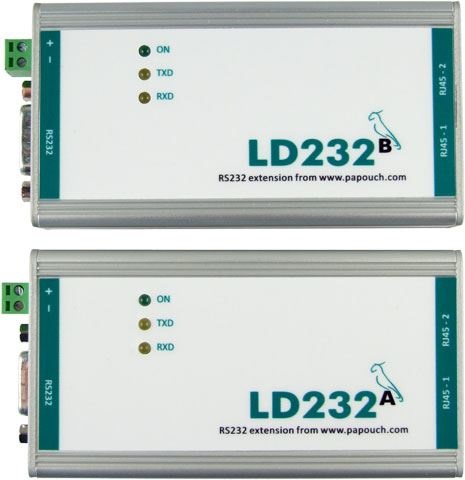

    LD232 - RS232 serial line extender

    LD232 (long distance RS232) is a set for extended extending RS232 line, maximum working distance 1200m, surge supression, galvanic isolation.

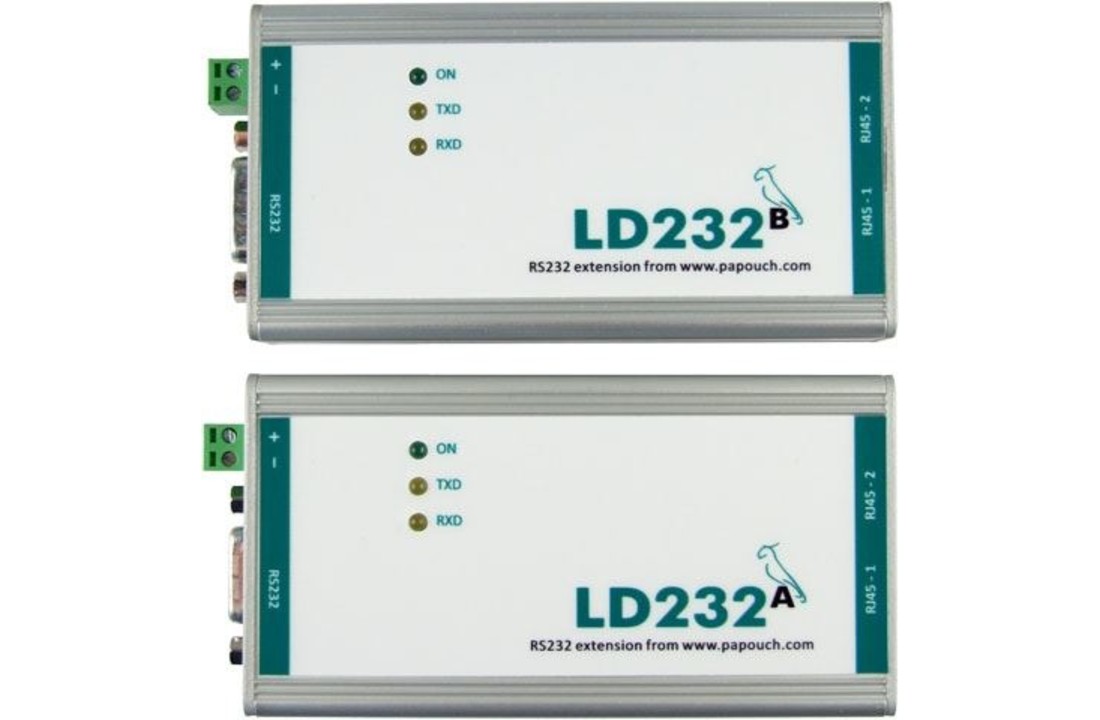

    A pair of modules LD232A and LD232B extends RS232 line to a maximum distance of 1200m. Both modules have galvanic isolation and surge supression against any interference on the extended extending line.

    RS232 is connected from PC to the LD232A module straight through cable. All signals are then converted and isolated, then TRANSMITTED to the remote module LD232B, where Those signals are converted back to RS232. Each signal si TRANSMITTED through a pair of wires by Means of RS422 line. This line is very rugged and impervious to most electromagnetic interference.



    Specifications

    Article number
    LD232_SADA_1
    SKU
    LD232_SADA_1
    LD232 - RS232 serial line extender
    € 235,-
    Excl. tax
    LD232 - RS232 serial line extender
    LD232_SADA_1
    Delivery time: 4-6 working days
