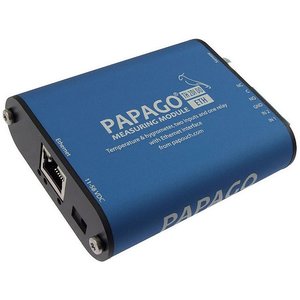

PAPAGO TH 2DI DO is used as an environment monior – it measures temperature, humidity and dew point. It also has 2 Digital Inputs and 1 Relay Output.

Papago TH 2DI DO ETH belongs to a family of Papago modules with some common properties. These are mainly the following:

Ethernet interface, internal website (in Czech and English) and many standard communication protocols
PoE power supply or an external source. PoE eliminates the need to use an external power supply.
Internal memory and real-time clock. Measured data including the time of measurement is automatically stored in the memory in the event that communication is lost. The data is automatically sent after the connection is restored.
Elegant but robust metal box that can be mounted on a DIN rail. The box bears descriptions that allow connection without having to consult the manual. Also LED indicators for all important states help commissioning.
The possibility to display, store and analyze data in the Wix, which is free of charge for a smaller number of measured parameters.

Sensor input can accept one of these two types of sensors:
Combined temperature & humidity sensors (SNS-THE)
Temperature Only "(SNS-Temp)

Relay (OUT) is meant for:
Switching load with low voltage and power.
Manual control (on/off or pulse), input mirroring or an alarm for measured value.

Digital inputs (IN) can be connected with:
Contact.
Pulse output from measuring gauges like elektricity, water, gas, heat and other.
Logic output of 5V TTL levels.

Other features
PoE standard: IEEE 802.3af
Possible external power supply 11 to 58 V DC
Typical power consumption 1.8 W
Package contents: Papago 2TH ETH, patch cable 1m, (external power source not included)

All products from the Papago range - including, of course, the thermocouple thermometer Papago TH 2DI DO ETH - provides a wide range of communications options. Thanks to protocols for machine reading, you can easily incorporate thermometers into your existing systems. It's naturally also possible to control the Papago through the web or using Windows software.

MODBUS TCP - a standard industry protocol
SNMP (including TRAP messages for specific events)
HTTP GET with open or encrypted data  (128bit AES)
EMAIL for specific events
XML with the currently measured data
Spinel (binary protocol developed by Papouch Company)
