    Pt100, Class B, Rugged, +600°C, Length 150 or 300 mm

    €26,20Excl. tax Product is in stock : We ship immediately !
    PT100, 3 wires, class B, Mineral insulated, SS316, diameter 6 mm + Potseal 8 x 40 mm + spring + 2000mm PFA screened cable.... Show more
    2 variations PFH14107, Dimension 6 x 150 mm
    • Reliable Service since 22 years
    • Shipping from our own warehouse !
    • Secure shipping in EU with DPD Traceable
    • Questions : Call +31-(0)85-065 6325

    Product description

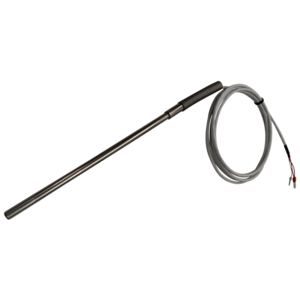

    PT100, 3 wires, class B, Mineral insulated, SS316, diameter 6 mm + Potseal 8 x 40 mm + spring + 2000mm PFA screened cable.

    2 variants : Probe Length 150 mm and 300 mm.

    Probe Type : RTD, Class B, 3wire
    RTD element type : Class "B" DIN Platinum Elements per IEC60751
    Nominal Resistance: 100 Ohm
    Probe Material : SS316 Stainless Steel Probe, Mineral insulated
    Probe Length: 150 or 300 mm below Potseal, zie variant
    Probe diameter : 6 mm
    Probe Temperature Range: -200°C to +600°C on measuring tip
    Cable to Probe transition : Potseal, diameter 8 mm, lenght 40 mm, with spring
    Cable : AWG stranded nickel-plated copper, PFA insulated, PFA jacketed cable, 4 x 0,22 mm2
    Cable Temperature Range :-200°C to +260 °C
    Cable Length: 2 meter
    Cable lead ends : Flying wire leads
    The 6 mm diameter sensor is made of 316SS with internal mineral insulation. This material can withstand up to + 600 ° C and therefore this sensor can also measure up to + 600°C at the tip. This material is slightly bendable. You may slightly bend the 6 mm sensor part one time. Bending multiple times can damage the sensor. Never bend the sensor at the tip where the Pt100 element is located. No bending is preferred!

    This is all data available, there is no PDF datasheet.

    We can also tailor these sensors to your wishes. (longer delivery time and different price)
