    PyroSigma Miniature Pyrometer with Built-In Display

    € 180,70
    € 169,86 Excl. tax Delivery time: 2 weeks
    PyroSigma Miniature Pyrometer with Built-In Display... Show more
    • Reliable Partner ! Already 20 years at your service
    • Shipping from our own warehouse in The Netherlands
    • Secure shipping in EU with DHL Europlus
    • Questions : Call +31-(0)85-065 6325

    Product description

    Download Datasheet Download PDF

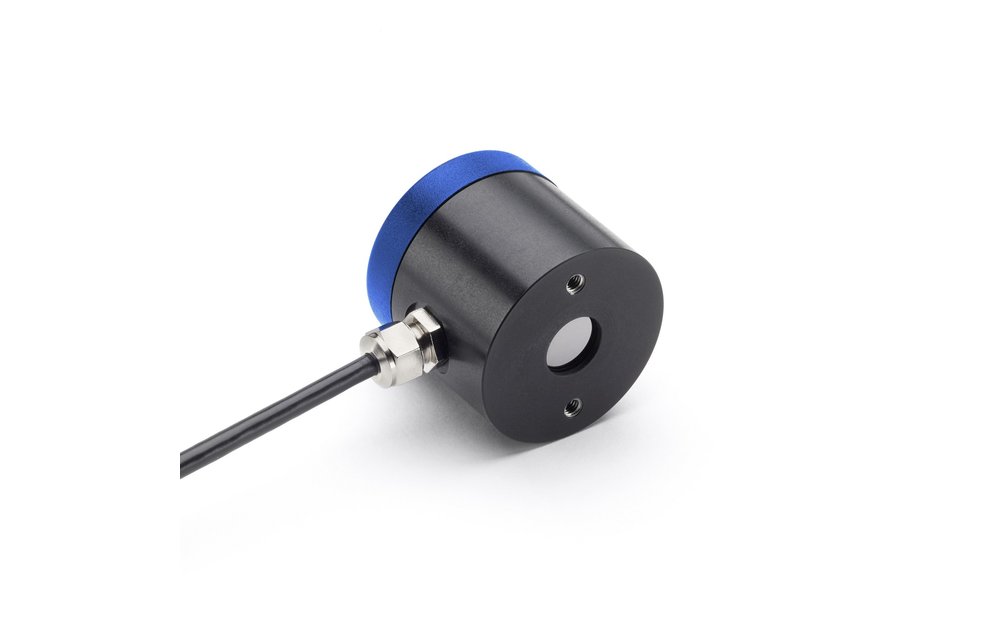

    PyroSigma Miniature Pyrometer with Built-in Display

    Features

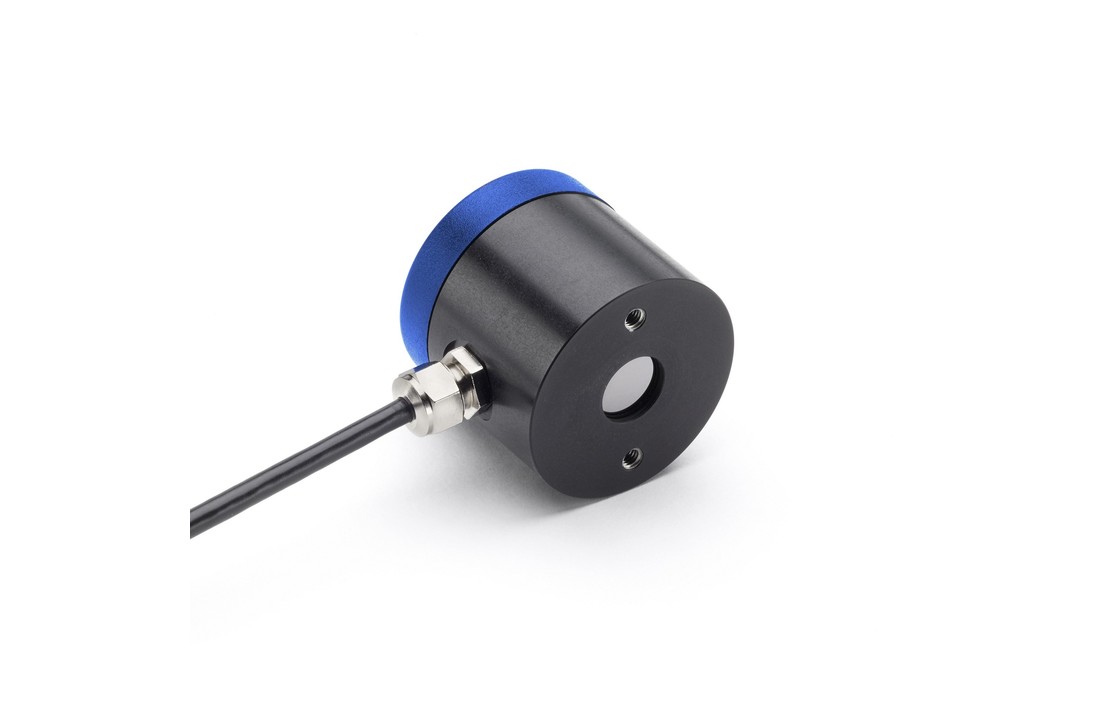

    • Small, low-cost industrial infrared temperature sensor
    • Side-entry cable: ideal for mounting in tight spaces

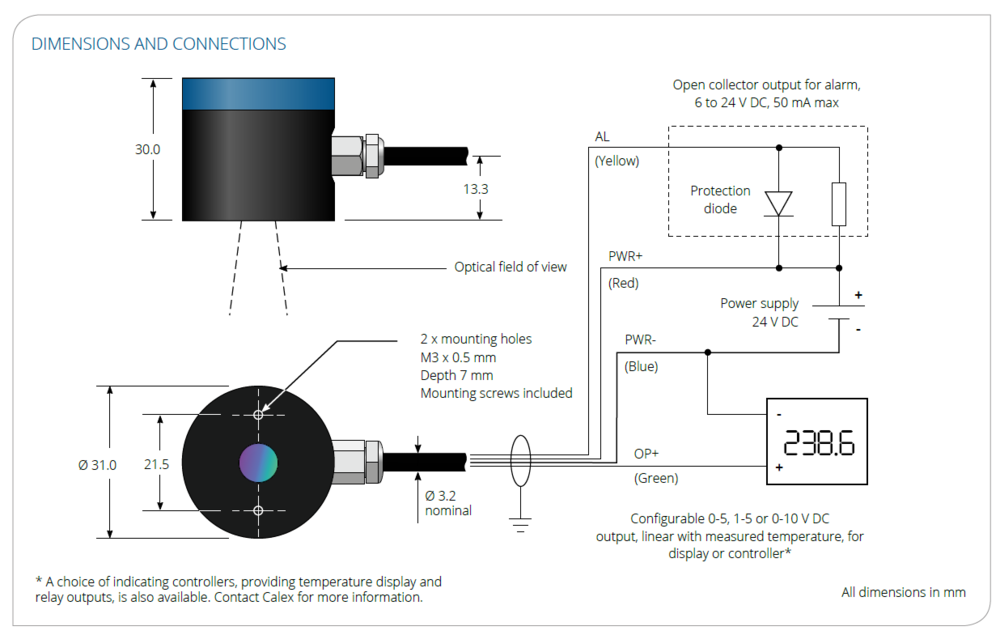

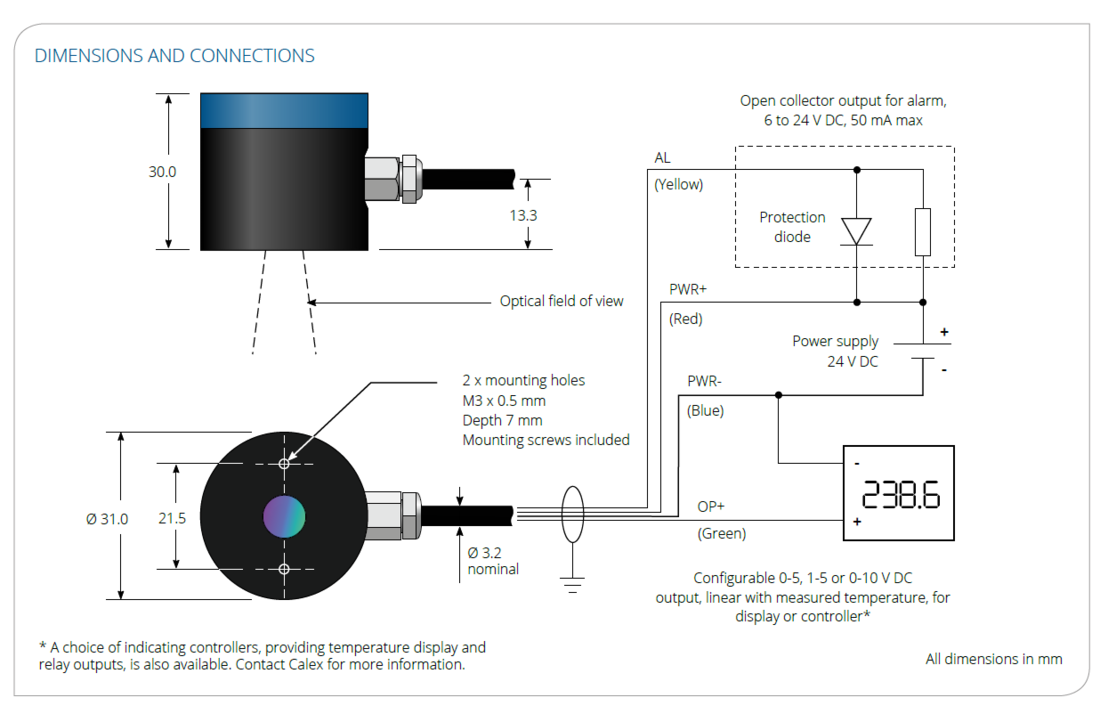

    • Voltage output, selectable 0-10 / 0-5 / 1-5 V DC
    • Measures temperatures from 0°C to 1000°C
    • Fully configurable for averaging, hold processing, emissivity, output scale etc.
    • Alarm output
    • Low-profile housing for applications with limited headroom e.g. IR curing, dryers, laminating machines, Switchgear cabinets etc
    • Not designed or approved for fever detection

    The new, low-cost, fully-configurable PyroSigma infrared temperature sensor is now available to order.

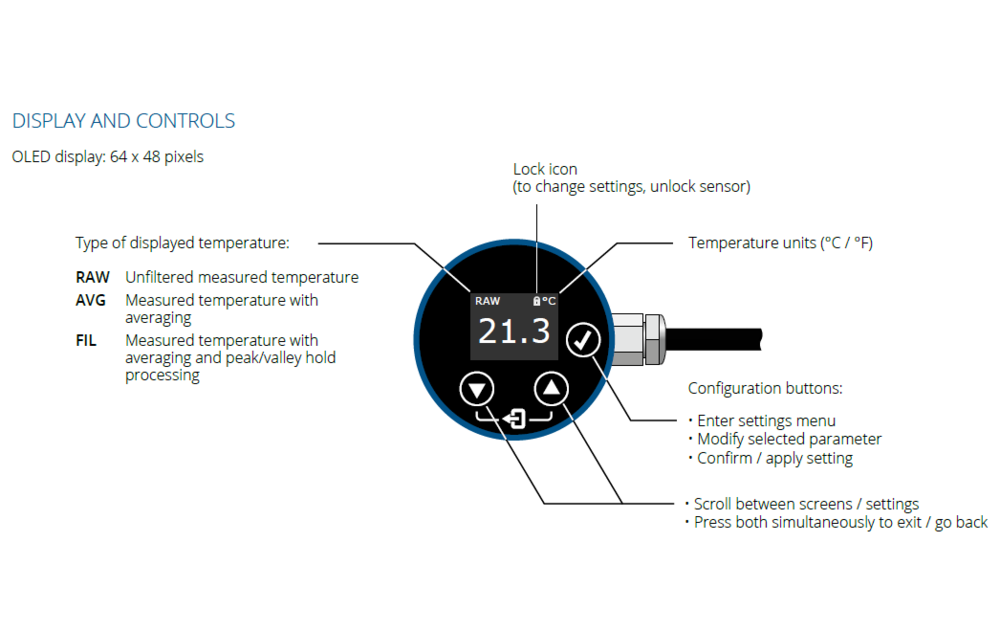

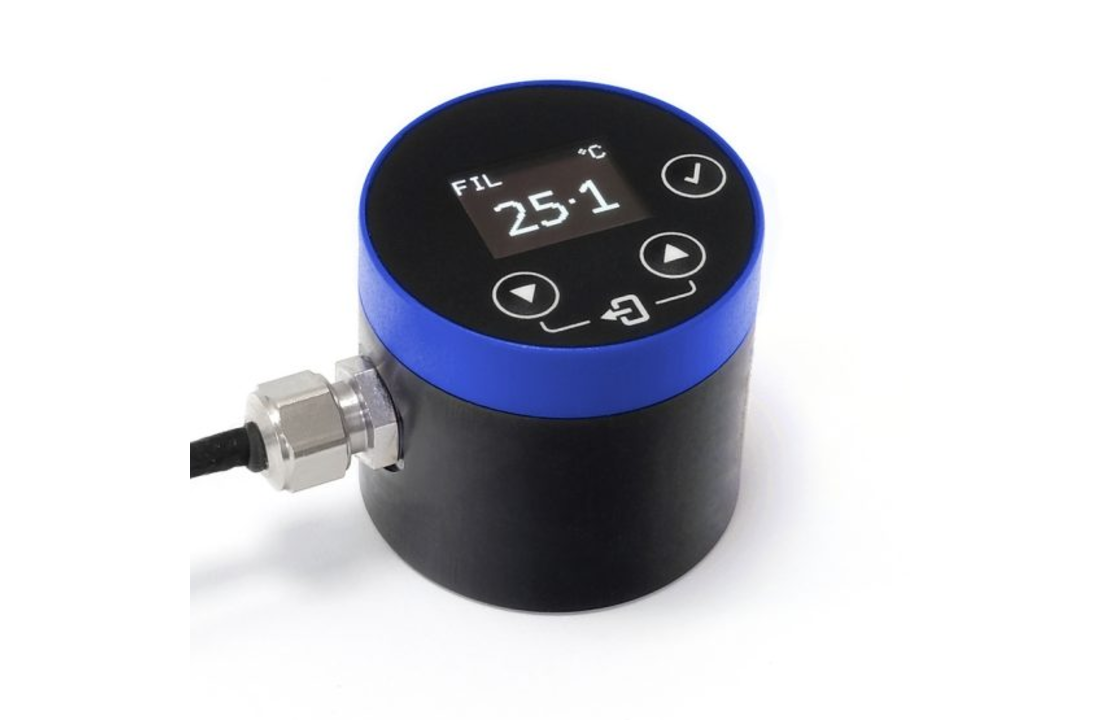

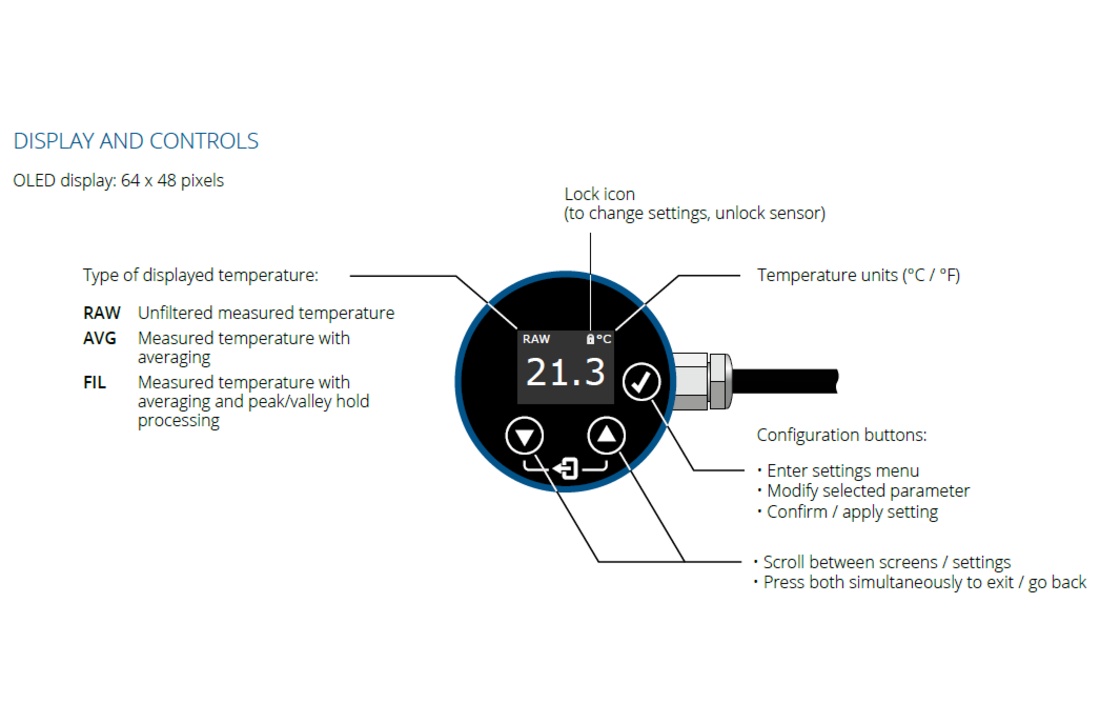

    The PyroSigma is the same very small size as the PyroNFC, and features a built-in OLED display and push-buttons for configuration.
    Engineers can now see the measured temperature in-situ on their machine, as well as on an indicator in their panel via the sensor's voltage output.

    The PyroSigma also features a configurable open-collector alarm output. Both the alarm output and the voltage output may be used at the same time.
    This highly versatile unit includes many of the advanced signal processing features often found on sensors with a much higher price, including averaging, peak/valley hold processing and reflected energy compensation.
    The PyroSigma is a general-purpose sensor for measuring non-metal materials from 0°C to 1,000°C. Metals can be measured provided they are painted or coated first to make them non-reflective.

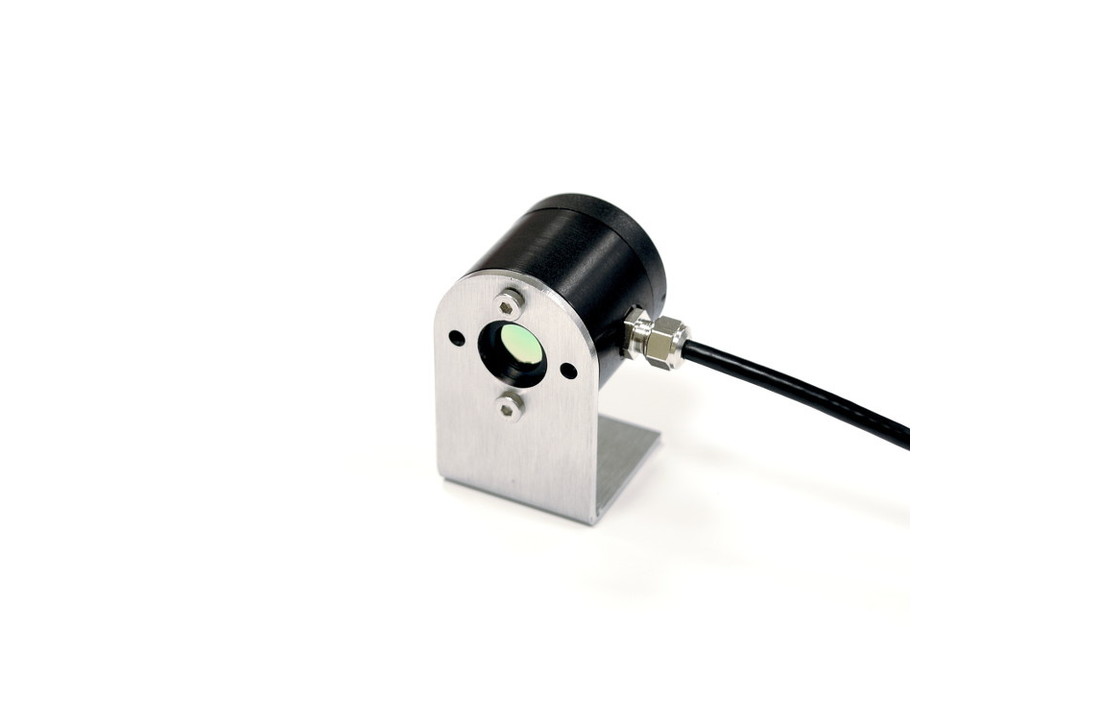

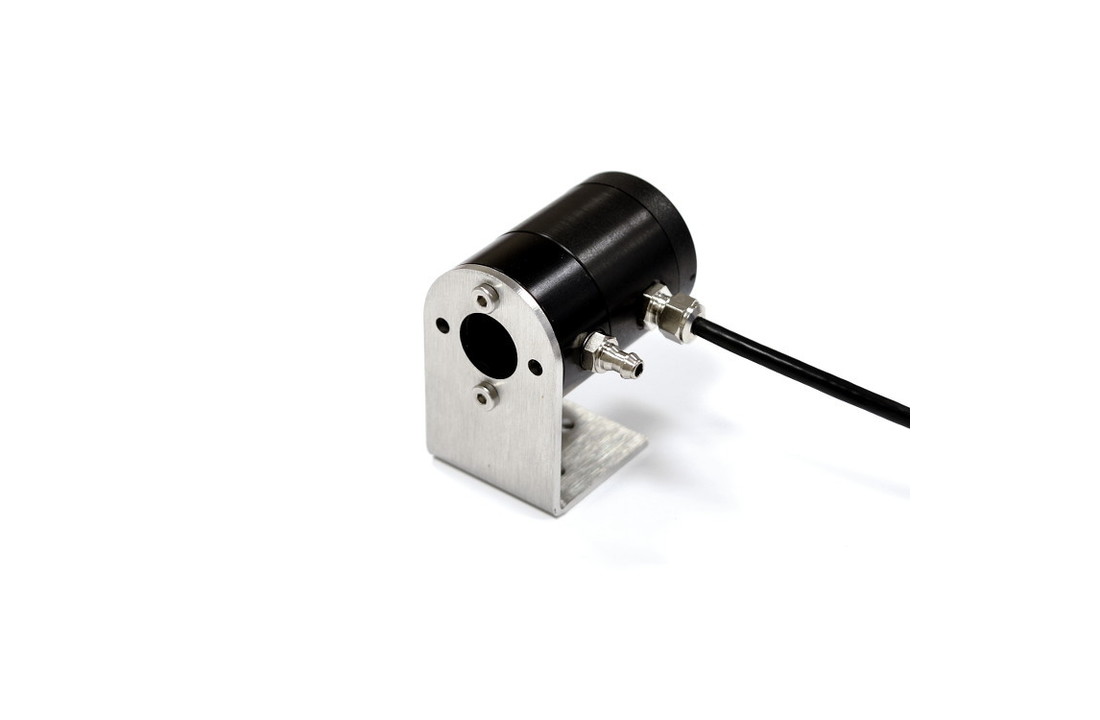

    PyroSigma sensors are compatible with the existing PyroNFC mounting bracket and air purge collar accessories.

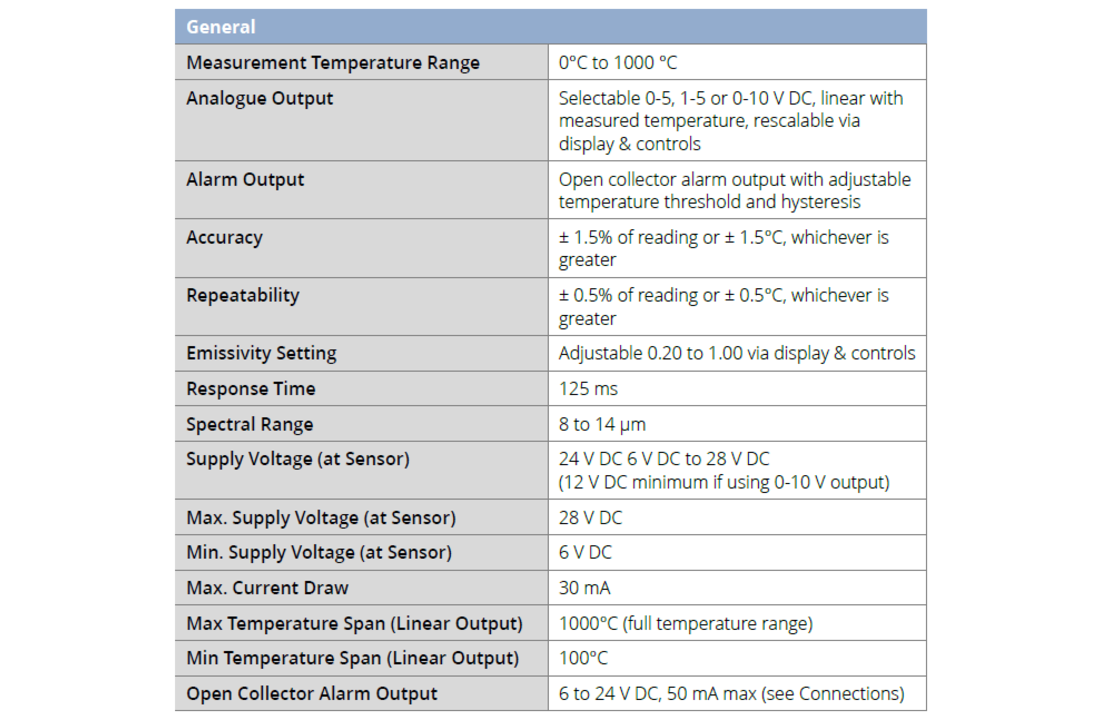

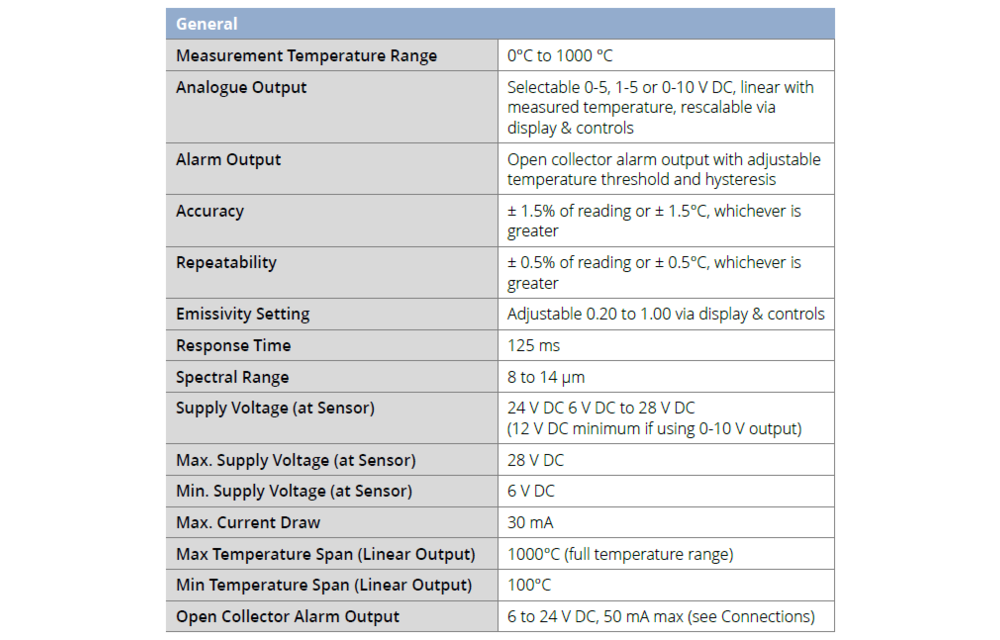

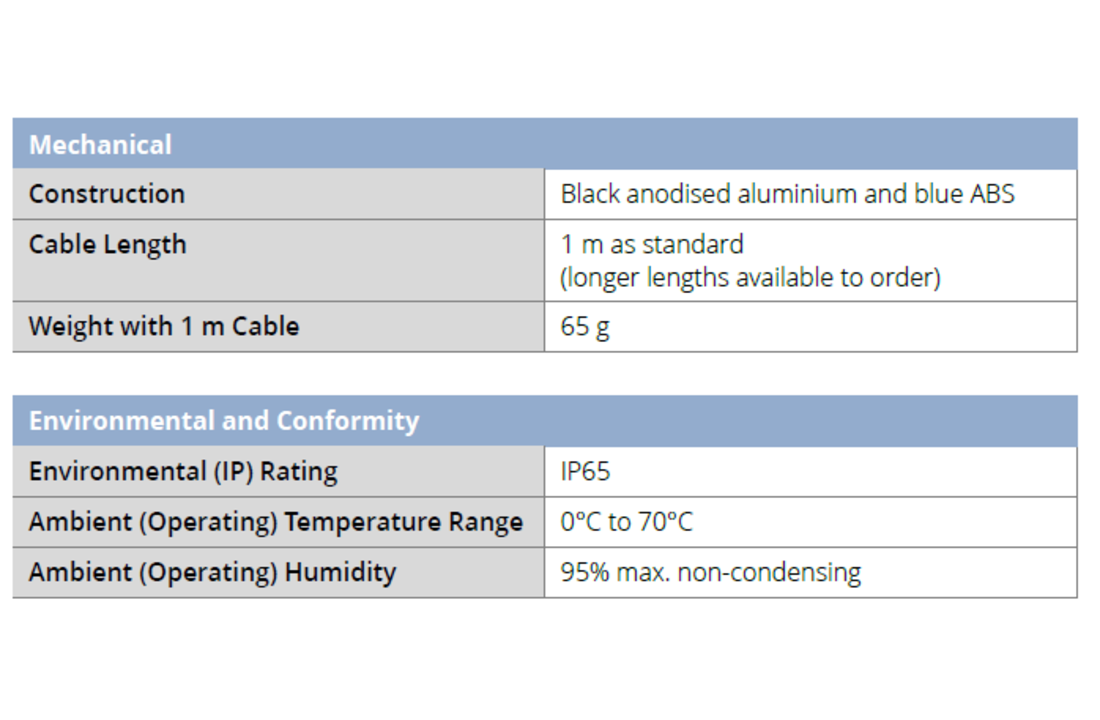

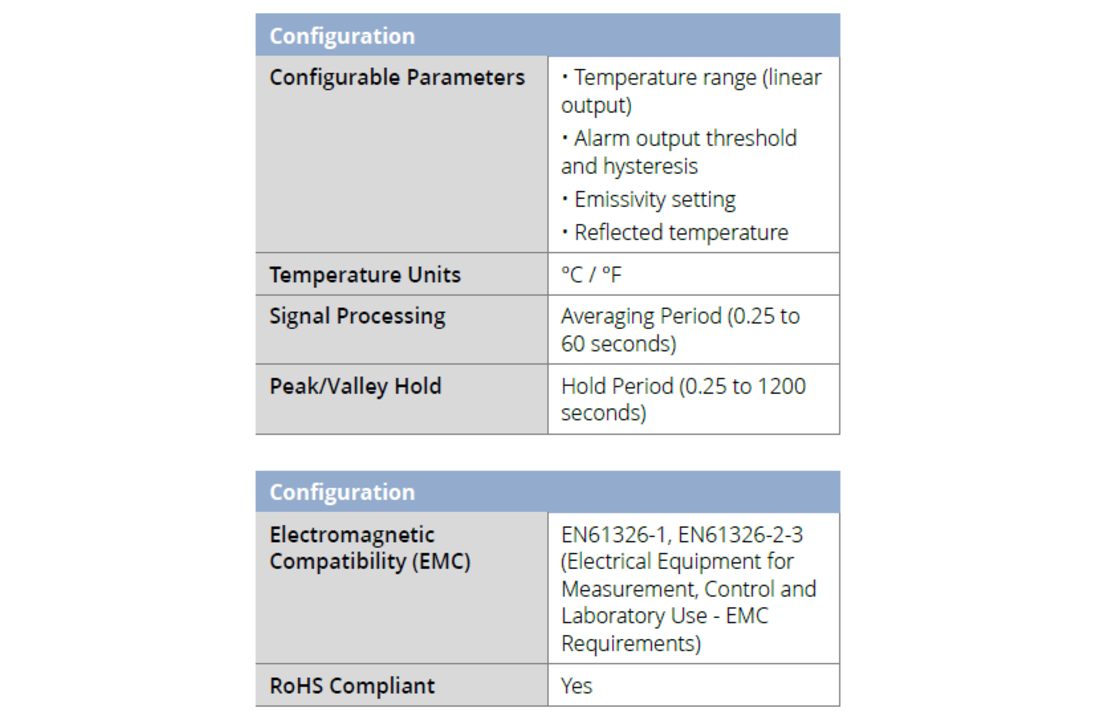

    Specifications

    Article number
    PS151-3M
    SKU
    PS151-3M
    PyroSigma Miniature Pyrometer with Built-In Display
    € 180,70
    € 169,86
    Excl. tax
    PyroSigma Miniature Pyrometer with Built-In Display
    PS151-3M
    Delivery time: 2 weeks
