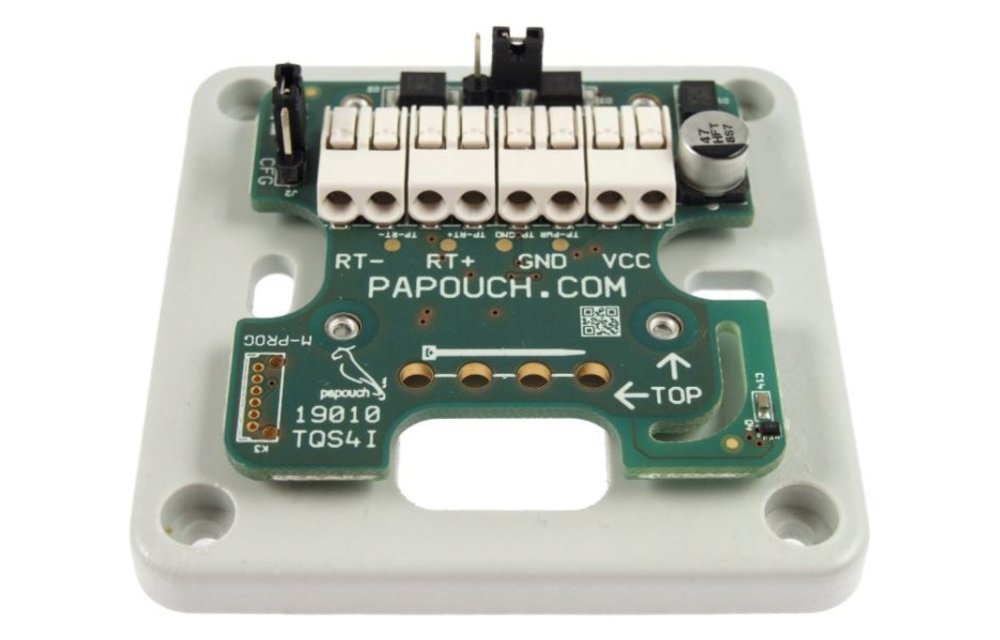

      TQS4 I: Indoor Thermometer with RS485

      € 44,- Excl. tax In stock
      TQS4 I: Indoor Thermometer with RS485... Show more
      • Reliable Partner ! Already 20 years at your service
      • Shipping from our own warehouse in The Netherlands
      • Secure shipping in EU with DHL Europlus
      • Questions : Call +31-(0)85-065 6325

      Product description

      Download Datasheet Download PDF

      Thermometer with measuring range -40 °C to 125 °C. Power voltage up to 36 V. Communication via RS485 bus using ModBus RTU or Spinel protocol. Interior style in open enclosure.

      TQS4 I is an intelligent digital thermometer for indoor ambient temperature measuring communicating via standard industrial bus RS485 (two wires). It can measure temperatures ranging from -40 to 125 °C with resolution of 0.1 °C. Measured value is sent directly in °C, so the value does not have to be converted. Thermometer does not need to be calibrated, it is ready to measure right upon connecting.

      Thermometer communicates on the RS485 using ModBus RTU or Spinel protocol. It can be on the same bus with other RS485 devices. One RS485 bus can have up to 32 deices (it can be even more). Both protocols are described in the documentation including examples. Spinel also has a simple ASCII format suitable for educational purposes.

      Protocols can be switched easily using the ModBus Configurator software.

      Features
      Thermometer with range from -40 °C to +125 °C
      Resolution 0.1°C
      Accuracy ±0.5°C within 0 to 65 °C, otherwise ±1 °C
      Power voltage input 4.5 to 36 V DC
      Low consumption - only 1.2 mA @ 12 V DC
      RS485 communication with up to 32 devices on a single bus (more available using a repeater)
      Interior make in an open enclosure
      Terminal connections using Wago 2060-452 terminals
      Wago 2060 lever included in the package


      Communication options
      Communication using ModBus RTU or Spinel protocols (spinel is default, complete documentation is available)
      Easy integration to Your systems thanks to complete documentation of protocols and standard ModBus RTU implementation
      Free Wix measuring software
      TDS Therm display can show temperature from three TQS4 thermometers
      Measurement using TME multi allows for Ethernet access of the data

      Connections
      TQS4 thermometers are easily connected to various systems. Either to most industrial systems using RS485 bus or using an Ethernet, WiFi, USB, RS232 or other converter. We are happy to help you choosing other components of your system.

      Converter: Connection to the PC's COM port (RS232) is carried out using TC485 converter. USB connection can be made using SB485L converter. Ethernet can be connected to your system using convertors GNOME485 or Edgar (with power output to power your thermometers).

      Power: One 12V DC power supply is suitable to power all thermometers.

      Wiring: We recommend using a standard UTP cabling to connect RS485. Use one twisted pair for the RS485 and others for power to minimize the power losses.

      Software: We supply Wix measuring software to measure, save and supervise all measured data from your thermometers. You can also easily embed TQS4 thermometers to your system - more options are described in the manual. We also supply Spinel.NET - Windows SDK for .NET environment (only with czech documentation).
      Other option is to measure directly via the Ethernet converter / concentrator: TME Multi.



      Differences between TQS3 and TQS4 thermometers
      If you already use TQS3 thermometers, here are the key differences between the old and the new:

      TQS4 has a jumper to select ModBus easily without using any software
      TQS4 uses a more modern sensor with better accuracy
      TQS4 has a fully backwards compatible communication protocol. The only missing part is the Dallas sensor ID (since the sensor is no longer Dallas)
      TQS4 has a broader power range (4.5 to 36 V DC) as opposed to the TQS3 (7 to 20 V DC)
      TQS4 has a lower consumption at 12V (1.2 mA) than TQS3 (2-3 mA)
      TQS4 has a slightly different measurement range (-40°C to 125 °C) from the TQS3 (55°C to 125 °C)
      TQS4 has a better accuracy (±0.5 °C ranging from 0 to 65 °C, otherwise ±1 °C) than TQS3 (±0,5 °C ranging from -10 to 85 °C, otherwise ±2 °C)
      TQS4_I has a new Wago 2060-452 terminal





      Specifications

      Article number
      TQS4_I_1
      SKU
      TQS4_I_1
