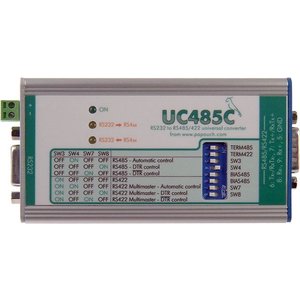

    UC485C: RS232 to RS485 / RS422 line converter - D-SUB9

    Brand: Papouch
    €113,20Excl. tax We dispatch within : 4-6 working days
    Converter RS232 to RS485/RS422. The module settings can be set using DIP switches. UC485 come s either double or triple isolated. RS485/RS422 line has overvoltage protection.... Show more
    • B2B Industrial Supplier since 1999
    • Shipping from our own warehouse in NL !
    • Shipping in EU with DPD Traceable
    • Reliable SSL & Secure Payments

    Product description

    Download Datasheet Download PDF

    The UC485 module converts an RS232 line to RS485 or RS422. The module settings can be set using DIP switches. UC485 come s either double or triple isolated. RS485/RS422 line has overvoltage protection. Two versions are availabe: D-SUB 9 connectors or a slip-on termination board on the RS485 side.

    Attention: This is the model with D-SUB9 connectors.

    Converter features

    • Line settings: RS485, RS422, and RS422 multimaster
    • Transmission speed up to 480 kBd
    • Direction control on the RS485 line can be automatic or by DTR signal (polarity can be set)
    • The RS485/422 line (including the grounding) is completely isolated from RS232 and from the power supply (this isolation is provided as standard for all types)
    • Optionally, grounding of the power supply and grounding of the RS232 line can be isolated from each other (this triple isolated version is available upon request)
    • The RS485/RS422 line has overvoltage protection
    • The ON and data flow statuses are indicated by LED indicators for easy installation and set-up
    • A built-in optional termination, including BIAS resistors (these rersistors define RS485 idle state voltage.
    • Power supply 7 to 40 V (also 36 to 75 V or 5 V is available upon request)
    • D-SUB 9 connectors or a slip-on termination board on the RS485 side
    • Dimensions 105 x 55 x 24 mm, DIN rail mount or wall mount is optional

    Specifications

    Article number
    UC485C
    SKU
    UC485C
