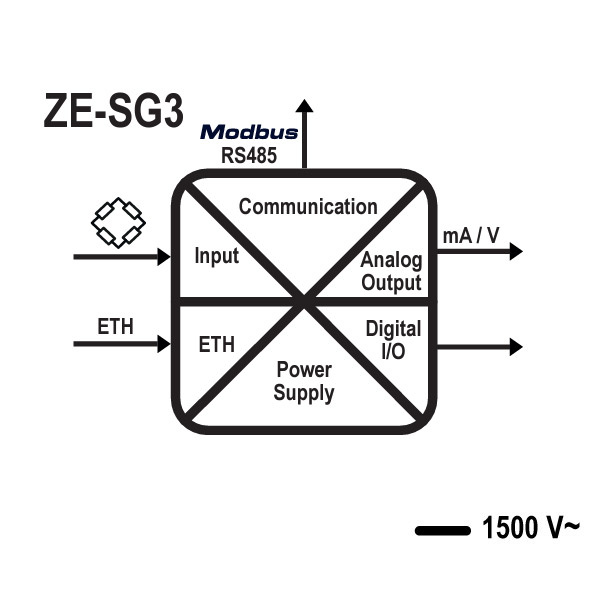

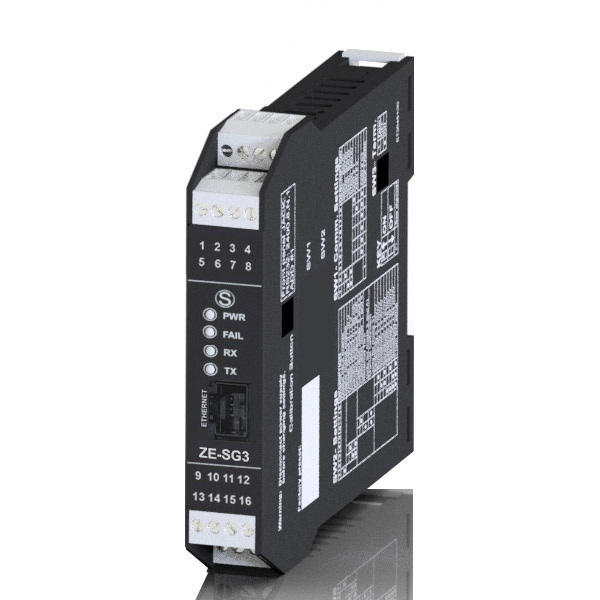

The ZE-SG3 is a load cell (strain gauge) converter complete with a 100 Mbit Ethernet port. Measurement, using a 4- or 6-wire technique, is available via ModBUS TCP/IP protocol (Ethernet), ModBUS RTU serial, and the analog output. The instrument can directly power the strain gauge. The load cell calibration is managed via web server or by EASY SETUP software in the factory calibration or sample weight mode.
ZE-SG3 includes advanced functions (piece counter, automatic tare reset, threshold alarm, firmware automatically updatable) and flexible measurement management mode (measurements available both in full and floating-point, measurement stabilized through noise filter, configurable resolution).
Very easy to program via USB and FREE PC software or Android software
Labview Drivers Available !
