    QuidoDuplex ETH

    € 261,- Excl. tax We dispatch within : 4-6 working days
    QuidoDuplex ETH is a set of two I/O modules for Ethernet (LAN, computer network) with a special firmware designed specificaly to transmit digital I/Os over Ethernet as an autonomous system.... Show more
    2 variations Quido Duplex ETH4, with 4 channels
    • Your reliable partner since 21 years
    • Shipping from our own warehouse !
    • Secure shipping in EU with DPD Traceable
    • Questions : Call +31-(0)85-065 6325

    Product description

    Download Datasheet Download PDF

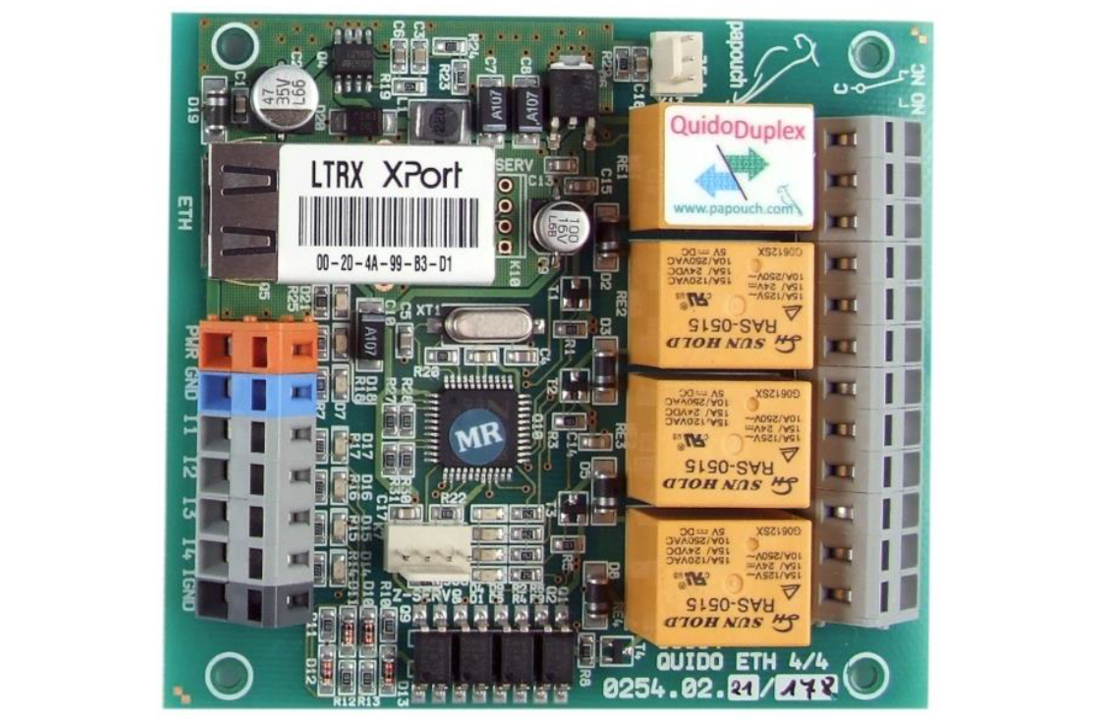

    QuidoDuplex ETH - Comes in 4 and 8 channel variants.

    QuidoDuplex ETH is a set of two I/O modules for Ethernet (LAN, computer network) with a special firmware designed specificaly to transmit digital I / Os over Ethernet as an autonomous system - no PCs or PLCs needed. If one input is turned on, the correspondance thing output on the other unit is ook turned on. Bi-directional.

    I/O module features

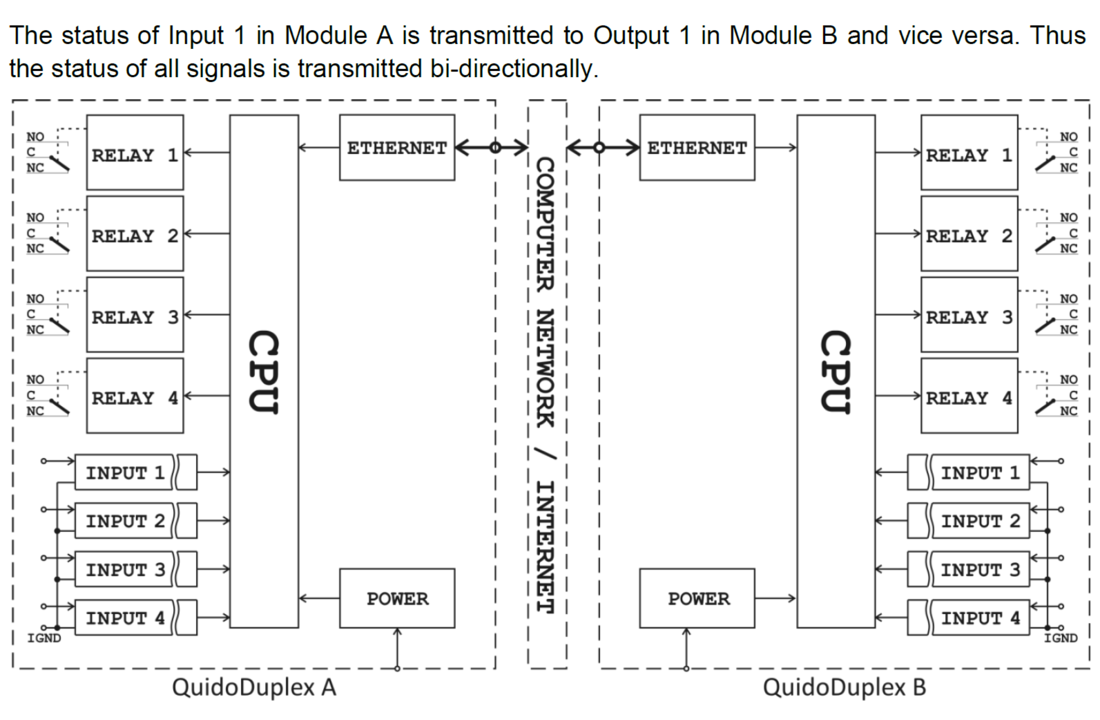

    • Digital two state signals are Transmitted from one to the other and the other way ook via Ethernet (or Internet).
    • Uses Local Area Network (LAN) or the Internet to transmit data, no need to place new cabling and the distance is here is virtually unlimited.
    • Wide power voltage range: 8 (12) to 30 V DC.
    • Set consists of two I / O modules Quido ETH 4/4 (or 8/8) with special firmware.
    • Attention: power supply units not included, sold separately, see related products

    Usage

    • Transmission of control states over greater distances (status indication).
    • Easy remote controll - bi-directional transmission can be used for control and monitoring.
    • Transmitting digital I / Os over Internet


    Specifications

    Article number
    QUIDO_DUP_ETH_4_1
    SKU
    QUIDO_DUP_ETH_4_1
